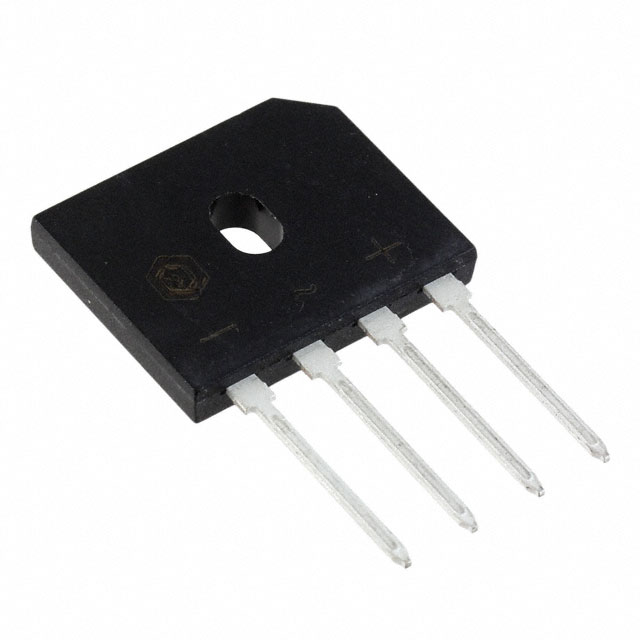

GBU4 Series

Catalog

BRIDGE RECT 1PHASE 400V 4A GBU

Part	Mounting Type	Diode Type	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Voltage - Peak Reverse (Max) [Max]	Voltage - Peak Reverse (Max)
GeneSiC Semiconductor GBU4G	Through Hole	Single Phase	5 µA	1.1 V	150 °C	-55 °C	Standard	4 A	GBU	4-SIP GBU	400 V
GeneSiC Semiconductor GBU4D	Through Hole	Single Phase	5 ÁA	1.1 V	150 °C	-55 °C	Standard	4 A	GBU	4-SIP GBU		200 V
GeneSiC Semiconductor GBU4B	Through Hole	Single Phase	5 µA	1.1 V	150 °C	-55 °C	Standard	4 A	GBU	4-SIP GBU	100 V
GeneSiC Semiconductor GBU4M	Through Hole	Single Phase	5 µA	1.1 V	150 °C	-55 °C	Standard	4 A	GBU	4-SIP GBU	1 kV
GeneSiC Semiconductor GBU4J	Through Hole	Single Phase	5 µA	1.1 V	150 °C	-55 °C	Standard	4 A	GBU	4-SIP GBU	600 V
GeneSiC Semiconductor GBU4A	Through Hole	Single Phase	5 µA	1.1 V	150 °C	-55 °C	Standard	4 A	GBU	4-SIP GBU	50 V
GeneSiC Semiconductor GBU4K	Through Hole	Single Phase	5 µA	1.1 V	150 °C	-55 °C	Standard	4 A	GBU	4-SIP GBU		800 V
