MICRF219A Series

Catalog

RF RECEIVER ASK 3.3V 16-PIN QSOP T/R

Part	Modulation or Protocol	Sensitivity	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Package / Case	Package / Case	Current - Receiving	Data Interface	Frequency [Min]	Frequency [Max]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate (Max) [Max]	Antenna Connector	Supplied Contents	For Use With/Related Products	Frequency	Type	Applications	Features
Microchip Technology MICRF219AYQS-TR	ASK OOK	-110 dBm	-40 °C	105 ░C	Surface Mount	0.154 in	16-SSOP	3.9 mm	6 mA	PCB Surface Mount	300 MHz	450 MHz	16-QSOP	3.6 V	3 V	10 kbps	PCB Surface Mount

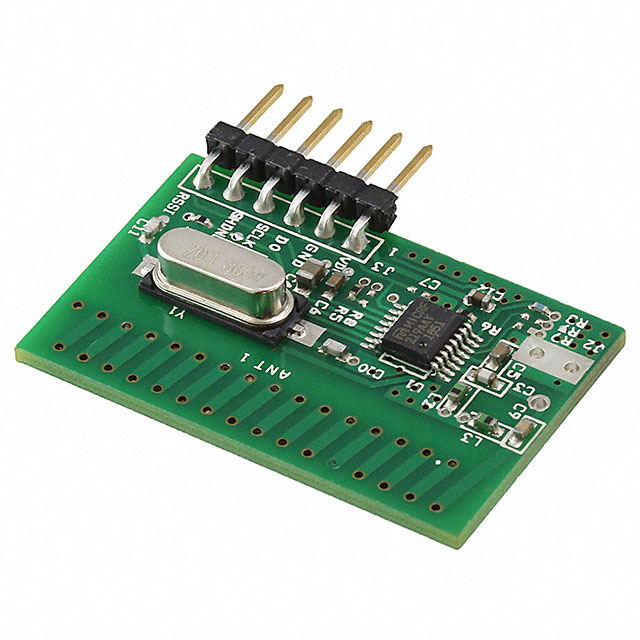

Microchip Technology MICRF219A-315-EV																		Board(s)	MICRF219A	315 MHz	Receiver
Microchip Technology MICRF219AAYQS-TR	ASK OOK	-112.5 dBm	-40 °C	105 ░C	Surface Mount	0.154 in	16-SSOP	3.9 mm	4.3 mA	PCB Surface Mount	300 MHz	450 MHz	16-QSOP	3.6 V	3 V		PCB Surface Mount					General Purpose	RSSI Equipped
Microchip Technology MICRF219AYQS	ASK OOK	-110 dBm	-40 °C	105 ░C	Surface Mount	0.154 in	16-SSOP	3.9 mm	6 mA	PCB Surface Mount	300 MHz	450 MHz	16-QSOP	3.6 V	3 V	10 kbps	PCB Surface Mount

Catalog

Key Features

• + -110dBm sensitivity at 1kbps with 0.1% BER

• + Auto-polling mode with bit checking

• + Supports bit rates up to 20kbps at 433.92MHz

• + 25dB image-reject mixer

• + No IF filter required

• + 60dB analog RSSI output range

• + 3.0V to 3.6V supply voltage range

• + 4.3mA supply current at 315MHz

• + 6.0mA supply current at 434MHz

• + 13µA supply current in sleep mode

• + 0.1µA supply current in shutdown mode

• + 16-pin QSOP package (4.9mm x 6.0mm)

• + -40°C to +105°C temperature range

• + 3kV HBM ESD Rating

Description

The MICRF219A is a 300MHz to 450MHz super-heterodyne, image-reject, RF receiver with automatic gain control, ASK/OOK demodulator, analog RSSI output, and integrated squelch features. It only requires a crystal and a minimum number of external components to implement. The MICRF219A is ideal for low-cost, low-power, RKE, TPMS, and remote actuation applications. The MICRF219A achieves -110dBm sensitivity at a bit rate of 1kbps with 0.1% BER. Four demodulator filter bandwidths are selectable in binary steps from 1625Hz to 13kHz at 433.92MHz, allowing the device to support bit rates up to 20kbps. The device operates from a supply voltage of 3.0V to 3.6V, and typically consumes 4.3mA of supply current at 315MHz and 6.0mA at 433.92MHz. A shutdown mode reduces supply current to 0.1µA typical. The squelch feature decreases the activity on the data output pin until valid bits are detected while maintaining overall receiver sensitivity.
