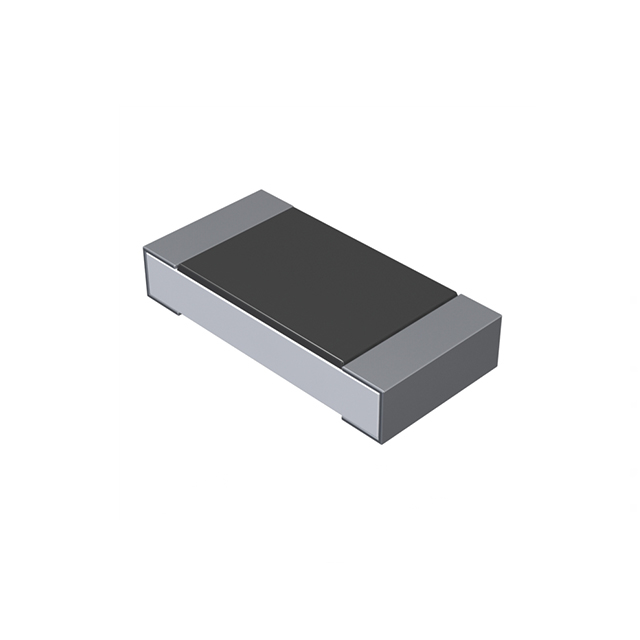

CR1206 Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES SMD 2.7M OHM 5% 1/4W 1206
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | Package / Case | Number of Terminations [custom] | Features | Power (Watts) | Power (Watts) | Tolerance | Resistance | Composition | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 5 % | 2.7 MOhms | Thick Film | 0.03 " | 0.75 mm | 200 ppm/°C |
 Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 5 % | 470 Ohms | Thick Film | 0.03 " | 0.75 mm | 200 ppm/°C |
Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 1 % | 6.04 kOhms | Thick Film | 0.03 " | 0.75 mm | 100 ppm/°C |
Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 1 % | 732 kOhms | Thick Film | 0.03 " | 0.75 mm | 100 ppm/°C |
Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 1 % | 110 kOhms | Thick Film | 0.03 " | 0.75 mm | 100 ppm/°C |
 Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 1 % | Thick Film | 0.03 " | 0.75 mm | 100 ppm/°C | |
 Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 5 % | 3.9 kOhms | Thick Film | 0.03 " | 0.75 mm | 200 ppm/°C |
Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 1 % | 160 Ohms | Thick Film | 0.03 " | 0.75 mm | 100 ppm/°C |
Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 1 % | 680 Ohms | Thick Film | 0.03 " | 0.75 mm | 100 ppm/°C |
Bourns Inc. | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 1206 (3216 Metric) | 2 | Moisture Resistant | 0.25 W | 0.25 W | 5 % | 33000 Ohms | Thick Film | 0.03 " | 0.75 mm | 200 ppm/°C |
