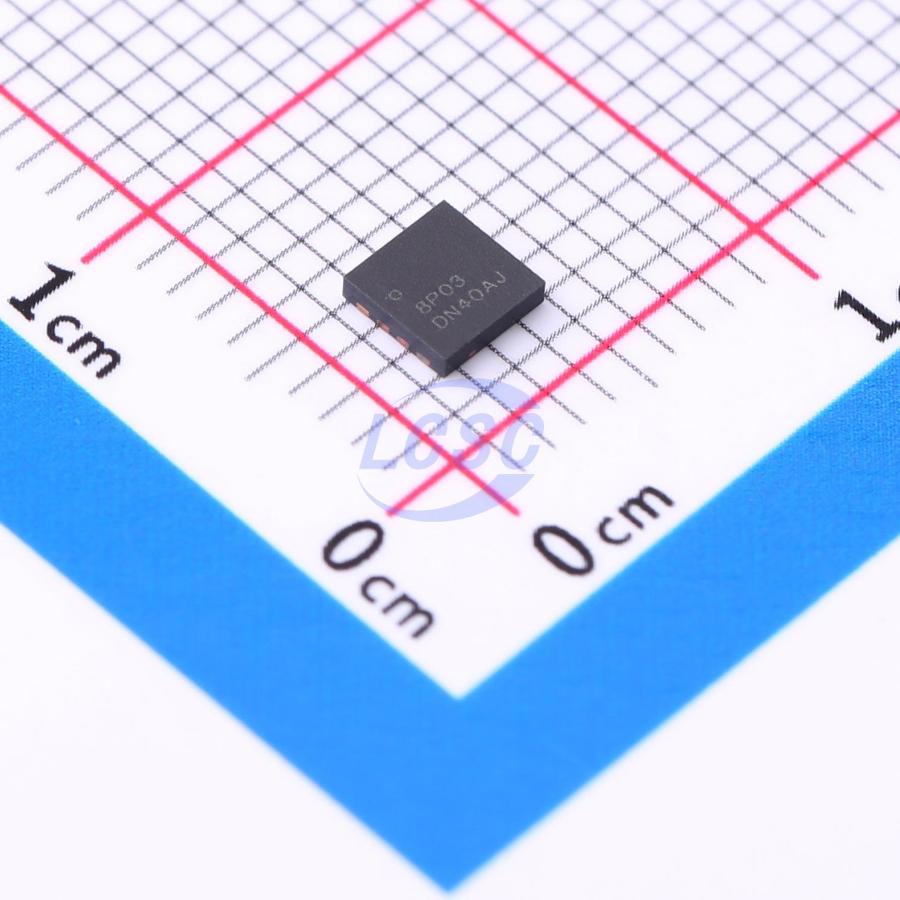

Power MOSFET, Single N-Channel, 40 V, 8.5 mOhms, 48 A
Power MOSFET, Single N-Channel, 40 V, 8.5 mOhms, 48 A
Power MOSFET, Single N-Channel, 40 V, 8.5 mOhms, 48 A
| Part | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Input Capacitance (Ciss) (Max) @ Vds | Operating Temperature [Min] | Operating Temperature [Max] | Vgs (Max) | Mounting Type | Package / Case | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs [Max] | Power Dissipation (Max) | Rds On (Max) @ Id, Vgs | FET Type | Technology | Vgs(th) (Max) @ Id | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 30 V | 22 A 96 A | 5600 pF | -55 °C | 150 °C | 25 V | Surface Mount | 8-PowerWDFN | 4.5 V 10 V | 134 nC | 2.36 W 50 W | 3.8 mOhm | P-Channel | MOSFET (Metal Oxide) | 3 V | 8-PQFN (3.3x3.3) |
 ON Semiconductor | 40 V | 14 A 48 A | 625 pF | -55 °C | 175 ░C | 20 V | Surface Mount | 8-PowerWDFN | 10 V | 10 nC | 3.1 W 38 W | 8.5 mOhm | N-Channel | MOSFET (Metal Oxide) | 3.5 V | 8-WDFN (3.3x3.3) |
