04028DA Series

Catalog

DC AXIAL FAN, 12 V, SQUARE, 40 MM, 28 MM, BALL BEARING, 13.1 CFM

Part	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	RPM	Noise	Bearing Type	Power (Watts)	Fan Type	Width	Voltage - Rated	Static Pressure	Features	Air Flow	Termination Leads Count	Termination Type	Termination	Lifetime	Material - Frame	Voltage Range (Min)	Voltage Range (Max)	Current Rating	Material - Blade	Weight

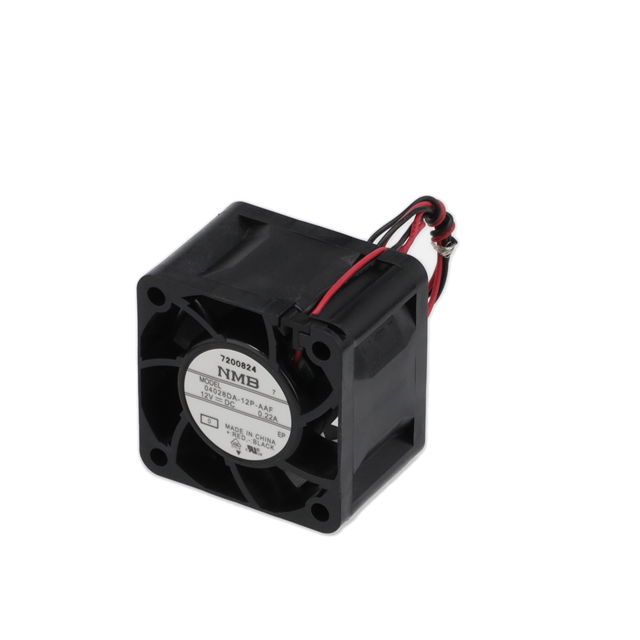

NMB TECHNOLOGIES 04028DA-12P-AAF-0	158 °F	14 °F	40 mm	Square	40 mm	12000 RPM	45 dB	Ball	2.16 W	Tubeaxial	28 mm	12 VAC	0.92 in H2O	Auto Restart	13.1 CFM	2 leads	Wire Leads	2 Wire Leads	70000 Hrs	Plastic	10.8 VDC	13.2 VDC	0.18 A	Plastic
NMB TECHNOLOGIES 04028DA-12M-AAF-0	158 °F	14 °F	40 mm	Square	40 mm	10000 RPM	44.5 dB	Ball	3.12 W	Tubeaxial	28 mm	12 VAC	0.587 in H2O	Auto Restart	17 CFM	2 leads	Wire Leads	2 Wire Leads	70000 Hrs	Plastic	7 V	13.2 VDC	0.26 A	Plastic

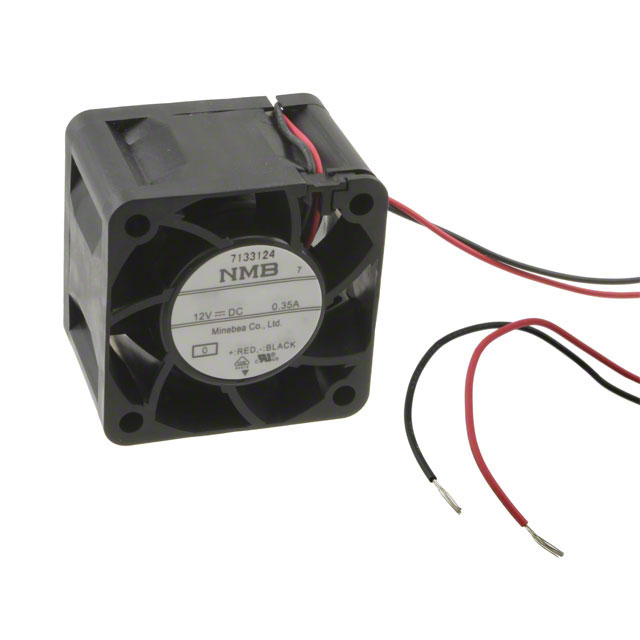

NMB TECHNOLOGIES 04028DA-12Q-AAF-0	158 °F	14 °F	40 mm	Square	40 mm	15000 RPM	49.5 dB	Ball	3.48 W	Tubeaxial	28 mm	12 VAC	1.37 in H2O	Auto Restart	16.6 CFM	2 leads	Wire Leads	2 Wire Leads	70000 Hrs	Plastic	10.8 VDC	13.2 VDC	0.29 A	Plastic	0.117 lb

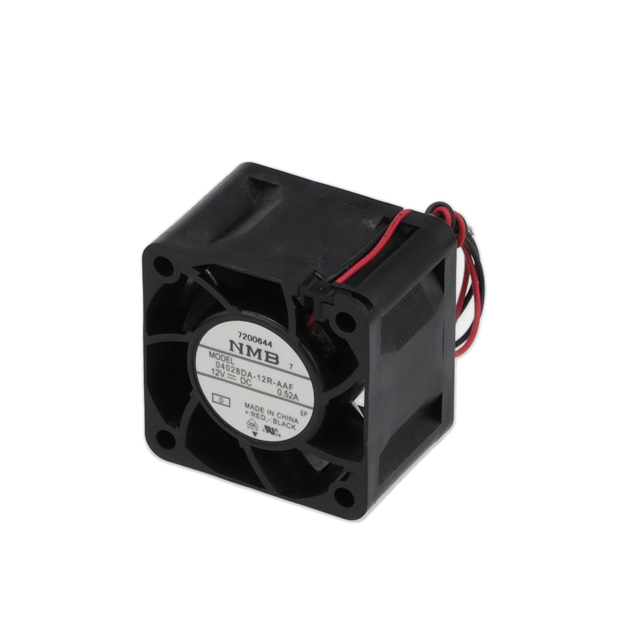

NMB TECHNOLOGIES 04028DA-12R-AAF-0	158 °F	14 °F	40 mm	Square	40 mm	22000 RPM	62.8 dB	Ball	10.2 W	Tubeaxial	28 mm	12 VAC	2.99 in H2O	Auto Restart	20.6 CFM	2 leads	Wire Leads	2 Wire Leads	70000 Hrs	Plastic	10.8 VDC	13.2 VDC	0.85 A	Plastic
NMB TECHNOLOGIES 04028DA-12N-ATF-0	158 °F	14 °F	40 mm	Square	40 mm			Ball		Tubeaxial	28 mm	12 VAC		Auto Restart Speed Sensor (Tach)		3	Wire Leads	3 Wire Leads	70000 Hrs	Plastic				Plastic

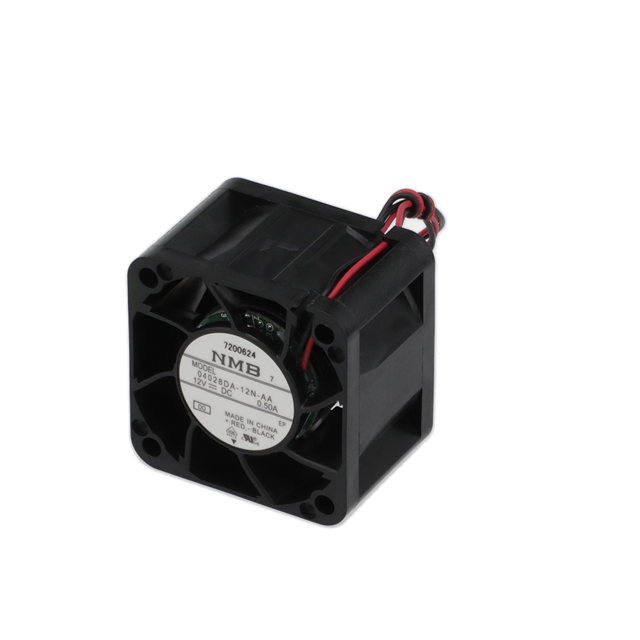

NMB TECHNOLOGIES 04028DA-12N-AAF-0			40 mm	Square	40 mm			Ball		Tubeaxial	28 mm	12 VAC		Auto Restart		2 leads	Wire Leads	2 Wire Leads		Plastic				Plastic
NMB TECHNOLOGIES 04028DA-12Q-ATF-0	158 °F	14 °F	40 mm	Square	40 mm	15000 RPM	49.5 dB	Ball	3.5 W	Tubeaxial	28 mm	12 VAC	1.37 in H2O	Auto Restart Speed Sensor (Tach)	16.6 CFM	3	Wire Leads	3 Wire Leads	70000 Hrs	Plastic	10.8 VDC	13.2 VDC	0.29 A	Plastic

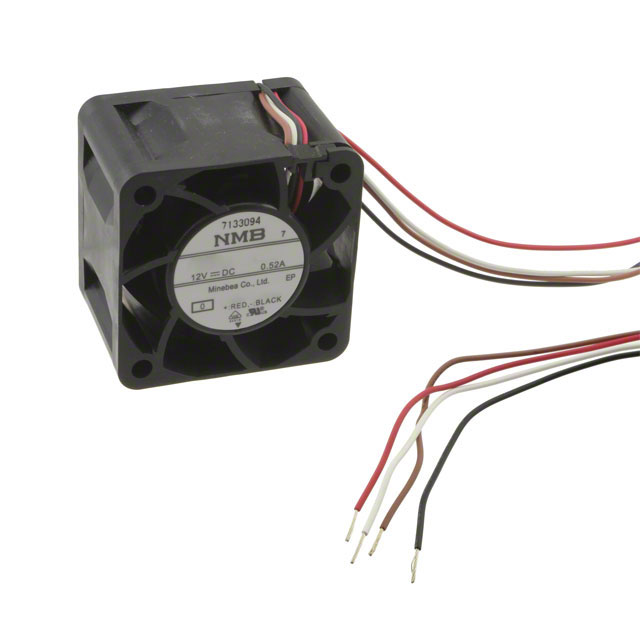

NMB TECHNOLOGIES 04028DA-12R-AUF-0	158 °F	14 °F	40 mm	Square	40 mm	18000 RPM	54.5 dB	Ball	5.16 W	Tubeaxial	28 mm	12 VAC	1.93 in H2O	Auto Restart PWM Control Speed Sensor (Tach)	20.1 CFM	4 leads	Wire Leads	4 Wire Leads	70000 Hrs	Plastic	10.8 VDC	13.2 VDC	430 mA	Plastic	0.117 lb
NMB TECHNOLOGIES 04028DA-12R-ALF-0	158 °F	14 °F	40 mm	Square	40 mm	18000 RPM	54.5 dB	Ball	5.16 W	Tubeaxial	28 mm	12 VAC	1.93 in H2O	Auto Restart Locked Rotor Sensor	20.1 CFM	2 leads	Wire Leads	2 Wire Leads	70000 Hrs	Plastic	10.8 VDC	13.2 VDC	430 mA	Plastic
NMB TECHNOLOGIES 04028DA-12R-ATF-0	158 °F	14 °F	40 mm	Square	40 mm	18000 RPM	54.5 dB	Ball	5.16 W	Tubeaxial	28 mm	12 VAC	1.93 in H2O	Auto Restart PWM Control Speed Sensor (Tach)	20.1 CFM	4 leads	Wire Leads	4 Wire Leads	70000 Hrs	Plastic	10.8 VDC	13.2 VDC	430 mA	Plastic
