NTNS3A91PZ Series

Single P Channel Small Signal MOSFET -20V, -223mA, 1.6Ω

Catalog

Single P Channel Small Signal MOSFET -20V, -223mA, 1.6Ω

Part	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Mounting Type	Package / Case	Power Dissipation (Max)	Vgs (Max)	FET Type	Technology	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Power Dissipation (Max) [Max]

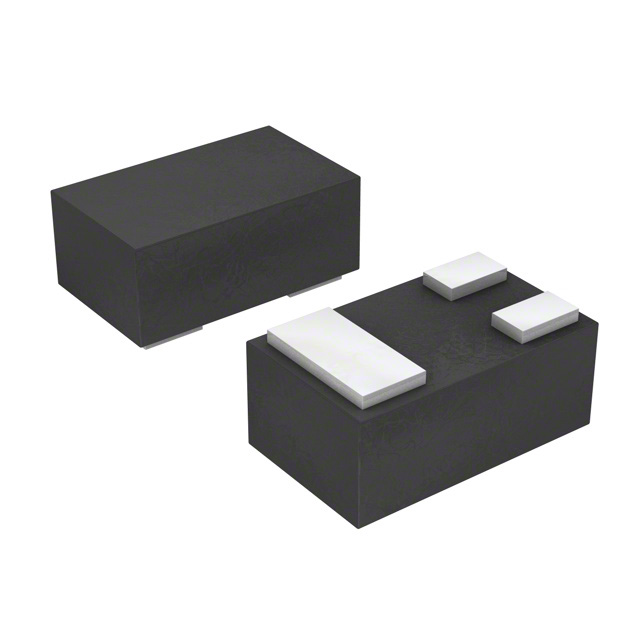

ON Semiconductor NTNS3A67PZT5G	SOT-883 XDFN3	1	0.6	Surface Mount	3-XFDFN

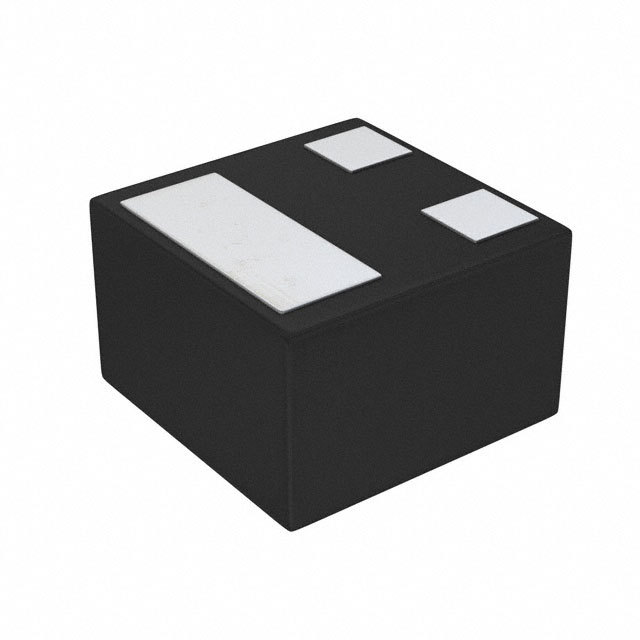

ON Semiconductor NTNS3A91PZT5G	3-XLLGA (0.62x0.62)			Surface Mount	3-XFLGA	121 mW	8 V	P-Channel	MOSFET (Metal Oxide)	1 V	1.5 V 4.5 V	41 pF	1.6 Ohm	223 mA	1.1 nC	-55 °C	150 °C	20 V
ON Semiconductor NTNS3A65PZT5G	SOT-883 XDFN3	1	0.6	Surface Mount	3-XFDFN		8 V	P-Channel	MOSFET (Metal Oxide)	1 V	1.5 V 4.5 V	44 pF	1.3 Ohm	281 mA	1.1 nC	-55 °C	150 °C	20 V	155 mW

Single P Channel Small Signal MOSFET -20V, -223mA, 1.6Ω

• Ultra Low Profile SOT883 (XDFN3) 1.0 x 0.6 x 0.4 mm

• Low RDS(on)Solution in the Ultra Small 1.0 x 0.6 mm Package

• 1.5 V Gate Drive

• RoHS Compliant

Small Signal MOSFET−20 V, −281 mA, Single P−Channel,SOT−883 (XDFN3) 1.0 x 0.6 x 0.4 mm Package
