HIP2100 Series

Manufacturer: Renesas Electronics Corporation

Catalog

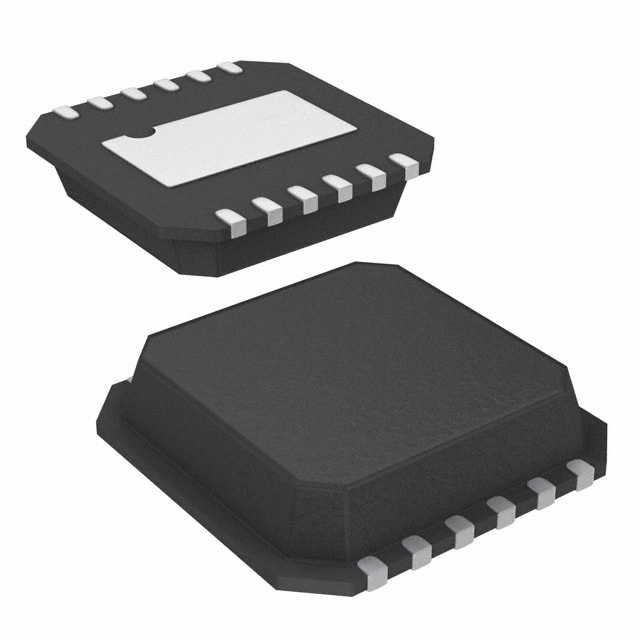

IC GATE DRVR HALF-BRIDGE 12DFN

Part	High Side Voltage - Max (Bootstrap) [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Logic Voltage - VIL, VIH	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Channel Type	Number of Drivers	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Mounting Type	Supplier Device Package	Driven Configuration	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
Renesas Electronics Corporation HIP2100IR4ZT	114 V	9 V	14 V	4 V 7 V	-55 °C	150 °C	Non-Inverting	Independent	2	10 ns	10 ns	12-VFDFN Exposed Pad	Surface Mount	12-DFN (4x4)	Half-Bridge	N-Channel MOSFET	2 A	2 A
Renesas Electronics Corporation HIP2100IBZ	114 V	9 V	14 V	4 V 7 V	-55 °C	150 °C	Non-Inverting	Independent	2	10 ns	10 ns	8-SOIC	Surface Mount	8-SOIC	Half-Bridge	N-Channel MOSFET	2 A	2 A	3.9 mm	0.154 in
Renesas Electronics Corporation HIP2100IBT	114 V	9 V	14 V	4 V 7 V	-55 °C	150 °C	Non-Inverting	Independent	2	10 ns	10 ns	8-SOIC	Surface Mount	8-SOIC	Half-Bridge	N-Channel MOSFET	2 A	2 A	3.9 mm	0.154 in
Renesas Electronics Corporation HIP2100IB	114 V	9 V	14 V	4 V 7 V	-55 °C	150 °C	Non-Inverting	Independent	2	10 ns	10 ns	8-SOIC	Surface Mount	8-SOIC	Half-Bridge	N-Channel MOSFET	2 A	2 A	3.9 mm	0.154 in
Renesas Electronics Corporation HIP2100IR4Z	114 V	9 V	14 V	4 V 7 V	-55 °C	150 °C	Non-Inverting	Independent	2	10 ns	10 ns	12-VFDFN Exposed Pad	Surface Mount	12-DFN (4x4)	Half-Bridge	MOSFET (N-Channel)	2 A	2 A
Renesas Electronics Corporation HIP2100EIBT	114 V	9 V	14 V	4 V 7 V	-55 °C	150 °C	Non-Inverting	Independent	2	10 ns	10 ns	8-SOIC	Surface Mount	8-SOIC-EP	Half-Bridge	N-Channel MOSFET	2 A	2 A			0.154 in	3.9 mm
Renesas Electronics Corporation HIP2100EIB	114 V	9 V	14 V	4 V 7 V	-55 °C	150 °C	Non-Inverting	Independent	2	10 ns	10 ns	8-SOIC	Surface Mount	8-SOIC-EP	Half-Bridge	N-Channel MOSFET	2 A	2 A			0.154 in	3.9 mm
