LAN9500A Series

USB 2.0 to 10/100 Ethernet Bridge

Catalog

USB 2.0 to 10/100 Ethernet Bridge

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Voltage - Supply	Function	Package / Case	Interface	Standards	Protocol	Supplier Device Package	Contents	Utilized IC / Part	Type	Supplied Contents	Primary Attributes	Secondary Attributes
Microchip Technology LAN9500I-ABZJ-TR	85 °C	-40 °C	78 mA	3.3 V	Bridge USB to Ethernet	56-VFQFN Exposed Pad	USB	10/100 Base-T/TX PHY USB 2.0	Ethernet	56-QFN (8x8)

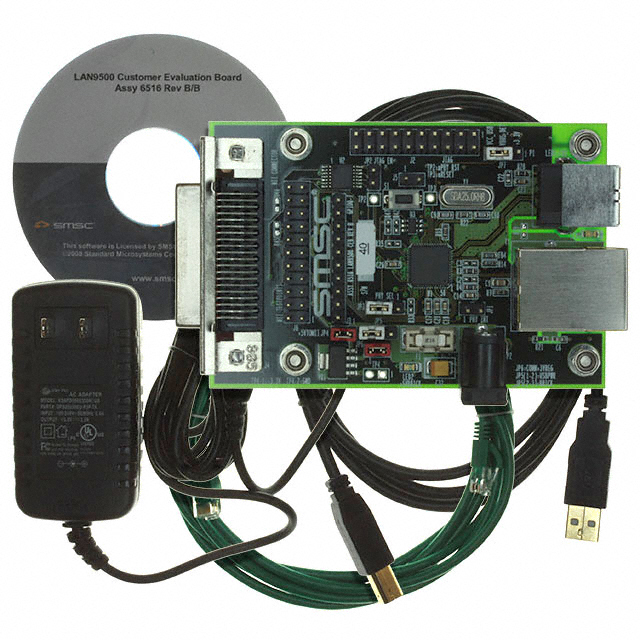

Microchip Technology EVB-LAN9500A-MII					Ethernet Controller (PHY and MAC)						Board(s)	LAN9500	Interface	Board(s)	Single Chip Hi-Speed USB to 10/100 Ethernet	100BASE-TX 10BASE-T Full Duplex HP Auto-MDIX Support

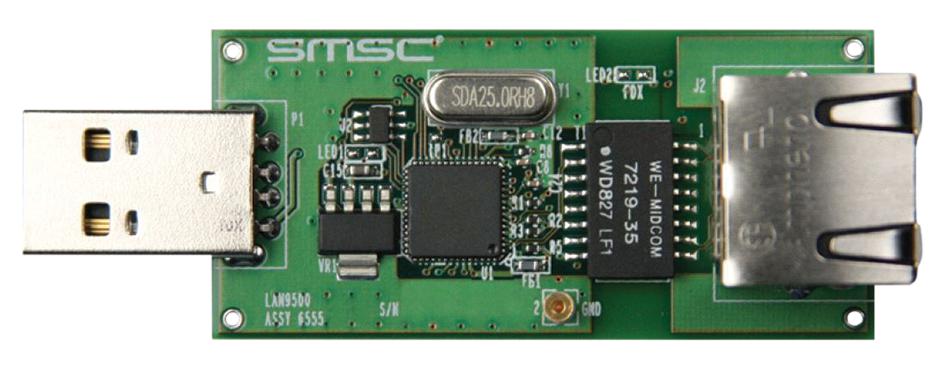

Microchip Technology EVB-LAN9500A-LC					Ethernet Controller (PHY and MAC)						Board(s)		Interface	Board(s)	Single Chip Hi-Speed USB to 10/100 Ethernet	On-Board LEDs
Microchip Technology LAN9500I-ABZJ	85 °C	-40 °C	78 mA	3.3 V	Bridge USB to Ethernet	56-VFQFN Exposed Pad	USB	10/100 Base-T/TX PHY USB 2.0	Ethernet	56-QFN (8x8)
Microchip Technology LAN9500AI-ABZJ-TR	85 °C	-40 °C		1.2 V 2.5 V 3.3 V	Bridge USB to Ethernet	56-VFQFN Exposed Pad	USB	10/100 Base-T/TX PHY USB 2.0	Ethernet	56-QFN (8x8)
Microchip Technology LAN9500A-ABZJ	70 °C	0 °C		1.2 V 2.5 V 3.3 V	Bridge USB to Ethernet	56-VFQFN Exposed Pad	USB	10/100 Base-T/TX PHY USB 2.0	Ethernet	56-QFN (8x8)
Microchip Technology LAN9500A-ABZJ-TR	70 °C	0 °C		1.2 V 2.5 V 3.3 V	Bridge USB to Ethernet	56-VFQFN Exposed Pad	USB	10/100 Base-T/TX PHY USB 2.0	Ethernet	56-QFN (8x8)

Catalog

USB 2.0 to 10/100 Ethernet Bridge

Key Features

• Single-chip, Hi-Speed USB 2.0 to 10/100 Ethernet controller

•

• ±8kV HBM and ±15kV air discharge ESD protection

•

• Requires only a single 25MHz crystal

•

• EEPROM-less design option helps to reduce BOM costs

•

• Implements reduced power operating modes including enhanced energy detect power-down

•

• Supports numerous power management features including Wake-On LAN, Magic Packet™ and Link Status Change

•

• External MII and Turbo MII (available for speeds up to 200Mbps)

•

• LAN9500A implements Microchip's proprietary NetDetach™ technology for lower hardware power consumption

•

• LAN9500 and LAN9500A are drop-in compatible

•

• 8x8mm, 56-pin QFN package well-suited for compact designs

•

• Industrial temperature range options available (LAN9500i/9500Ai)

•

• Applications:* PC Docking Stations

• * Netbooks and Ultra-mobile PCs (UMPCs)

• * Mobile Internet Devices (MIDs)

• * Digital TVs/Video Recorders/Set-top Boxes

• * Network Printers

• * Gaming Consoles

• * Stand-alone USB to Ethernet Dongles

• * Embedded Systems

• * Industrial Applications

Description

Microchip's LAN9500 and LAN9500A Hi-Speed USB 2.0 to 10/100 Ethernet controllers provide a high-performance, cost-competitive USB to Ethernet connectivity solution containing an integrated 10/100 Ethernet PHY, Hi-Speed USB 2.0 PHY, Hi-Speed USB 2.0 controller, 10/100 Ethernet MAC, TAP controller, EEPROM controller and FIFO controller in a compact 56-pin QFN package. The LAN9500/9500A support ±8kV HBM and ±15kV air discharge ESD protection and require only a single 25MHz crystal, which helps to keep BOM costs for external components to a minimum. An external MII and Turbo MII interface provides support for Fast Ethernet, HomePlug® and HomePNA™ (HPNA) functionality. These devices feature Microchip's proprietary NetDetach™ and UniClock™ technologies. NetDetach allows for up to a 25% reduction in system power by enabling the host CPU to enter a low-power state when Ethernet is inactive. UniClock simplifies the clocking scheme and reduces system BOM costs by using a single 25MHz crystal for both USB and Ethernet connectivity – without the need for additional components when adding USB hubs. Both devices are available in commercial (0°C to 70°C) and industrial temperature range (-40°C to 85°C) options. Microchip's complimentary and confidential [MicroCHECK](https://www.microchip.com/en-us/support/design-help/design-check-services) design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account.
