LDL1117 Series

Catalog

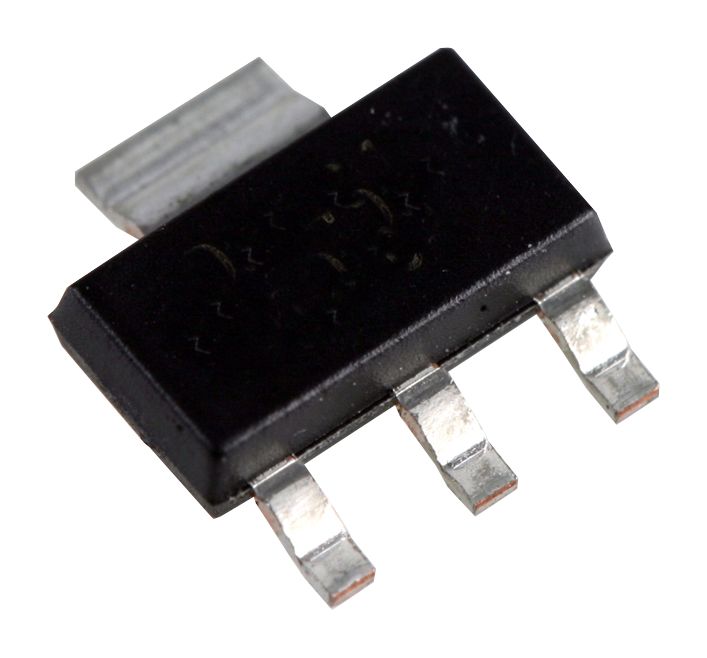

LDO VOLTAGE REGULATOR, FIXED, 2.5 V TO 18 V, SINGLE OUTPUT, 350 MV DROP, 3.3 V, 1.2 A, 3 PINS, SOT-2… MORE

Part	Supplier Device Package	Protection Features	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	PSRR [Max]	PSRR [Min]	Number of Regulators	Current - Output	Voltage Dropout (Max)	Voltage - Input (Max) [Max]
STMicroelectronics LDL1117S33R	SOT-223	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.5 mA	3.3 V	TO-261-4 TO-261AA	Surface Mount	-40 C	125 °C	Positive	87 dB	65 dB	1	1.2 A	0.6 V	18 V
STMicroelectronics LDL1117S15R	SOT-223	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.5 mA	1.5 V	TO-261-4 TO-261AA	Surface Mount	-40 C	125 °C	Positive	87 dB	65 dB	1	1.2 A	0.6 V	18 V
STMicroelectronics LDL1117S30R	SOT-223	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.5 mA	3 V	TO-261-4 TO-261AA	Surface Mount	-40 C	125 °C	Positive	87 dB	65 dB	1	1.2 A	0.6 V	18 V
STMicroelectronics LDL1117S50R	SOT-223	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.5 mA	5 V	TO-261-4 TO-261AA	Surface Mount	-40 C	125 °C	Positive	87 dB	65 dB	1	1.2 A	0.6 V	18 V
STMicroelectronics LDL1117S12R	SOT-223	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.5 mA	1.185 V	TO-261-4 TO-261AA	Surface Mount	-40 C	125 °C	Positive	87 dB	65 dB	1	1.2 A	0.6 V	18 V
STMicroelectronics LDL1117S18R	SOT-223	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.5 mA	1.8 V	TO-261-4 TO-261AA	Surface Mount	-40 C	125 °C	Positive	87 dB	65 dB	1	1.2 A	0.6 V	18 V
STMicroelectronics LDL1117S25R	SOT-223	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.5 mA	2.5 V	TO-261-4 TO-261AA	Surface Mount	-40 C	125 °C	Positive	87 dB	65 dB	1	1.2 A	0.6 V	18 V
