AD7770 Series
Manufacturer: Analog Devices
Beta
⌘K
8-CHANNEL, 24-BIT, 32 KSPS SIMULTANEOUS SAMPLING ADC
| Part | Architecture | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Reference Type | Supplier Device Package | Number of Inputs | Features | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Number of A/D Converters | Number of Bits | Package / Case | Sampling Rate (Per Second) | Data Interface | Ratio - S/H:ADC | Configuration | Mounting Type | Utilized IC / Part | Supplied Contents | Input Range | Power (Typ) @ Conditions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Sigma-Delta | Differential Single Ended | 125 °C | -40 °C | External Internal | 64-LFCSP (9x9) | 8 | PGA Simultaneous Sampling | 3.6 V | 2.2 V | 8 | 24 | 64-WFQFN Exposed Pad CSP | 32 k per second | SPI | 1:1 | MUX-PGA-ADC | Surface Mount | ||||

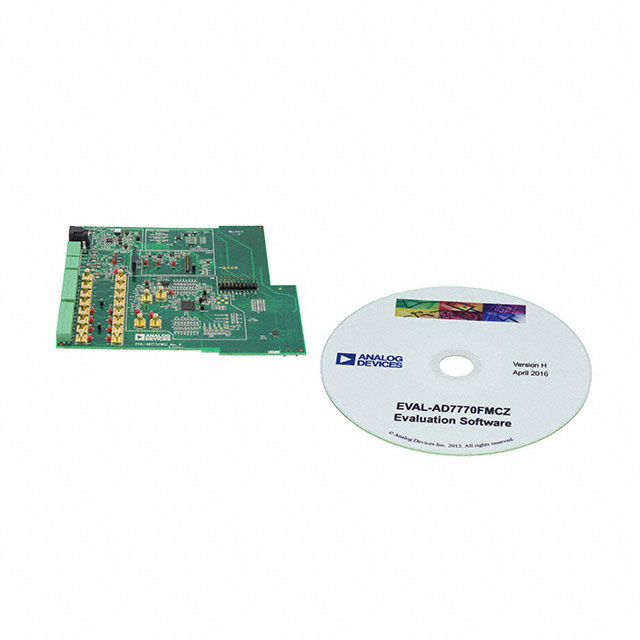

 Analog Devices | 8 | 24 | 32 k per second | SPI | AD7770 | Board(s) | ±VREF/gain | 117 mW | ||||||||||||||
Analog Devices | Sigma-Delta | Differential Single Ended | 125 °C | -40 °C | External Internal | 64-LFCSP (9x9) | 8 | PGA Simultaneous Sampling | 3.6 V | 2.2 V | 8 | 24 | 64-WFQFN Exposed Pad CSP | 32 k per second | SPI | 1:1 | MUX-PGA-ADC | Surface Mount |
