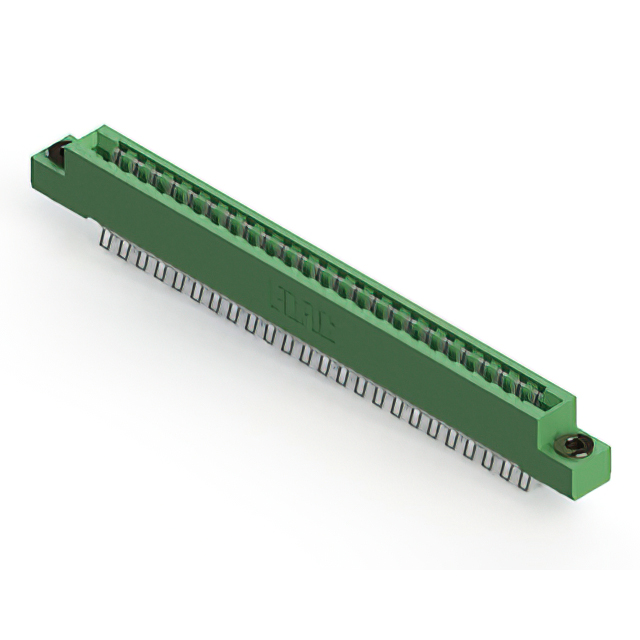

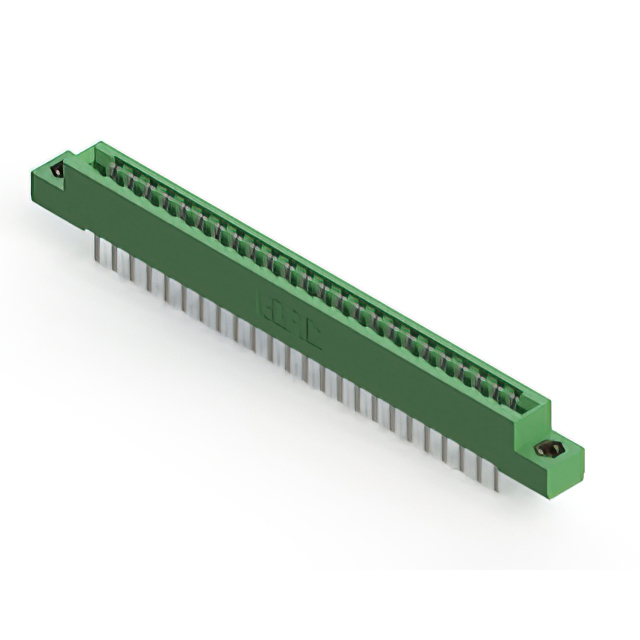

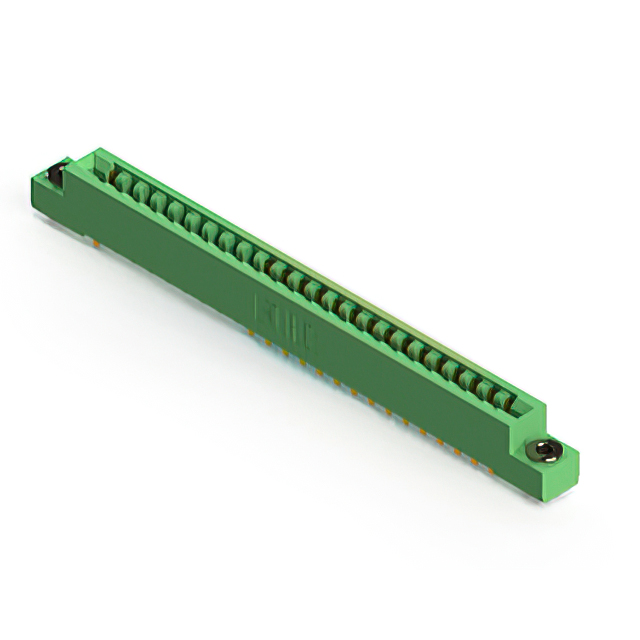

807-048 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 48POS 0.156
...
| Part | Material - Insulation | Termination Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Contact Finish | Contact Material | Number of Positions | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows [custom] | Gender | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Color | Card Type | Mounting Type | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Copper Alloy | 48 | Dual | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 2 | Female | 24 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 125 °C | -40 C | Green | Non Specified - Dual Edge | Through Hole | Semi Bellows | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Copper Alloy | 48 | Dual | 0.25 Ám | 10 Áin | Wire Wrap | 2 | Female | 24 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 125 °C | -40 C | Green | Non Specified - Dual Edge | Through Hole | Semi Bellows | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Tin | Copper Alloy | 48 | Single | Solder | 2 | Female | 24 | 125 °C | -40 C | Green | Non Specified - Dual Edge | Right Angle Through Hole | Semi Bellows | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Copper Alloy | 48 | Dual | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 2 | Female | 24 | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 C | Green | Non Specified - Dual Edge | Through Hole | Semi Bellows | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Tin | Copper Alloy | 48 | Single | Solder | 2 | Female | 24 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 125 °C | -40 C | Green | Non Specified - Dual Edge | Right Angle Through Hole | Semi Bellows | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Copper Alloy | 48 | Dual | 0.25 Ám | 10 Áin | Solder | 2 | Female | 24 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 125 °C | -40 C | Green | Non Specified - Dual Edge | Board Edge Straddle Mount | Semi Bellows | Card Extender |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Copper Alloy | 48 | Single | 0.25 Ám | 10 Áin | Solder | 2 | Female | 24 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 125 °C | -40 C | Green | Non Specified - Dual Edge | Right Angle Through Hole | Semi Bellows | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Tin | Copper Alloy | 48 | Dual | Solder Eyelet(s) | 2 | Female | 24 | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 C | Green | Non Specified - Dual Edge | Through Hole | Semi Bellows | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Tin | Copper Alloy | 48 | Single | Solder | 2 | Female | 24 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 125 °C | -40 C | Green | Non Specified - Dual Edge | Right Angle Through Hole | Semi Bellows | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Tin | Copper Alloy | 48 | Dual | Solder | 2 | Female | 24 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 125 °C | -40 C | Green | Non Specified - Dual Edge | Board Edge Straddle Mount | Semi Bellows | Card Extender |
