ADRF5301 Series

Silicon, SPDT Switch, 37 GHz to 49 GHz

Catalog

Silicon, SPDT Switch, 37 GHz to 49 GHz

Part	Supplied Contents	Frequency [Min]	Frequency [Max]	For Use With/Related Products	Type	Frequency Range [Max]	Frequency Range [Min]	Circuit	IIP3	Isolation	Supplier Device Package	Package / Case	Impedance	Mounting Type	Topology	RF Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Insertion Loss	P1dB	Test Frequency

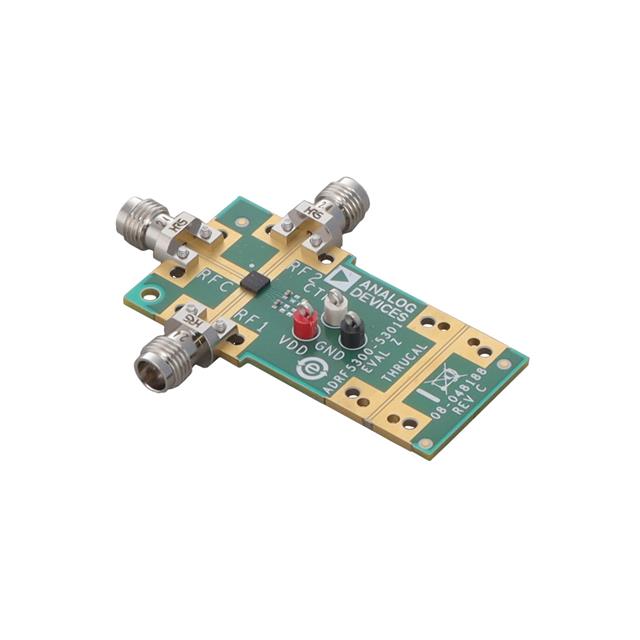

Analog Devices ADRF5301-EVALZ	Board(s)	37 GHz	49 GHz	ADRF5301	Switch SPDT
Analog Devices ADRF5301BCCZN-R7						49 GHz	37 GHz	SPDT	52 dBm	30 dB	20-LGA (3x3)	20-VFLGA Exposed Pad	50 Ohms	Surface Mount	Reflective	5G Cellular VSAT	-40 °C	105 ░C	DC Blocked	3.45 V	3.15 V	1.4 dB
Analog Devices ADRF5301BCCZN						49 GHz	37 GHz	SPDT	52 dBm	30 dB	20-LGA (3x3)	20-VFLGA Exposed Pad	50 Ohms	Surface Mount	Reflective		-40 °C	105 ░C	Single Line Control	3.45 V	3.15 V	1.4 dB	36 dBm	40 GHz

Catalog

Silicon, SPDT Switch, 37 GHz to 49 GHz

Key Features

• Reflective design

• Low insertion loss: 1.4 dB typical

• High isolation: 30 dB typical

• High input linearity:

• P0.1dB: 36 dBm

• Input IP3: 52 dBm

• High RF power handling

• 28 dBm average

• 36 dBm peak

• Single-supply operation: 3.3V

• Internal NVG

• RF settling time (0.1 dB final RF output): 50 ns

• 20-terminal, 3 mm × 3 mm, land grid array (LGA) package

Description

The ADRF5301 is a reflective, SPDT switch manufactured in the silicon process.The ADRF5301 was developed for 5G applications from 37 GHz to 49 GHz. This device has a low insertion loss of 1.4 dB, high isolation of 30 dB, and RF input power handling capability of 28 dBm average and 36 dBm peak.The ADRF5301 incorporates a negative voltage generator (NVG) to operate with a single positive supply of 3.3 V applied to the VDD pin. The device employs complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible control.The ADRF5301 comes in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array package and can operate from −40°C to +105°C.ApplicationsIndustrial scannerTest instrumentationCellular infrastructure mmWave 5GMilitary radios, radars, electronic counter measures (ECMs)Microwave radios and very small aperture terminals (VSATs)
