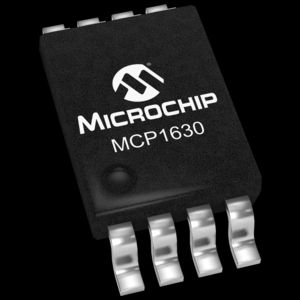

High-Speed, Microcontroller-Adaptable PWM
Key Features
- 12 nS Current Sense-to-Output delay
- Fast Rise and Fall times: 5.9 nS and 6.2 nS
- Precise Peak Current Limit (±5%)
- Low Operating Current:2.8 mA, typical
- Under Voltage Lockout (UVLO)
- Over-Temperature protection
- Space Saving MSOP-8 Package
- Extended Temperature Range (-40°C to +125°C)
Description
AI
The MCP1630 is a high-speed Pulse Width Modulator (PWM) used to develop intelligent power systems. When used with a microcontroller, the MCP1630 will control the power system duty cycle to provide output voltage or current regulation. The MCP1630 inputs are designed to be easily attached to the I/O of a microcontroller, which supplies the reference and oscillator to the MCP1630, to generate a flexible and adaptable power system.
