NB4N527S Series

Translator, 3.3 V, 2.5 Gb/s Dual AnyLevel™ to LVDS Receiver/Driver/Buffer, with Internal Termination

Catalog

Translator, 3.3 V, 2.5 Gb/s Dual AnyLevel™ to LVDS Receiver/Driver/Buffer, with Internal Termination

Part	Number of Bits	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Logic Type	Supply Voltage [Min]	Supply Voltage [Max]	Mounting Type	Type	Utilized IC / Part	Secondary Attributes	Contents	Function	Primary Attributes
ON Semiconductor NB4N527SMNG	2	16-QFN (3x3)	85 °C	-40 °C	16-VFQFN Exposed Pad	Buffer Driver Receiver Translator	3 V	3.6 V	Surface Mount
ON Semiconductor NB4N527SMNR2G	2	16-QFN (3x3)	85 °C	-40 °C	16-VFQFN Exposed Pad	Buffer Driver Receiver Translator	3 V	3.6 V	Surface Mount

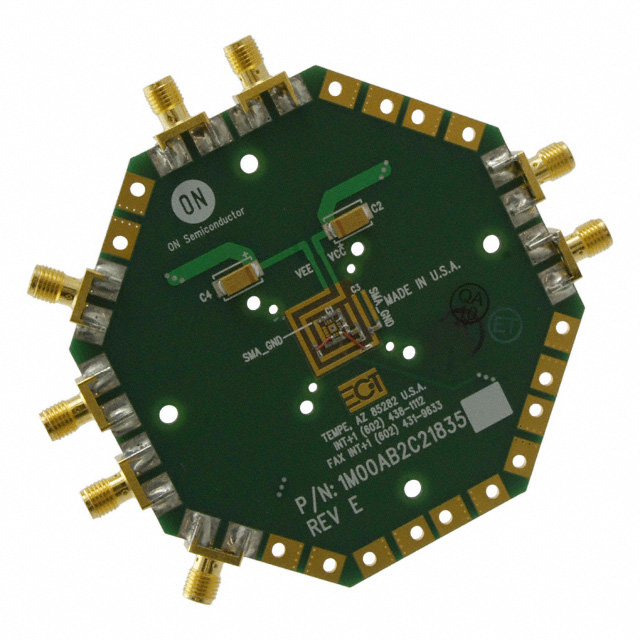

ON Semiconductor NB4N527SMNEVB										Timing	NB4N527S	SMA Connectors	Board(s)	Clock Buffer Driver Receiver Translator	Four Layer Board with Split (Dual) Power Supplies

Catalog

Translator, 3.3 V, 2.5 Gb/s Dual AnyLevel™ to LVDS Receiver/Driver/Buffer, with Internal Termination

Key Features

• Maximum Input Clock Frequency up to 1.25 GHz

• Maximum Input Data Rate up to 2.5 Gb/s

• 500 ps Maximum Propagation Delay

• 2 ps Maximum RMS Jitter

• 300 ps Maximum Rise/Fall Times

• Single Power Supply; VCC= 3.3 V +/- 10%

• Temperature Compensated TIA/EIA644 Compliant LVDS Outputs

• Internal 50 Termination Resistor per Input Pin

• GND + 50 mV to VCC 50 mV VCMR Range

Description

NB4N527S is a clock or data Receiver/Driver/Buffer/Translator capable of translating AnyLevelTMinput signal (LVPECL, CML, HSTL, LVDS, or LVTTL/LVCMOS) to LVDS. Depending on the distance, noise immunity of the system design, and transmission line media, this device will receive, drive or translate data or clock signals up to 2.5 Gb/s or 1.25 GHz, respectively.The NB4N527S has a wide input common mode range of GND+50 mV to VCC-50 mV combined with two 50 Ω internal termination resistors is ideal for translating differential or single-ended data or clock signals to 350 mV typical LVDS output levels without use of any additional external components.The device is offered in a small 3 mm x 3 mm QFN-16 package. NB4N527S is targeted for data, wireless and telecom applications as well as high speed logic interface where jitter and package size are main requirements.
