MCP251863 Series

External CAN FD Controller with SPI Interface and CAN Transceiver

Catalog

External CAN FD Controller with SPI Interface and CAN Transceiver

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Grade	Protocol	Supplier Device Package	Standards	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [custom]	Package / Case	Package / Case [custom]	Function	Qualification
Microchip Technology MCP251863T-E/SS	2.7 V 4.5 V	5.5 V	Automotive	CAN	28-SSOP	CAN 2.0	SPI	-40 °C	125 °C	0.209 in	28-SSOP	5.3 mm	Controller	AEC-Q100

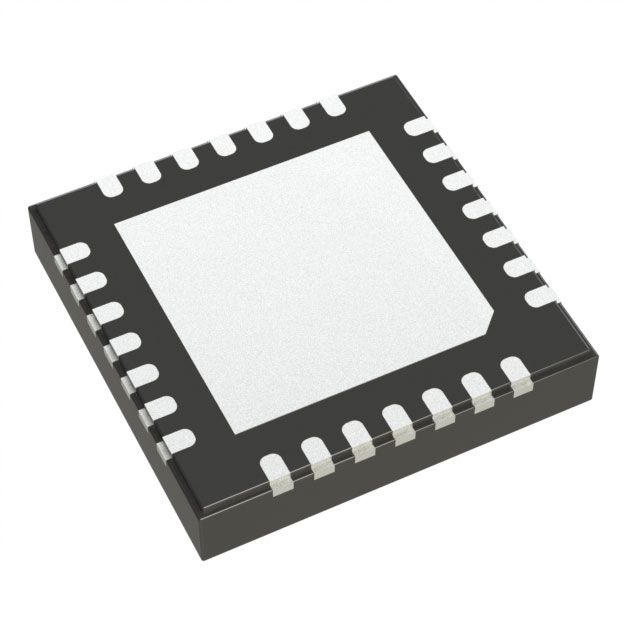

Microchip Technology MCP251863T-H/9PX	2.7 V 4.5 V	5.5 V		CAN	28-VQFN (5x5)	CAN 2.0	SPI				28-VFQFN Exposed Pad		Controller
Microchip Technology MCP251863T-H/SS	2.7 V 4.5 V	5.5 V	Automotive	CAN	28-SSOP	CAN 2.0	SPI			0.209 in	28-SSOP	5.3 mm	Controller	AEC-Q100
Microchip Technology MCP251863T-E/9PX	2.7 V 4.5 V	5.5 V		CAN	28-VQFN (5x5)	CAN 2.0	SPI	-40 °C	125 °C		28-VFQFN Exposed Pad		Controller

Catalog

External CAN FD Controller with SPI Interface and CAN Transceiver

Key Features

- Arbitration Bit Rate Up to 1 Mbps

- Data Bit Rate up to 5 Mbps

- CAN FD Controller Modes

- Mixed CAN 2.0B and CAN FD Mode

- CAN 2.0B Mode

- Fully ISO 11898-1:2015, ISO 11898-2: 2016 and SAE J2284-1 to SAE J2284-5 Compliant

•

• Temperature Ranges:* Extended (E): -40°C to +125°C

• * High (H) : -40°C to +150°C

• * ISO 26262 Functional Safety Ready

• * Low Electromagnetic Emission (EME)

• * High Electromagnetic Immunity (EMI)

• * AEC-Q100 and AEC-Q006 Qualified

• * Packages: SSOP28, VQFN28

•

• Message FIFOs* 31 FIFOs, Configurable as Transmit or Receive FIFOs

• * 32 Flexible Filter and Mask Objects

• * One Transmit Queue

•

• Misc* 32-bit Time Stamp

• * Bus Health Diagnostics and Error Counters

• * Differential receiver with wide common mode range

• * Remote wake-up capability via CAN bus - Wake-Up on Pattern (WUP), Specified in ISO 11898-2: 2016, 3.8 μs Activity Filter Time

• * Functional behavior predictable under all supply conditions

• * Transceiver disengages from the bus when not powered up

• * RXD recessive clamping detection

• * High electrostatic discharge (ESD) handling capability on the bus pins

• * Bus pins protected against transients in automotive environments

• * Transmit data (TXD) dominant time-out function

• * Undervoltage detection on VCC

• * CANH/CANL short-circuit and overtemperature protected

•

• Built-In Safety features* Loopback mode

• * SPI commands with CRC to detect noise on SPI interface

• * ECC for the SRAM 2 bit detection

• * Power-on Reset (POR)

• * Voltage Monitoring (VCC, VIO)

• * Overtemperature Detection

• * RXD Recessive clamp detection

• * TXD Dominant Timeout

Description

The MCP251863 device is a cost-effective and small-footprint CAN FD controller (MCP2518FD) with an integrated Transceiver (ATA6563) that can easily be added to a microcontroller with an available SPI interface. A CAN FD channel can be added to a microcontroller that is either lacking a CAN FD peripheral or does not have enough CAN FD channels. The MCP251863 supports both CAN frames in the Classical format (CAN2.0B) and CAN Flexible Data Rate (CAN FD) format, as specified in ISO 11898-1:2015. The integrated transceiver is a high-speed CAN transceiver compliant with the ISO 11898-2, ISO 11898-2: 2016, ISO 11898-5 CAN standards. It provides a very low current consumption in Standby mode and wake-up capability via the CAN bus. Please see our MikroElektronika click Board! [https://shop.mikroe.com/mcp251863-cli](https://shop.mikroe.com/mcp251863-click)[ck](https://shop.mikroe.com/mcp2518fd-click) Please see our functional safety feature page [CAN/CAN FD](https://www.microchip.com/design-centers/can/can-and-can-fd-functional-safety) An MCAL driver is available upon request as described here: <https://www.microchip.com/en-us/solutions/automotive-and-transportation/software> Please contact your local Sales representative. The MCP2518FD is supported in the mainline linux kernel since Kernel version 5.10 and can be found [here](https://github.com/torvalds/linux/tree/master/drivers/net/can/spi/mcp251xfd) Backports and an external kernel module can be found [here](https://files.linux4microchip.com/pub/mcp251xfd/)
