TSM900 Series

Catalog

TRANS MOSFET N-CH 100V 15A 3-PIN(2+TAB) DPAK T/R

Part	Mounting Type	Vgs(th) (Max) @ Id	Package / Case	Power Dissipation (Max)	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Operating Temperature	Supplier Device Package

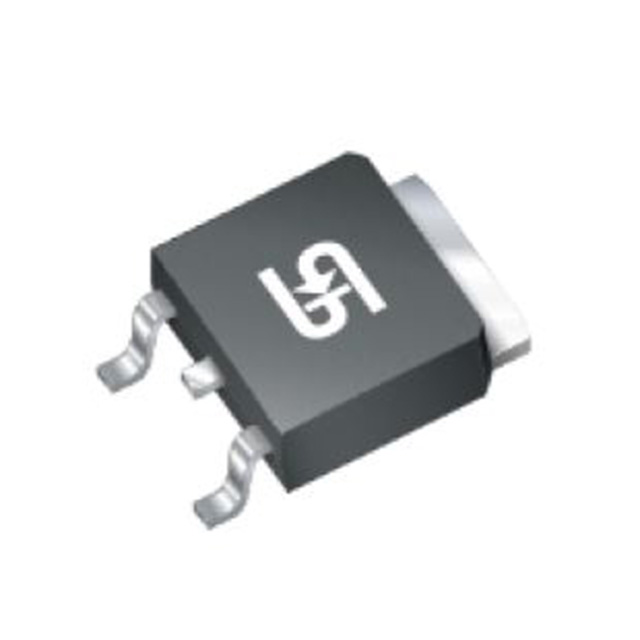

Taiwan Semiconductor Corporation TSM900N10CP ROG	Surface Mount	2.5 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	50 W	20 V	4.5 V 10 V	9.3 nC	N-Channel	150 °C	-55 °C	MOSFET (Metal Oxide)	1480 pF	TO-252 (DPAK)	15 A	100 V	90 mOhm
Taiwan Semiconductor Corporation TSM900N06CP	Surface Mount	2.5 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	25 W	20 V	4.5 V 10 V	9.3 nC	N-Channel			MOSFET (Metal Oxide)	500 pF	TO-252 (DPAK)	11 A	60 V	90 mOhm	150 °C

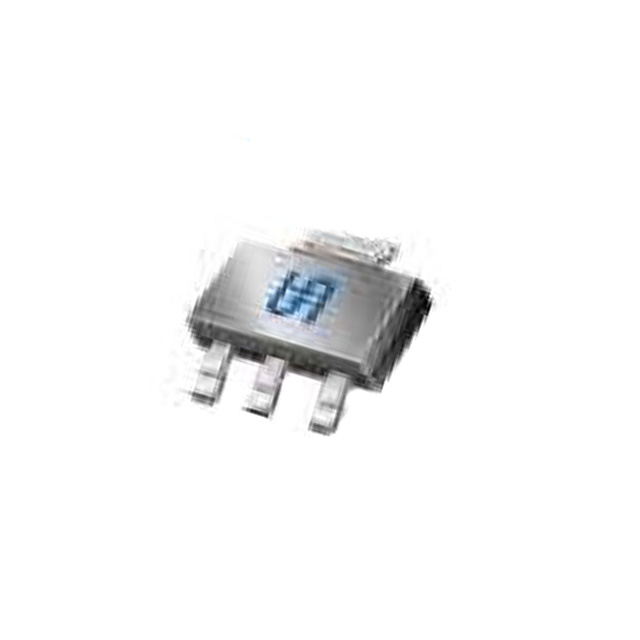

Taiwan Semiconductor Corporation TSM900N06CW RPG	Surface Mount	2.5 V	TO-261-4 TO-261AA	7.8 W	20 V	4.5 V 10 V	11 nC	N-Channel	150 °C	-55 °C	MOSFET (Metal Oxide)	525 pF	SOT-223	6 A	60 V	90 mOhm
Taiwan Semiconductor Corporation TSM900N10CH X0G	Through Hole	2.5 V	TO-251-3 Stub Leads IPAK	50 W	20 V	4.5 V 10 V	9.3 nC	N-Channel	150 °C	-55 °C	MOSFET (Metal Oxide)	1480 pF	TO-251	15 A	100 V	90 mOhm		IPAK
Taiwan Semiconductor Corporation TSM900N06CP ROG	Surface Mount	2.5 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	25 W	20 V	4.5 V 10 V	9.3 nC	N-Channel	150 °C	-55 °C	MOSFET (Metal Oxide)	500 pF	TO-252 (DPAK)	11 A	60 V	90 mOhm
