RF-MOSFET-1000V Series

1000V RF MOSFET

Catalog

1000V RF MOSFET

Part	Supplier Device Package	Power - Output	Technology	Voltage - Rated	Configuration	Frequency	Package / Case	Current Rating (Amps)	Gain	Voltage - Test	Current - Output (Max) [Max]	Switch Type	Output Configuration	Interface	Rds On (Typ)	Output Type	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Ratio - Input:Output [custom]	Input Type	Number of Outputs	Voltage - Supply (Vcc/Vdd)

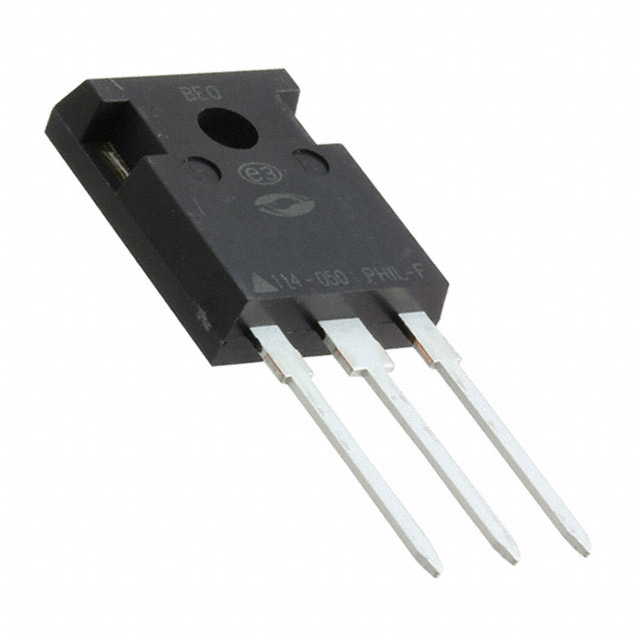

Microchip Technology ARF461BG	TO-247	150 W	MOSFET (Metal Oxide)	1000 V	N-Channel	65 MHz	TO-247-3	25 µA	15 dB	50 V
Microchip Technology ARF466FL	T3	150 W	MOSFET (Metal Oxide)	1000 V	N-Channel	40.68 MHz		13 A	16 dB	150 V
Microchip Technology DRF1301							18-SMD Module				15 A	General Purpose	Low Side	On/Off	1 Ohm	N-Channel	15 V	10 V	Surface Mount	1:1	Inverting Non-Inverting	2

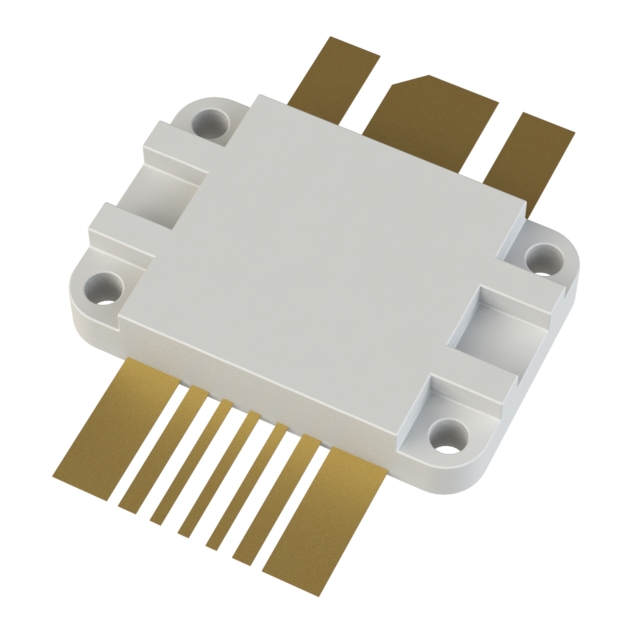

Microchip Technology DRF1211	T2B						Module					General Purpose							Chassis Mount			1	15 V
Microchip Technology ARF461CG	TO-247	150 W	MOSFET (Metal Oxide)	1000 V	N-Channel	65 MHz	TO-247-3	25 µA	15 dB	50 V

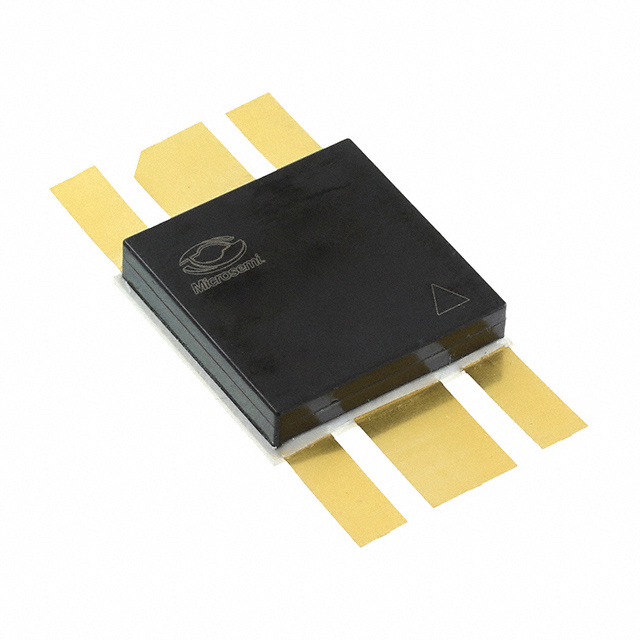

Microchip Technology ARF1501	T-1	750 W	MOSFET (Metal Oxide)	1000 V	N-Channel	27.12 MHz	T-1	30 A	17 dBi	250 V

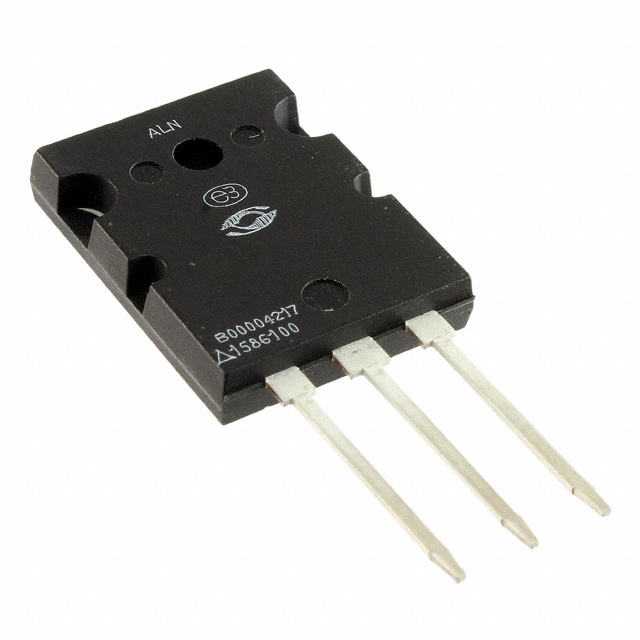

Microchip Technology ARF466AG	TO-264	300 W	MOSFET (Metal Oxide)	1000 V	N-Channel	40.68 MHz	TO-264-3 TO-264AA	13 A	16 dB	150 V
Microchip Technology ARF1510	T-1	750 W	MOSFET (Metal Oxide)	1000 V	N-Channel	40.7 MHz	T-1	8 A	15 dB	400 V
Microchip Technology ARF461AG	TO-247	150 W	MOSFET (Metal Oxide)	1000 V	N-Channel	65 MHz	TO-247-3	25 µA	15 dB	50 V

Catalog

1000V RF MOSFET

Key Features

• * Semi-Cap (6, 13, 27, 40MHz)

• * Industrial Glass (6, 13, 27, 40MHz)

• * PV Cells (6, 13, 27, 40MHz)

• * Flat Panel Displays (6, 13, 27, 40MHz)

• * Mass Spectrometry (13, 27MHz)

• * Dielectric Heating (2 to 40MHz)

• * Machine Tools (6, 13, 27MHz)

• * Drilling (6, 13, 27MHz)

• * Marking (13, 27, 40, 81, 108MHz)

• * Cutting (6, 13, 27MHz)

• * MRI (8 to 36, 64, 128 300MHz)

• * Laser Scalpel (13, 27, 40, 81, 108MHz)

• * Diathermy/Hyperthermia (8MHz)

• * Chemical Analysis (13, 27MHz)

• * Marine Radio (2 to 40MHz)

• * HF Radio (2 to 40MHz)

• * FM Broadcast (87 to 108MHz)

Description

The ARF family of RF power MOSFETs is optimized for applications requiring frequencies as high as 150 MHz and operating voltages as high as 400V. Historically, RF power MOSFETs were limited to applications of 50V or less. This limitation has been removed by combining Microchip’s high-voltage MOSFET technology with RF-specific die geometries. The DRF1300 and DRF1301 have two independent channels, each containing a driver and RF MOSFET in a push-pull configuration. All DRF parts feature a proprietary anti-ring function to eliminate cross conduction in bridge or push-pull topologies. All DRF parts can be externally selected in either an inverting or non-inverting configuration.
