SUD19 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

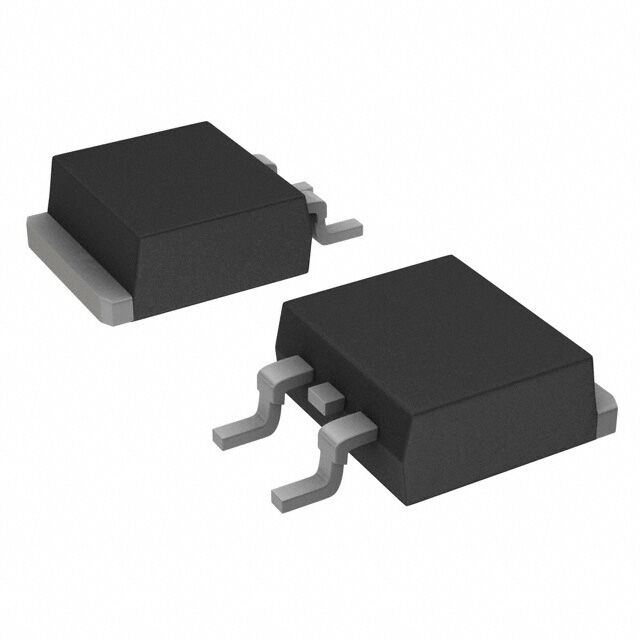

MOSFET P-CH 60V 18.3A DPAK

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Drain to Source Voltage (Vdss)	Technology	FET Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Rds On (Max) @ Id, Vgs	Vgs (Max)	Package / Case
Vishay General Semiconductor - Diodes Division SUD19P06-60-BE3	40 nC	4.5 V 10 V	TO-252AA	60 V	MOSFET (Metal Oxide)	P-Channel	-55 °C	150 °C	2.3 W 38.5 W	3 V	1710 pF	18.3 A	Surface Mount	60 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3
Vishay General Semiconductor - Diodes Division SUD19P06-60-GE3	40 nC	4.5 V 10 V	TO-252AA	60 V	MOSFET (Metal Oxide)	P-Channel	-55 °C	150 °C	2.3 W 38.5 W	3 V	1710 pF	18.3 A	Surface Mount	60 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3
Vishay General Semiconductor - Diodes Division SUD19N20-90-BE3	51 nC	6 V 10 V	TO-252AA	200 V	MOSFET (Metal Oxide)	N-Channel	-55 °C	175 ░C	3 W 136 W	4 V	1800 pF	19 A	Surface Mount	90 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3
Vishay General Semiconductor - Diodes Division SUD19P06-60L-E3	40 nC	4.5 V 10 V	TO-252AA	60 V	MOSFET (Metal Oxide)	P-Channel	-55 °C	175 ░C	2.7 W 46 W	3 V	1710 pF	19 A	Surface Mount	60 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3
Vishay General Semiconductor - Diodes Division SUD19N20-90-T4-E3	51 nC	6 V 10 V	TO-252AA	200 V	MOSFET (Metal Oxide)	N-Channel	-55 °C	175 ░C	3 W 136 W	4 V	1800 pF	19 A	Surface Mount	90 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3
Vishay General Semiconductor - Diodes Division SUD19N20-90-E3	51 nC	6 V 10 V	TO-252AA	200 V	MOSFET (Metal Oxide)	N-Channel	-55 °C	175 ░C	3 W 136 W	4 V	1800 pF	19 A	Surface Mount	90 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3
Vishay General Semiconductor - Diodes Division SUD19P06-60-E3	40 nC	4.5 V 10 V	TO-252AA	60 V	MOSFET (Metal Oxide)	P-Channel	-55 °C	150 °C	2.3 W 38.5 W	3 V	1710 pF	18.3 A	Surface Mount	60 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3
