STI24 Series

Catalog

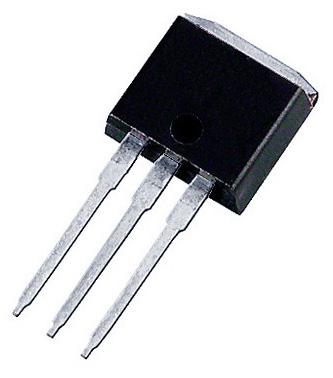

MOSFET, N-CH, 600V, TO-262

Part	Supplier Device Package	Package / Case	Rds On (Max) @ Id, Vgs	Technology	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]
STMicroelectronics STI24N60M6	I2PAK	I2PAK TO-262-3 Long Leads TO-262AA	190 mOhm	MOSFET (Metal Oxide)	25 V	10 V	Through Hole	23 nC	150 °C	-55 °C	4.75 V	130 W	17 A	600 V	N-Channel	960 pF
STMicroelectronics STI24N60M2	TO-262 (I2PAK)	I2PAK TO-262-3 Long Leads TO-262AA	190 mOhm	MOSFET (Metal Oxide)	25 V	10 V	Through Hole		150 °C	-55 °C	4 V	150 W	18 A	600 V	N-Channel	1060 pF	29 nC
STMicroelectronics STI24NM60N	I2PAK	I2PAK TO-262-3 Long Leads TO-262AA	190 mOhm	MOSFET (Metal Oxide)	30 V	10 V	Through Hole		150 °C	-55 °C	4 V	125 W	17 A	600 V	N-Channel	1400 pF	46 nC
