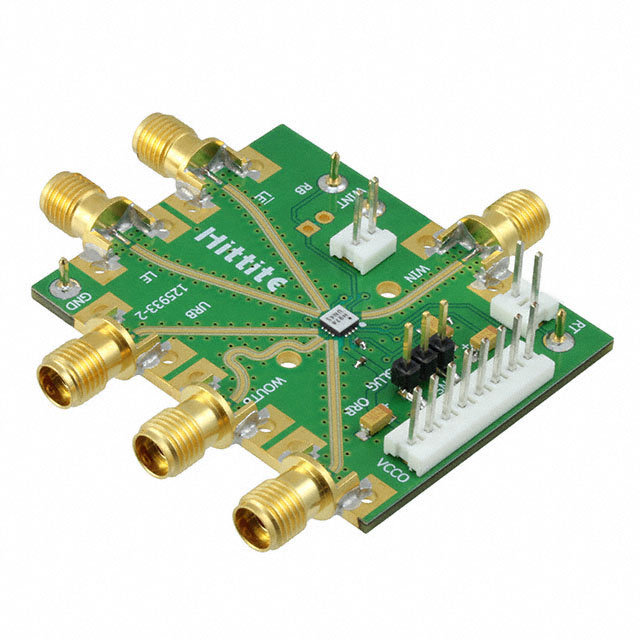

10 GHz, High Speed Window Comparator
Key Features
• Propagation delay: 88 ps
• Propagation delay at 50 mV overdrive: 20 ps
• Minimum detectable pulse width: 60 ps
• Differential latch control
• Power dissipation: 240 mW

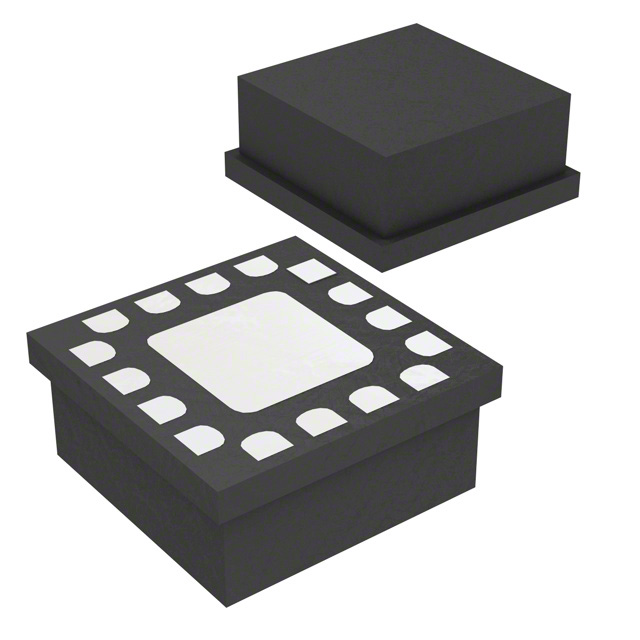

• 16-terminal 2.9 mm × 2.9 mm LCC package
Description
AI
The HMC974LC3C is a silicon germanium (SiGe) monolithic, ultra fast window comparator that features reduced swing positive emitter-coupled logic (RSPECL) output drivers that are level latched. Three output ports detect whether an analog input signal is above, below, or between two reference levels supplied at the input.The outputs are single-ended negative logic. Incorporating two proven comparators at the input provides good dc and dynamic matching and reduces the input capacitance. The reduced swing output stages are designed to directly drive 400 mV into 50 Ω terminated to a voltage (VTERM= VCCO− 2 V).HMC974LC3C features high speed latches that can either be enabled to latch the output data or left in the track mode to implement a tracking window comparator.ApplicationsAutomatic test equipment (ATE)High speed instrumentationClock and data restorationSemiconductor test systemsThreshold detection in electronic warfare systems
