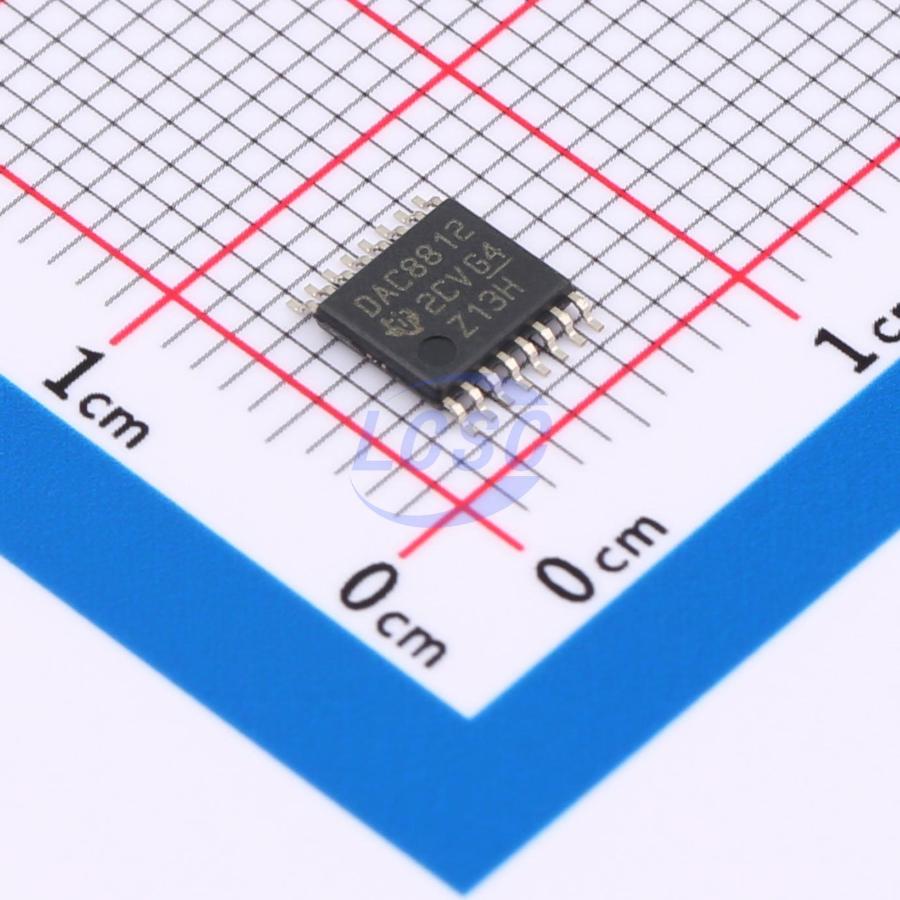

DAC8812 Series

16-Bit, Dual Serial Input Multiplying Digital-to-Analog Converter

Catalog

16-Bit, Dual Serial Input Multiplying Digital-to-Analog Converter

Part	Number of Bits	Package / Case [x]	Package / Case	Package / Case [y]	Data Interface	Reference Type	Supplier Device Package	Architecture	Mounting Type	Settling Time	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Output Type	INL/DNL (LSB)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]
Texas Instruments DAC8812ICPW	16	0.173 in	16-TSSOP	4.4 mm	SPI	External	16-TSSOP	Multiplying DAC	Surface Mount	500 ns	5.5 V	2.7 V	Current - Unbuffered	±1 (Max)	85 °C	-40 °C	2.7 V	5.5 V
Texas Instruments DAC8812ICPWR	16	0.173 in	16-TSSOP	4.4 mm	SPI	External	16-TSSOP	Multiplying DAC	Surface Mount	500 ns	5.5 V	2.7 V	Current - Unbuffered	±1 (Max)	85 °C	-40 °C	2.7 V	5.5 V
Texas Instruments DAC8812ICPWG4	16	0.173 in	16-TSSOP	4.4 mm	SPI	External	16-TSSOP	Multiplying DAC	Surface Mount	500 ns	5.5 V	2.7 V	Current - Unbuffered	±1 (Max)	85 °C	-40 °C	2.7 V	5.5 V

Catalog

16-Bit, Dual Serial Input Multiplying Digital-to-Analog Converter

Key Features

• Relative Accuracy: 1 LSB MaxDifferential Nonlinearity: 1 LSB Max2-mA Full-Scale Current ±20%,With VREF= ±10 V0.5-μs Settling TimeMidscale or Zero-Scale ResetSeparate 4Q Multiplying Reference InputsReference Bandwidth: 10 MHzReference Dynamics: –105-dB THDSPI-Compatible 3-Wire Interface:50 MHzDouble Buffered Registers to EnableSimultaneous Multichannel UpdateInternal Power-On ResetIndustry-Standard Pin ConfigurationAll trademarks are the property of their respective owners. All trademarks are the property of their respective owners.Relative Accuracy: 1 LSB MaxDifferential Nonlinearity: 1 LSB Max2-mA Full-Scale Current ±20%,With VREF= ±10 V0.5-μs Settling TimeMidscale or Zero-Scale ResetSeparate 4Q Multiplying Reference InputsReference Bandwidth: 10 MHzReference Dynamics: –105-dB THDSPI-Compatible 3-Wire Interface:50 MHzDouble Buffered Registers to EnableSimultaneous Multichannel UpdateInternal Power-On ResetIndustry-Standard Pin ConfigurationAll trademarks are the property of their respective owners. All trademarks are the property of their respective owners.

Description

The DAC8812 is a dual, 16-bit, current-output digital-to-analog converter (DAC) designed to operate from a single 2.7-V to 5.5-V supply. The applied external reference input voltage VREFdetermines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier. A double-buffered, serial data interface offers high-speed, 3-wire, SPI and microcontroller compatible inputs using serial data in (SDI), clock (CLK), and a chip-select (CS). A common level-sensitive load DAC strobe (LDAC) input allows simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to zero at system turnon. An MSB pin allows system reset assertion (RS) to force all registers to zero code when MSB = 0, or to midscale code when MSB = 1. The DAC8812 is a dual, 16-bit, current-output digital-to-analog converter (DAC) designed to operate from a single 2.7-V to 5.5-V supply. The applied external reference input voltage VREFdetermines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier. A double-buffered, serial data interface offers high-speed, 3-wire, SPI and microcontroller compatible inputs using serial data in (SDI), clock (CLK), and a chip-select (CS). A common level-sensitive load DAC strobe (LDAC) input allows simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to zero at system turnon. An MSB pin allows system reset assertion (RS) to force all registers to zero code when MSB = 0, or to midscale code when MSB = 1.
