TC164-FR Series
Manufacturer: YAGEO
Beta
⌘K

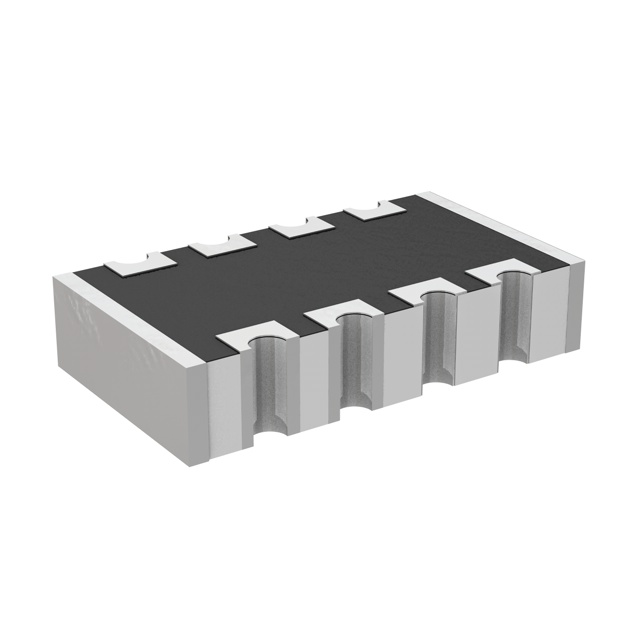

RES ARRAY 4 RES 453 OHM 1206
| Part | Circuit Type | Grade | Qualification | Number of Resistors | Resistance (Ohms) [custom] | Power Per Element | Temperature Coefficient | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Applications | Tolerance | Package / Case | Number of Pins | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 453 Ohms | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | 3.74 kOhms | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | 953k | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | 287 Ohms | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 200 Ohms | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | 3.4 kOhms | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | 118 Ohms | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | 39 kOhms | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 316 kOhms | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 | ||
YAGEO | Isolated | Automotive | AEC-Q200 | 4 | 825 Ohms | 62.5 mW | 200 ppm/°C | Surface Mount | 155 C | -55 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.7 mm | 0.028 " | DDRAM SDRAM | 1 % | 1206 (3216 Metric) Concave Long Side Terminals | 8 |
