E2042S Series
Manufacturer: Prysmian Group
Beta
⌘K

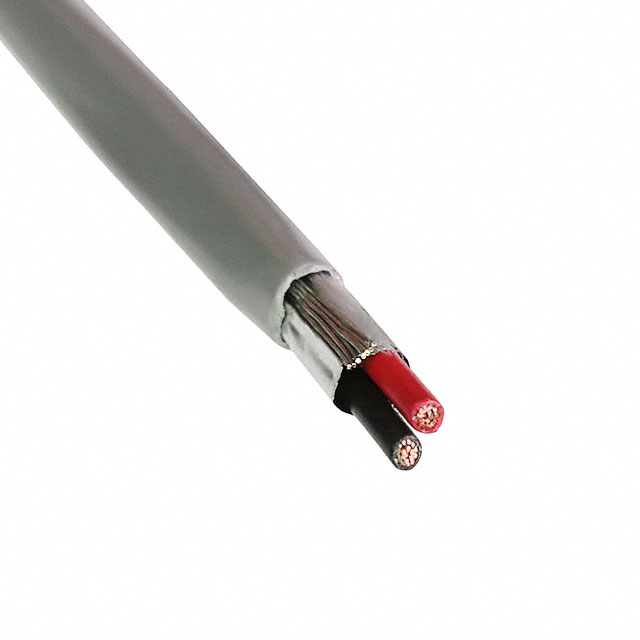

CABLE 2COND 16AWG GRAY SHLD 100'
| Part | Voltage | Shield Type | Number of Conductors | Jacket (Insulation) Material | Features | Cable Type | Jacket Color | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [diameter] | Length | Length | Conductor Insulation | Usage | Wire Gauge | Length [x] | Length [x] | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 300 VDC | Foil | 2 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Multi-Conductor | Gray | 0.381 mm | 0.015 in | Copper Bare | 0.183 in | 4.65 mm | 19 | 0.0117 in | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Alarm Security Sound | 16 AWG | ||||
Prysmian Group | 300 VDC | Foil | 2 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Multi-Conductor | Gray | 0.381 mm | 0.015 in | Copper Bare | 0.183 in | 4.65 mm | 19 | 0.0117 in | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Alarm Security Sound | 16 AWG | 100 ft | 30.5 m | Flexfoil® | 100 % |
 Prysmian Group | 300 VDC | Foil | 2 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Multi-Conductor | Gray | 0.381 mm | 0.015 in | Copper Bare | 0.183 in | 4.65 mm | 19 | 0.0117 in | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Poly-Vinyl Chloride (PVC) | Alarm Security Sound | 16 AWG | 100 ft | 30.5 m | ||
Prysmian Group | 300 VDC | Foil | 2 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Multi-Conductor | Gray | 0.381 mm | 0.015 in | Copper Bare | 0.183 in | 4.65 mm | 19 | 0.0117 in | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Alarm Security Sound | 16 AWG | Flexfoil® | 100 % | ||
Prysmian Group | 300 VDC | Foil | 2 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Multi-Conductor | Gray | 0.381 mm | 0.015 in | Copper Bare | 0.183 in | 4.65 mm | 19 | 0.0117 in | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Alarm Security Sound | 16 AWG | Flexfoil® | 100 % | ||
Prysmian Group | 300 VDC | Foil | 2 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Multi-Conductor | Gray | 0.381 mm | 0.015 in | Copper Bare | 0.183 in | 4.65 mm | 19 | 0.0117 in | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Alarm Security Sound | 16 AWG | ||||
Prysmian Group | 300 VDC | Foil | 2 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Multi-Conductor | Gray | 0.381 mm | 0.015 in | Copper Bare | 0.183 in | 4.65 mm | 19 | 0.0117 in | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Poly-Vinyl Chloride (PVC) | Alarm Security Sound | 16 AWG | 100 ft | 30.5 m | Flexfoil® | 100 % |
