TMC5130A-TA MOTION MOTOR CONTROL BREAKOUT BOARD

Part	Supplied Contents	Secondary Attributes	Type	Utilized IC / Part	Primary Attributes	Contents	Technology	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Interface	Package / Case	Motor Type - Stepper	Mounting Type	Current - Output	Step Resolution [Min]	Step Resolution [Max]	Supplier Device Package	Output Configuration

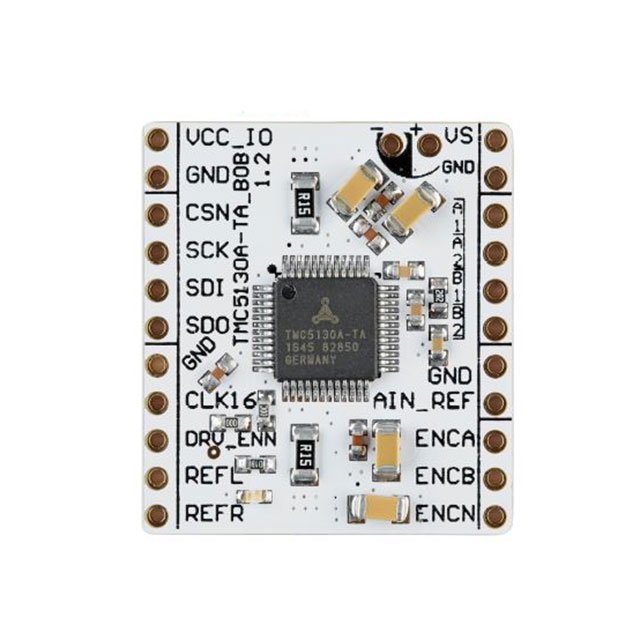

Analog Devices Inc./Maxim Integrated TMC5130A-BOB	Board(s)	SPI Interface(s)	Power Management	TMC5130A	Motors (Stepper)	Board(s)

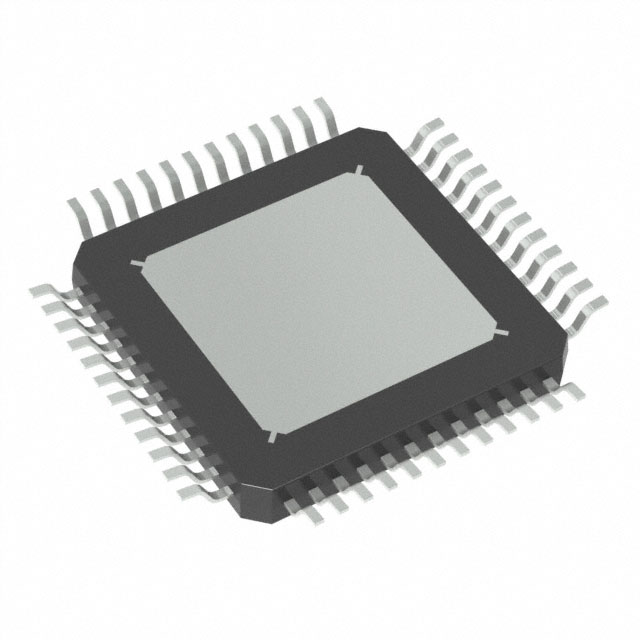

Analog Devices Inc./Maxim Integrated TMC5130A-TA							Power MOSFET	General Purpose	46 V	5.5 V	Driver - Fully Integrated Control and Power Stage	46 V	4.75 V	-40 C	125 °C	RS-232 SPI Step/Direction	48-TQFP Exposed Pad	Bipolar	Surface Mount	1.4 A	1	0.00390625	48-TQFP-EP (7x7)	Half Bridge (4)

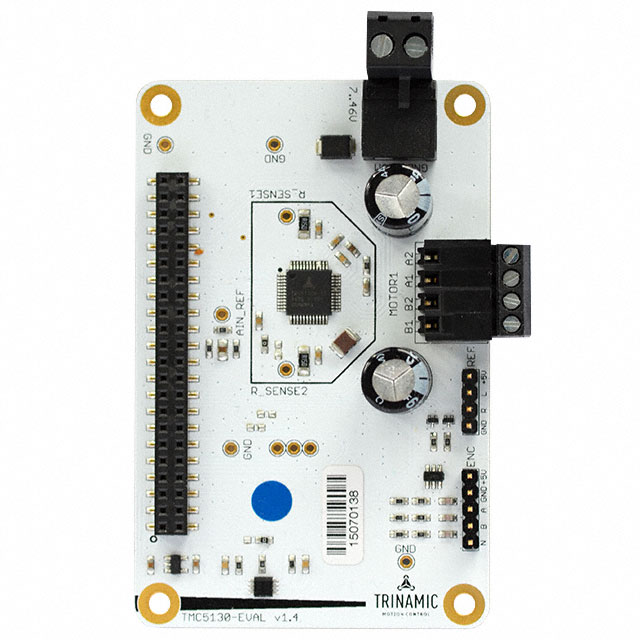

Analog Devices Inc./Maxim Integrated TMC5130-EVAL	Board(s)	SPI Interface(s)	Power Management	TMC5130		Board(s)
Analog Devices Inc./Maxim Integrated TMC5130A-TA-T							Power MOSFET	General Purpose	46 V	5.5 V	Driver - Fully Integrated Control and Power Stage	46 V	4.75 V	-40 C	125 °C	RS-232 SPI Step/Direction	48-TQFP Exposed Pad	Bipolar	Surface Mount	1.4 A	1	0.00390625	48-TQFP-EP (7x7)	Half Bridge (4)
