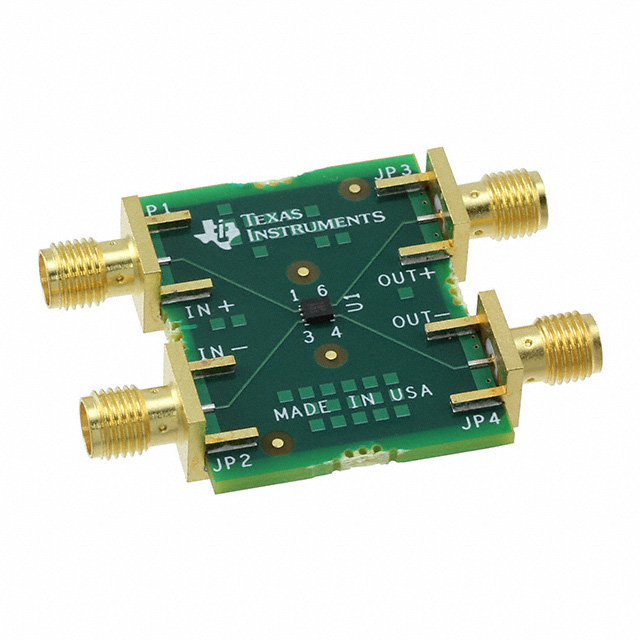

DS80EP100 Series
5 to 12.5-Gbps, power-saver equalizer for backplanes and cables
Manufacturer: Texas Instruments
Catalog
5 to 12.5-Gbps, power-saver equalizer for backplanes and cables
Key Features
• 5 to 12.5 Gbps OperationNo Power or Ground RequiredEqualization Effective Anywhere in Data PathEqualizes CML, LV-PECL, LVDS SignalsSymmetric I/O Structures Provide Equal Boost for Bi-directional Operation7 dB Maximum BoostCode Independent, 8b/10b or ScrambledSupports Both Bi-level and Multi-level SignalingExtends Reach Over Backplanes and CablesCompatible with PCI-Express Gen1 and Gen2Compatible with XAUIWill Operate in Series with Existing Active EqualizerEasy to Handle 6 Pin WSONAll trademarks are the property of their respective owners.5 to 12.5 Gbps OperationNo Power or Ground RequiredEqualization Effective Anywhere in Data PathEqualizes CML, LV-PECL, LVDS SignalsSymmetric I/O Structures Provide Equal Boost for Bi-directional Operation7 dB Maximum BoostCode Independent, 8b/10b or ScrambledSupports Both Bi-level and Multi-level SignalingExtends Reach Over Backplanes and CablesCompatible with PCI-Express Gen1 and Gen2Compatible with XAUIWill Operate in Series with Existing Active EqualizerEasy to Handle 6 Pin WSONAll trademarks are the property of their respective owners.
Description
AI
TI’s Power-saver equalizer compensates for transmission medium losses and minimizes medium-induced deterministic jitter. Performance is guaranteed over the full range of 5 to 12.5 Gbps. The DS80EP100 requires no power to operate. The equalizer operates anywhere in the data path to minimize media-induced deterministic jitter in both FR4 traces and cable applications. Symmetric I/O structures support full duplex or half duplex applications. Linear compensation is provided independent of line coding or protocol. The device is ideal for both bi-level and multi-level signaling.
The equalizer is available in a 6 pin leadless WSON package with a space saving 2.2 mm X 2.5 mm footprint. This tiny package provides maximum flexibility in placement and routing of the Power-saver equalizer.
TI’s Power-saver equalizer compensates for transmission medium losses and minimizes medium-induced deterministic jitter. Performance is guaranteed over the full range of 5 to 12.5 Gbps. The DS80EP100 requires no power to operate. The equalizer operates anywhere in the data path to minimize media-induced deterministic jitter in both FR4 traces and cable applications. Symmetric I/O structures support full duplex or half duplex applications. Linear compensation is provided independent of line coding or protocol. The device is ideal for both bi-level and multi-level signaling.
The equalizer is available in a 6 pin leadless WSON package with a space saving 2.2 mm X 2.5 mm footprint. This tiny package provides maximum flexibility in placement and routing of the Power-saver equalizer.
