ADuM4221-1 Series

Isolated, Half Bridge Gate Driver with Adjustable Dead Time, Single Input, 4 A Output

Catalog

Isolated, Half Bridge Gate Driver with Adjustable Dead Time, Single Input, 4 A Output

Part	Type	Supplied Contents	Utilized IC / Part	Contents	Function	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Driven Configuration	Channel Type	Mounting Type	Supplier Device Package	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Gate Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case [x]	Package / Case	Package / Case [y]	Number of Drivers	Approval Agency	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Current - Peak Output	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Number of Channels [custom]	Voltage - Isolation	Pulse Width Distortion (Max) [Max]	Technology	Common Mode Transient Immunity (Min) [Min]

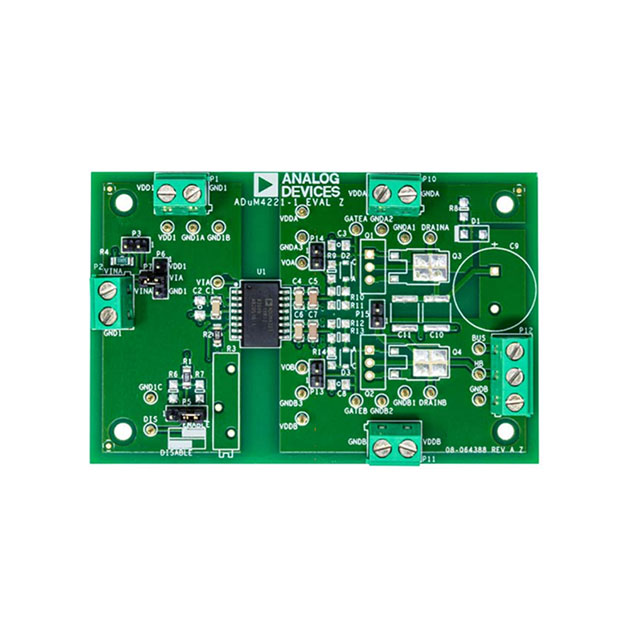

Analog Devices EVAL-ADUM4221-1EBZ	Power Management	Board(s)	ADuM4221-1	Board(s)	Gate Driver
Analog Devices ADUM4221-1ARIZ						6 A	4 A	-40 °C	125 ¯C	Inverting Non-Inverting	Half-Bridge	Synchronous	Surface Mount	16-SOIC	3.5 V	1.5 V	6.5 V	2.5 V	IGBT	25 ns	25 ns	0.295 in	16-SOIC	7.5 mm	2
Analog Devices ADUM4221-1CRIZ-RL						6 A	4 A	-40 °C	125 ¯C	Inverting Non-Inverting	Half-Bridge	Synchronous	Surface Mount	16-SOIC	3.5 V	1.5 V	6.5 V	2.5 V	IGBT	25 ns	25 ns	0.295 in	16-SOIC	7.5 mm	2
Analog Devices ADUM4221-1ARIZ-RL						6 A	4 A	-40 °C	125 ¯C	Inverting Non-Inverting	Half-Bridge	Synchronous	Surface Mount	16-SOIC	3.5 V	1.5 V	6.5 V	2.5 V	IGBT	25 ns	25 ns	0.295 in	16-SOIC	7.5 mm	2
Analog Devices ADUM4221CRIZ-RL						6 A	4 A	-40 °C	125 ¯C	Non-Inverting	Half-Bridge	Synchronous	Surface Mount	16-SOIC	3.5 V	1.5 V	6.5 V	2.5 V	IGBT	30 ns	25 ns	0.295 in	16-SOIC	7.5 mm	2
Analog Devices ADUM4221-2CRIZ								-40 °C	125 °C				Surface Mount	16-SOIC						30 ns	25 ns	0.295 in	16-SOIC	7.5 mm		CQC CSA UL VDE	33 ns	44 ns	4 A	4.5 V	35 V	2	5700 Vrms	16 ns	Magnetic Coupling	150 kV/µs

Catalog

Isolated, Half Bridge Gate Driver with Adjustable Dead Time, Single Input, 4 A Output

Key Features

• 4 A peak current (<2 Ω RDSON_x)

• 2.5 V to 6.5 V logic input voltage

• 4.5 V to 35 V output supply voltage

• UVLO VDD1positive going threshold: 2.5 V maximum

• Multiple UVLO options for VDDAand VDDBpositive going thresholdGrade A: 4.5 V maximumGrade B: 7.5 V maximumGrade C: 11.6 V maximum

• Grade A: 4.5 V maximum

• Grade B: 7.5 V maximum

• Grade C: 11.6 V maximum

• Precise timing characteristics44 ns maximum propagation delay

• 44 ns maximum propagation delay

• Adjustable dead time and dual input (ADuM4221)

• Adjustable dead time and single input (ADuM4221-1)

• No dead time control and dual input (ADuM4221-2)

• CMOS input logic levels

• High common-mode transient immunity: 150 kV/µs

• High junction temperature operation: 125°C

• Default low output

• Safety and regulatory approvals (pending)UL recognition per UL 15775700 V rms for 1 minute durationCSA Component Acceptance Notice 5AVDE certificate of conformityDIN V VDE V 0884-11: VIORM= 849 V peak

• UL recognition per UL 15775700 V rms for 1 minute duration

• 5700 V rms for 1 minute duration

• CSA Component Acceptance Notice 5A

• VDE certificate of conformityDIN V VDE V 0884-11: VIORM= 849 V peak

• DIN V VDE V 0884-11: VIORM= 849 V peak

• Increased creepage wide body, 16-lead SOIC_IC

Description

The ADuM4221/ADuM4221-1/ADuM4221-2are 4 A isolated, half bridge gate drivers that employ the Analog Devices, Inc.,iCoupler®technology to provide independent and isolated high-side and low-side outputs. The ADuM4221/ADuM4221-1/ADuM4221-2 provide 5700 V rms isolation in an increased creepage wide body, 16-lead SOIC_IC. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers.The isolators operate with a logic input voltage ranging from 2.5 V to 6.5 V, providing compatibility with lower voltage systems. In comparison to gate drivers employing high voltage level translation methodologies, the ADuM4221/ADuM4221-1/ADuM4221-2 offer the benefit of true, galvanic isolation between the input and each output.The ADuM4221/ADuM4221-1/ADuM4221-2 each have built in overlap protection and allow dead time adjustment. A single resistor between the dead time pin (DT) and the GND1pin sets the dead time on the secondary side between the high-side and the low-side outputs.An internal thermal shutdown (TSD) sets outputs low if the internal temperature on the ADuM4221/ADuM4221-1/ADuM4221-2 exceeds the TSD temperature. As a result, the ADuM4221/ADuM4221-1/ADuM4221-2 provide reliable control over the switching characteristics of the insulated gate bipolar transistor (IGBT)/metal-oxide semiconductor field effect transistor (MOSFET) configurations over a wide range of positive or negative switching voltages.ApplicationsSwitching power suppliesIsolated IGBT/MOSFET gate drivesIndustrial invertersGallium nitride (GaN)/silicon carbide (SiC) compatible1Protected by U.S. Patents 5,952,849; 6,873,065; 7,075,239. Other patents pending.
