GP2T080A Series

Manufacturer: SemiQ

Catalog

SIC MOSFETS SIC MOSFET 1200V 80MOHM TO-247-4L

Part	Vgs (Max) [Max]	Vgs (Max) [Min]	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Package / Case	FET Type	Mounting Type	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]
SemiQ GP2T080A120H	25 V	-10 V	4 V	175 °C	-55 °C	TO-247-4	100 mOhm	1.2 kV	TO-247-4	N-Channel	Through Hole	188 W	35 A	61 nC	1377 pF

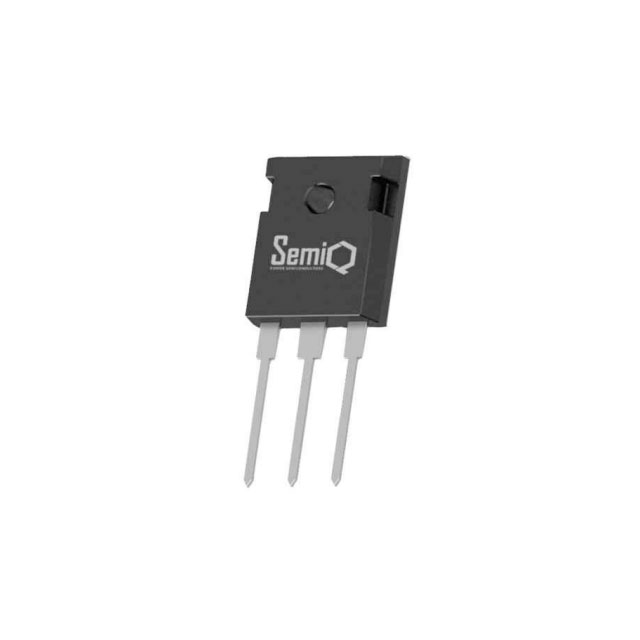

SemiQ GP2T080A120U	25 V	-10 V	4 V	175 °C	-55 °C	TO-247-3	100 mOhm	1.2 kV	TO-247-3	N-Channel	Through Hole	188 W	35 A	58 nC	1377 pF
