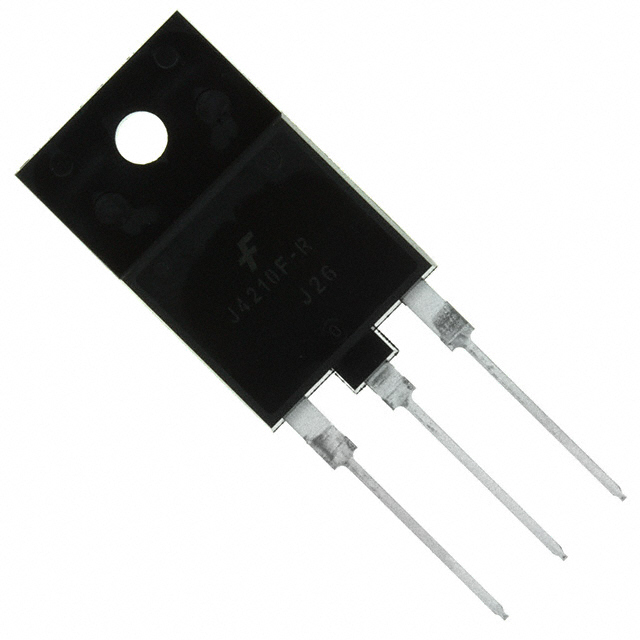

FJAF4210 Series

PNP Epitaxial Silicon Transistor

Manufacturer: ON Semiconductor

Catalog

PNP Epitaxial Silicon Transistor

Key Features

• Audio Power Amplifier

• High Current Capability : IC=10A

• High Power Dissipation

• Wide S.O.A

• Complement to FJAF4310

Catalog

PNP Epitaxial Silicon Transistor

Part	Transistor Type	Mounting Type	Operating Temperature	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Package / Case	Power - Max [Max]	Frequency - Transition	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
ON Semiconductor FJAF4210OTU	PNP	Through Hole	150 °C	TO-3PF	500 mV	TO-3P-3 Full Pack	80 W	30 MHz	10 µA	140 V	70
ON Semiconductor FJAF4210YTU	PNP	Through Hole	150 °C	TO-3PF	500 mV	TO-3P-3 Full Pack	80 W	30 MHz	10 µA	140 V	90
ON Semiconductor FJAF4210OTU	PNP	Through Hole	150 °C	TO-3PF	500 mV	TO-3P-3 Full Pack	80 W	30 MHz	10 µA	140 V	70
ON Semiconductor FJAF4210YTU	PNP	Through Hole	150 °C	TO-3PF	500 mV	TO-3P-3 Full Pack	80 W	30 MHz	10 µA	140 V	90
ON Semiconductor FJAF4210RTU	PNP	Through Hole	150 °C	TO-3PF	500 mV	TO-3P-3 Full Pack	80 W	30 MHz	10 µA	140 V	50 hFE
