DF13C Series

Catalog

CONN HEADER SMD 14POS 1.25MM

Part	Mated Stacking Heights	Fastening Type	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Style	Number of Positions	Features	Mounting Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Material	Contact Shape	Voltage Rating	Termination	Connector Type	Insulation Material	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Material Flammability Rating	Number of Rows	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

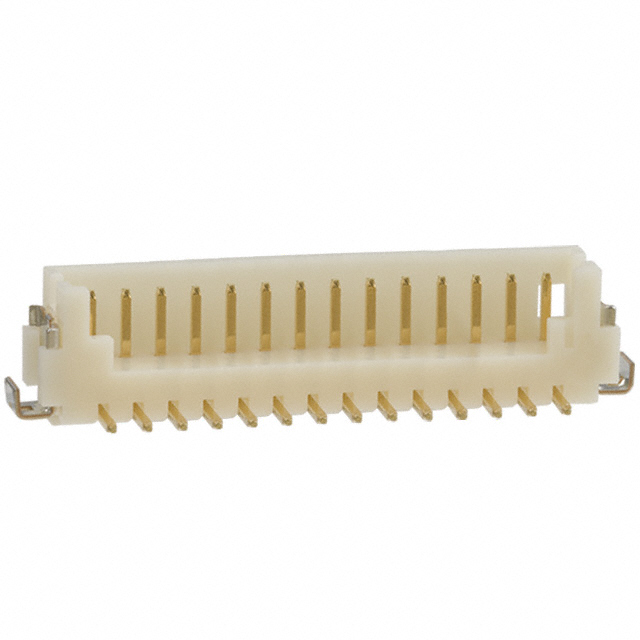

Hirose Electric Co Ltd DF13C-14P-1.25V(50)	5.8 mm	Detent Lock	Beige	85 °C	-35 °C	Board to Cable/Wire	14	Solder Retention	Surface Mount	All	8 µin	0.203 µm	4.8 mm	0.189 in	Brass	Square	150 VDC	Solder	Header	Nylon Polyamide (PA)	Gold	0.049 in	1.25 mm	Male Pin	UL94 V-0	1	Shrouded - 3 Wall
Hirose Electric Co Ltd DF13C-8P-1.25V(77)		Detent Lock	Beige	85 °C	-35 °C	Board to Cable/Wire	8	Solder Retention	Surface Mount	All			4.8 mm	0.189 in	Brass	Square	150 VAC	Solder	Header	Nylon Polyamide (PA)	Gold	0.049 in	1.25 mm	Male Pin	UL94 V-0	1	Shrouded - 3 Wall	Gold
Hirose Electric Co Ltd DF13C-7P-1.25V(50)	5.8 mm	Detent Lock	Beige	85 °C	-35 °C	Board to Cable/Wire	7	Solder Retention	Surface Mount	All	8 µin	0.203 µm	4.8 mm	0.189 in	Brass	Square	150 VDC	Solder	Header	Nylon Polyamide (PA)	Gold	0.049 in	1.25 mm	Male Pin	UL94 V-0	1	Shrouded - 3 Wall
Hirose Electric Co Ltd DF13C-6P-1.25V(90)

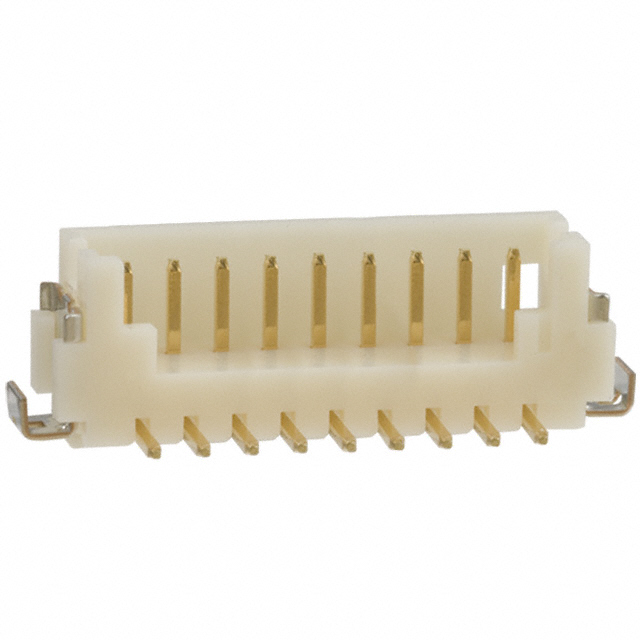

Hirose Electric Co Ltd DF13C-9P-1.25V(50)	5.8 mm	Detent Lock	Beige	85 °C	-35 °C	Board to Cable/Wire	9	Solder Retention	Surface Mount	All	8 µin	0.203 µm	4.8 mm	0.189 in	Brass	Square	150 VDC	Solder	Header	Nylon Polyamide (PA)	Gold	0.049 in	1.25 mm	Male Pin	UL94 V-0	1	Shrouded - 3 Wall
Hirose Electric Co Ltd DF13C-9P-1.25V(21)	5.8 mm	Detent Lock	Beige	85 °C	-35 °C	Board to Cable/Wire	9	Solder Retention	Surface Mount	All			4.8 mm	0.189 in	Brass	Square	150 VDC	Solder	Header	Nylon Polyamide (PA)		0.049 in	1.25 mm	Male Pin	UL94 V-0	1	Shrouded - 3 Wall	Tin	39.4 µin	1 µm
Hirose Electric Co Ltd DF13C-8P-1.25V(90)
Hirose Electric Co Ltd DF13C-14P-1.25V(90)
Hirose Electric Co Ltd DF13C-9P-1.25V(51)	5.8 mm	Detent Lock	Beige	85 °C	-35 °C	Board to Cable/Wire	9	Solder Retention	Surface Mount	All	8 µin	0.203 µm	4.8 mm	0.189 in	Brass	Square	150 VDC	Solder	Header	Nylon Polyamide (PA)	Gold	0.049 in	1.25 mm	Male Pin	UL94 V-0	1	Shrouded - 3 Wall

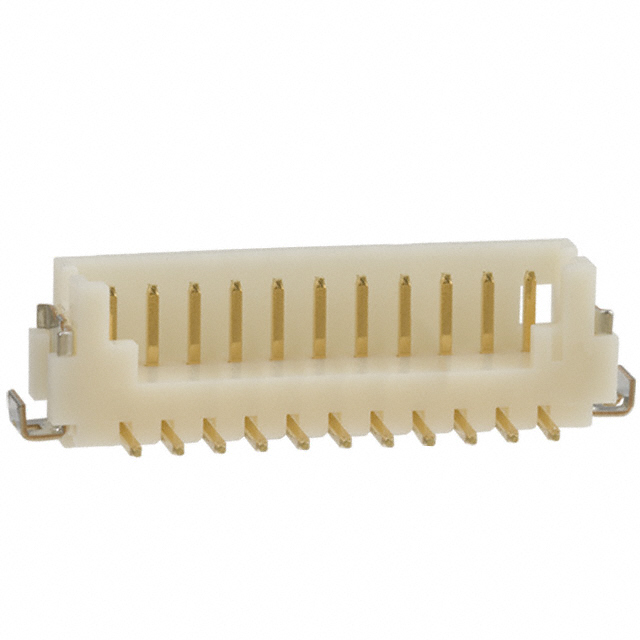

Hirose Electric Co Ltd DF13C-11P-1.25V(50)	5.8 mm	Detent Lock	Beige	85 °C	-35 °C	Board to Cable/Wire	11	Solder Retention	Surface Mount	All	8 µin	0.203 µm	4.8 mm	0.189 in	Brass	Square	150 VDC	Solder	Header	Nylon Polyamide (PA)	Gold	0.049 in	1.25 mm	Male Pin	UL94 V-0	1	Shrouded - 3 Wall
