AD9648 Series

14-Bit, 125 MSPS/105 MSPS, 1.8 V Dual Analog-to-Digital Converter

Catalog

14-Bit, 125 MSPS/105 MSPS, 1.8 V Dual Analog-to-Digital Converter

Part	Supplier Device Package	Configuration	Number of A/D Converters	Architecture	Ratio - S/H:ADC	Number of Inputs	Features	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Reference Type	Input Type	Mounting Type	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of Bits	Sampling Rate (Per Second)	Package / Case	Data Interface	Utilized IC / Part	Supplied Contents	Input Range

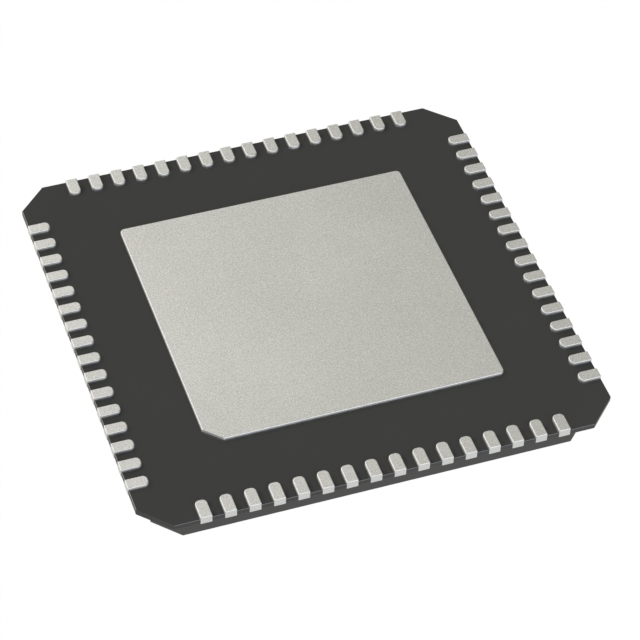

Analog Devices AD9648BCPZRL7-125	64-LFCSP-VQ (9x9)	S/H-ADC	2	Pipelined	1:1	2	Simultaneous Sampling	1.9 V	1.7 V	85 °C	-40 °C	External Internal	Differential	Surface Mount	1.7 V	1.9 V	14	125 M	64-VFQFN Exposed Pad CSP	LVDS - Parallel Parallel

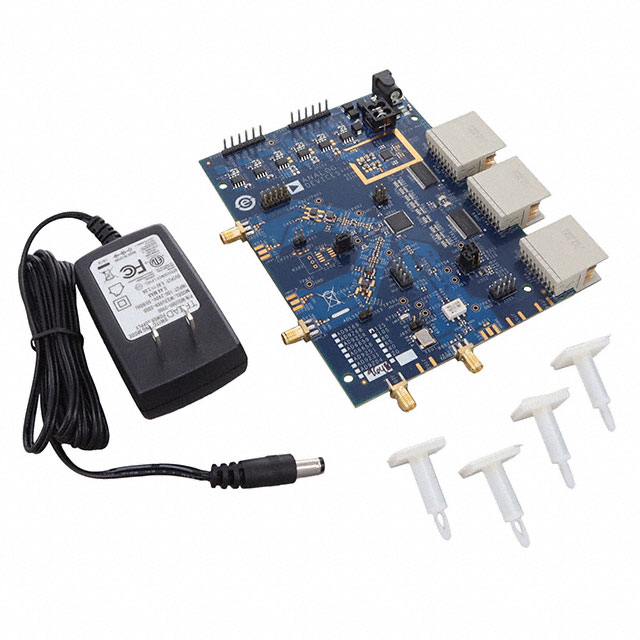

Analog Devices AD9648-125EBZ			2														14			Serial	AD9648	Board(s)	2 Vpp
Analog Devices AD9648TCPZ-125-EP	64-LFCSP (9x9)	S/H-ADC	2	Pipelined	1:1	2	Simultaneous Sampling	1.9 V	1.7 V	125 °C	-55 °C	External Internal	Differential	Surface Mount	1.7 V	1.9 V	14	125 M	64-WFQFN Exposed Pad CSP	LVDS - Parallel Parallel
Analog Devices AD9648BCPZ-125	64-LFCSP-VQ (9x9)	S/H-ADC	2	Pipelined	1:1	2	Simultaneous Sampling	1.9 V	1.7 V	85 °C	-40 °C	External Internal	Differential	Surface Mount	1.7 V	1.9 V	14	125 M	64-VFQFN Exposed Pad CSP	LVDS - Parallel Parallel

Catalog

14-Bit, 125 MSPS/105 MSPS, 1.8 V Dual Analog-to-Digital Converter

Key Features

• 1.8 V analog supply operation

• 1.8 V CMOS or LVDS outputs

• SNR = 74.5 dBFS at 70 MHz

• SFDR = 91 dBc at 70 MHz

• Low power: 106 mW/channel at 125 MSPS

• Differential analog input with 650 MHz bandwidth

• IF sampling frequencies to 200 MHz

• See data sheet for additional features

• DownloadAD9648-EP data sheet(pdf)

• Military temperature range: −55°C to +125°C

• Controlled manufacturing baseline

• Qualification data available on request

• V62/16606 DSCC Drawing Number

Description

The AD9648 is a monolithic, dual-channel, 1.8 V supply, 14-bit, 105 MSPS/125 MSPS analog-to-digital converter (ADC). It features a high performance sample-and-hold circuit and on-chip voltage reference. The product uses multistage differential pipeline architecture with output error correction logic to provide 14-bit accuracy at 125 MSPS data rates and to guarantee no missing codes over the full operating temperature range.The ADC contains several features designed to maximize flexibility and minimize system cost, such as programmable clock and data alignment and programmable digital test pattern generation. The available digital test patterns include built-in deterministic and pseudorandom patterns, along with custom user-defined test patterns entered via the serial port interface (SPI).A differential clock input controls all internal conversion cycles. An optional duty cycle stabilizer (DCS) compensates for wide variations in the clock duty cycle while maintaining excellent overall ADC performance.The digital output data is presented in offset binary, Gray code, or twos complement format. A data output clock (DCO) is provided for each ADC channel to ensure proper latch timing with receiving logic. Output logic levels of 1.8 V CMOS or LVDS are supported. Output data can also be multiplexed onto a single output bus.The AD9648 is available in a 64-lead RoHS compliant LFCSP and is specified over the industrial temperature range (−40°C to +85°C).ApplicationsCommunicationsDiversity radio systemsMultimode digital receiversGSM, EDGE, W-CDMA, LTE,CDMA2000, WiMAX, TD-SCDMAI/Q demodulation systemsSmart antenna systemsBroadband data applicationsBattery-powered instrumentsHand held scope metersPortable medical imagingUltrasoundRadar/LIDARProduct HighlightsThe AD9648 operates from a single 1.8 V analog power supply and features a separate digital output driver supply to accommodate 1.8 V CMOS or LVDS logic families.The patented sample-and-hold circuit maintains excellent performance for input frequencies up to 200 MHz and is designed for low cost, low power, and ease of use.A standard serial port interface supports various product features and functions, such as data output formatting, internal clock divider, power-down, DCO/data timing and offset adjustments.The AD9648 is packaged in a 64-lead RoHS compliant LFCSP that is pin compatible with theAD9650/AD9269/AD926816-bit ADC’s, theAD925814-bit ADC, theAD9628/AD923112-bit ADC’s, and theAD9608/AD920410-bit ADC’s, enabling a simple migration path between 10-bit and 16-bit converters sampling from 20 MSPS to 125 MSPS.
