1N3595 Series

Catalog

SIGNAL OR COMPUTER DIODE DO-35 ROHS COMPLIANT: YES

Part	Voltage - Forward (Vf) (Max)	Current - Reverse Leakage	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Voltage - DC Reverse (Vr) (Max)	Technology	Package Name	Mounting Type	Reverse Recovery Time (trr)	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Current - Average Rectified (Io)	Package / Case	Grade	Qualification	Speed - Fast Recovery (Minimum)	Speed - Recovery Current	Speed - Recovery Time
Microchip Technology 1N3595-1E3	1 V	1 nA	175 °C	-65 °C	125 V	Standard	DO-204AH (DO-35)	Through Hole	3 µs	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	150 mA	Axial DO-204AH DO-35
Microchip Technology JANTX1N3595A-1	920 mV	2 nA	175 °C	-65 °C	125 V	Standard	DO-204AH (DO-35)	Through Hole	3 µs	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	150 mA	Axial DO-204AH DO-35	Military	MIL-S-19500-241
Microchip Technology 1N3595AUS
Microchip Technology JAN1N3595AUS	920 mV	2 nA	175 °C	-65 °C	125 V	Standard	DO-204AH (DO-35)	Through Hole	3 µs	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	150 mA	Axial DO-204AH DO-35	Military	241 MIL-PRF-19500

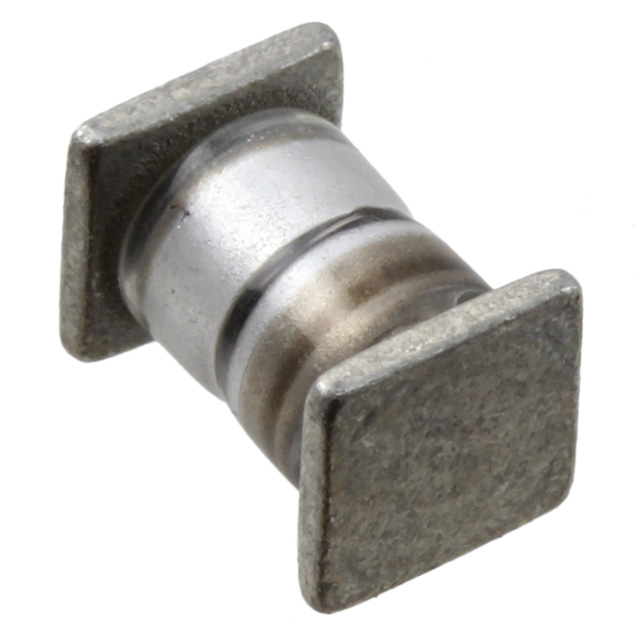

Microchip Technology JANS1N3595US	1 V	1 nA	150 °C	-65 °C		Standard	B SQ-MELF	Surface Mount	3 µs	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	200 mA	B SQ-MELF	Military	MIL-S-19500-241

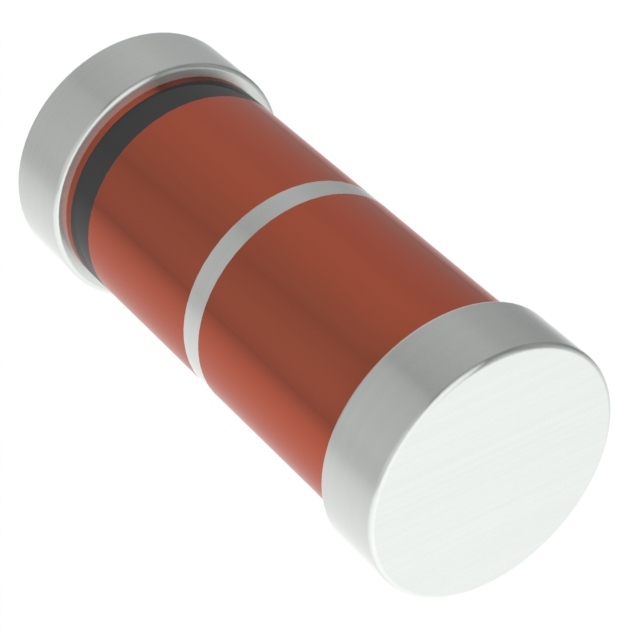

Microchip Technology JAN1N3595UR-1	920 mV	1 nA	175 °C	-65 °C	125 V	Standard	DO-213AA	Surface Mount	3 µs	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	150 mA	DO-213AA	Military	241 MIL-PRF-19500
Microchip Technology 1N3595US	1 V	1 nA	150 °C	-65 °C		Standard	B SQ-MELF	Surface Mount	3 µs		Standard Recovery		4 A	B SQ-MELF			200 mA 500 ns	200 mA 200 mA	500 ns
Microchip Technology JANTX1N3595-1	920 mV	1 nA	175 °C	-65 °C	125 V	Standard	DO-204AH (DO-35)	Through Hole	3 µs	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	150 mA	Axial DO-204AH DO-35	Military	MIL-S-19500-241
Microchip Technology JANS1N3595-1	1 V	1 nA	175 °C	-65 °C	125 V	Standard	DO-204AH (DO-35)	Through Hole	3 µs	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	200 mA	Axial DO-204AH DO-35	Military	MIL-S-19500-241
Microchip Technology JANTX1N3595US	1 V	1 nA	150 °C	-65 °C		Standard	B SQ-MELF	Surface Mount	3 µs	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	200 mA	B SQ-MELF	Military	MIL-S-19500-241
