1N3070 Series

Catalog

DIODE GEN PURP 175V 100MA DO7

Part	Current - Reverse Leakage	Package Name	Package / Case	Reverse Recovery Time (trr)	Qualification	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Grade	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Voltage - Forward (Vf) (Max)	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max)	Technology	Mounting Type

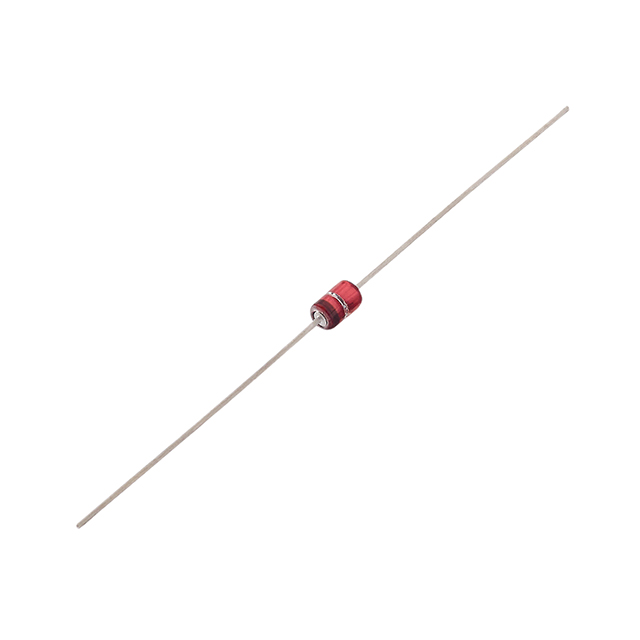

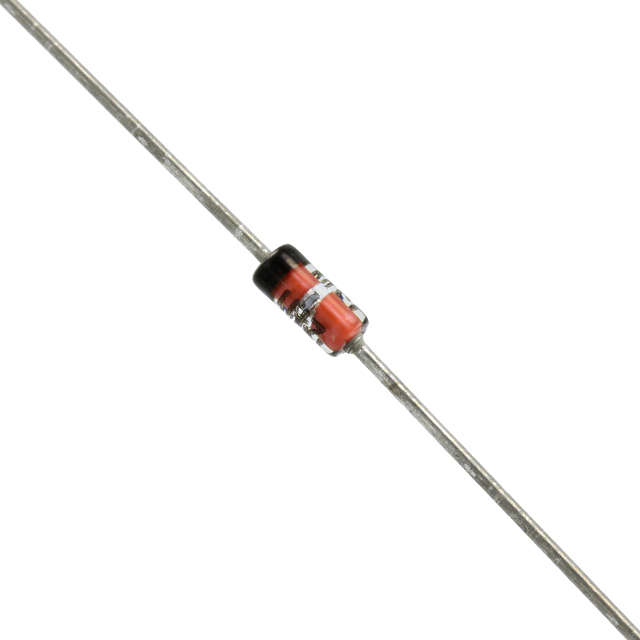

Microchip Technology JANTXV1N3070UR-1	100 nA	DO-7	Axial DO-204AA DO-7	50 µs	169 MIL-PRF-19500	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Military	175 °C	-65 °C	1 V	100 mA	175 V	Standard	Through Hole
Microchip Technology 1N3070-1		DO-7	Axial DO-204AA DO-7	50 ns		200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA		175 °C	-65 °C	1 V	100 mA	175 V	Standard	Through Hole
Microchip Technology 1N3070UR-1	100 nA	DO-7	Axial DO-204AA DO-7	50 ns		200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA		175 °C	-65 °C	1 V	100 mA	175 V	Standard	Through Hole

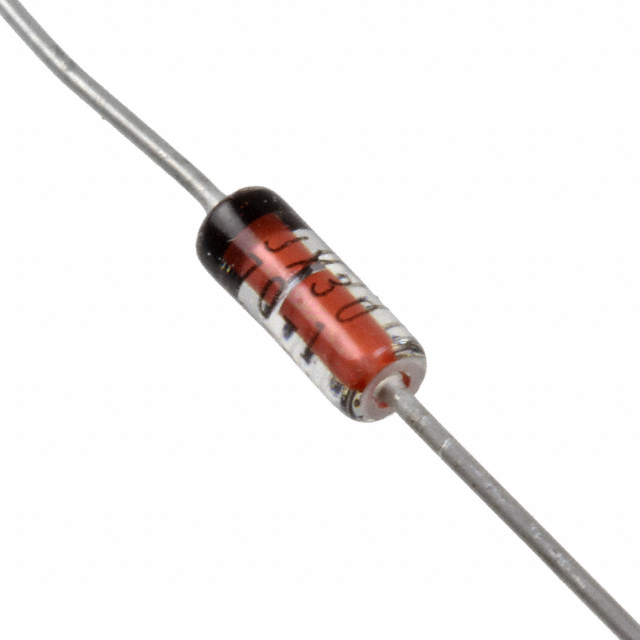

Microchip Technology JANTX1N3070-1	100 nA	DO-7	Axial DO-204AA DO-7	50 ns	169 MIL-PRF-19500	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	Military	175 °C	-65 °C	1 V	100 mA	175 V	Standard	Through Hole
