BYT230 Series

Catalog

DIODE MODULE GP 400V 30A ISOTOP

Part	Diode Configuration	Technology	Speed	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature - Junction [Max]	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Voltage - Forward (Vf) (Max) @ If [Max]	Reverse Recovery Time (trr)
STMicroelectronics BYT230PIV-400	2 Independent	Standard	200 mA 500 ns	Chassis Mount	ISOTOP	ISOTOP®	150 °C	30 A	35 µA	400 V	1.5 V
STMicroelectronics BYT230PIV-1000	2 Independent	Standard	200 mA 500 ns	Chassis Mount	ISOTOP	ISOTOP®	150 °C	30 A	100 µA	1000 V		1.9 V	165 ns

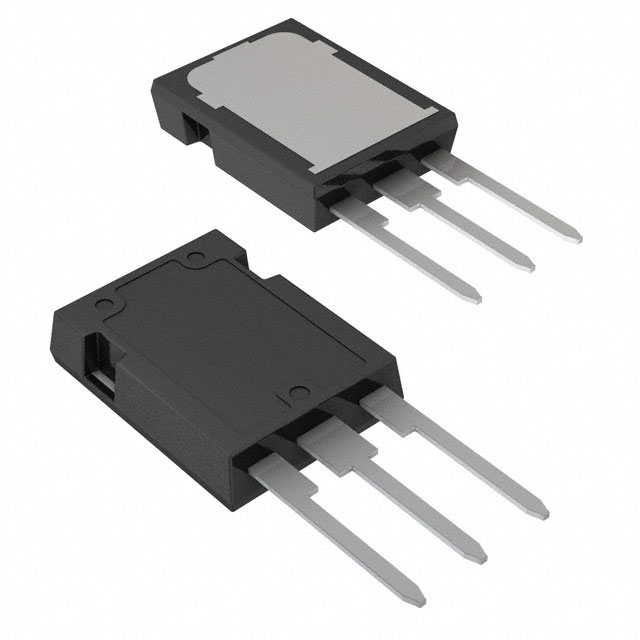

STMicroelectronics BYT230Y-400	1 Pair Common Cathode	Standard	200 mA 500 ns	Through Hole	TO-247-3	MAX247™	150 °C	30 A	35 µA	400 V	1.5 V
