SCHOTTKY-RECTIFIER-200V Series

600V Ultrafast Soft Recovery Rectifier Diode

Catalog

600V Ultrafast Soft Recovery Rectifier Diode

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Reverse Recovery Time (trr)	Mounting Type	Current - Average Rectified (Io) (per Diode)	Technology	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Speed	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]
Microchip Technology APT2X60DQ120J	100 µA	ISOTOP®	265 ns	Chassis Mount	60 A	Standard	3.1 V	2 Independent	200 mA 500 ns	SOT-227-4 miniBLOC	1.2 kV
Microchip Technology APT2X60D60J	250 µA	ISOTOP®	130 ns	Chassis Mount	60 A	Standard	1.8 V	2 Independent	200 mA 500 ns	SOT-227-4 miniBLOC	600 V
Microchip Technology APT30S20BG	500 µA	TO-247 [B]	55 ns	Through Hole		Schottky			200 mA 500 ns	TO-247-2	200 V	45 A	150 °C	-55 °C	850 mV
Microchip Technology APT2X60DQ60J	25 µA	ISOTOP®	160 ns	Chassis Mount	60 A	Standard	2.3 V	2 Independent	200 mA 500 ns	SOT-227-4 miniBLOC	600 V

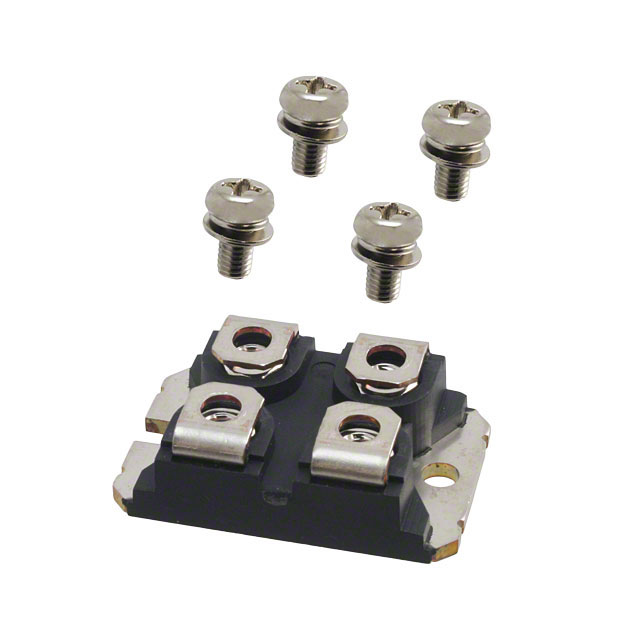

Microchip Technology APT2X60S20J	1 mA	SOT-227 (ISOTOP®)		Chassis Mount	75 A	Schottky	900 mV	2 Independent	200 mA 500 ns	SOT-227-4 miniBLOC	200 V		150 °C	-55 °C
Microchip Technology APT2X30S20J	500 µA	SOT-227 (ISOTOP®)	55 ns	Chassis Mount	45 A	Schottky		2 Independent	200 mA 500 ns	SOT-227-4 miniBLOC	200 V		150 °C	-55 °C	850 mV
Microchip Technology APT2X101S20J	2 mA	ISOTOP®	70 ns	Chassis Mount	120 A	Schottky	950 mV	2 Independent	200 mA 500 ns	ISOTOP	200 V		175 ░C	-55 C
Microchip Technology APT2X31S20J	500 µA	ISOTOP®	55 ns	Chassis Mount	45 A	Schottky		2 Independent	200 mA 500 ns	SOT-227-4 miniBLOC	200 V				850 mV
Microchip Technology APT60S20BG	1 mA	TO-247 [B]	55 ns	Through Hole		Schottky	900 mV		200 mA 500 ns	TO-247-2	200 V	75 A	150 °C	-55 °C
Microchip Technology APT30S20BCTG	500 µA	TO-247 [B]	55 ns	Through Hole	45 A	Schottky		1 Pair Common Cathode	200 mA 500 ns	TO-247-3	200 V		150 °C	-55 °C	850 mV

Catalog

600V Ultrafast Soft Recovery Rectifier Diode

Key Features

• * Ultrafast recovery times

• * Soft recovery

• * Low leakage current

• * Avalanche energy rated

• * AEC-Q101 qualified (FRED DQ in TO-247, TO-220 and TO-264)

• * Higher switching frequency

• * Low switching losses

• * Low noise (EMI) switching

• * Easy to parallel

• * Improved system reliability

• * AC-DC/DC-DC converters

• * Inverters

• * Switch mode power supply

• * H/EV chargers

• * H/EV onboard chargers & powertrain

Description

Microchip offers four series of discrete diode products: the medium-speed medium Vf D series, the high-speed DQ series, the silicon Schottky S series and the SiC Schottky MSCxxxSDxxxx series. These series of diodes are designed to provide high-quality solutions to a wide range of high-voltage, high-power application requirements, ranging from fast recovery for continuous conduction mode power factor correction to low conduction loss for output rectification. FRED-600V is a family of 600V Ultrafast Soft Recovery Rectifier Diode available in a variety of current and package options
