SOT-227-4, miniBLOC

Discrete Semiconductor Products

APT2X60D60J

Active

Microchip Technology

600V ULTRAFAST SOFT RECOVERY RECTIFIER DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHigh-Voltage Power Discretes and Modules APT15D60BCTG FRED D 600 V 15 A TO-247 Datasheet +5

SOT-227-4, miniBLOC

Discrete Semiconductor Products

APT2X60D60J

Active

Microchip Technology

600V ULTRAFAST SOFT RECOVERY RECTIFIER DIODE

Deep-Dive with AI

DocumentsHigh-Voltage Power Discretes and Modules APT15D60BCTG FRED D 600 V 15 A TO-247 Datasheet +5

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APT2X60D60J

Current - Average Rectified (Io) (per Diode)	60 A
Current - Reverse Leakage @ Vr	250 µA
Diode Configuration	2 Independent
Mounting Type	Chassis Mount
Package / Case	SOT-227-4, miniBLOC
Reverse Recovery Time (trr)	130 ns
Speed	200 mA, 500 ns
Supplier Device Package	ISOTOP®
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 23.96
		100	$ 19.44
Microchip Direct	TUBE	1	$ 23.96
		100	$ 20.69
		250	$ 19.92
		500	$ 19.43
		1000	$ 18.96
		5000	$ 18.34

Description

General part information

FRED-600V Series

Microchip offers four series of discrete diode products: the

medium-speed medium Vf D series, the high-speed

DQ series, the silicon Schottky S series and the SiC Schottky MSCxxxSDxxxx

Documents

Technical documentation and resources

High-Voltage Power Discretes and Modules

APT15D60BCTG FRED D 600 V 15 A TO-247 Datasheet

APT15DQ60BG, APT15DQ60SG FRED DQ 600 V 15 A TO-247 Datasheet

APT15D60KG FRED D 600 V 15 A TO-220 Datasheet

APT15DQ60BCTG FRED DQ 600 V 15 A TO-247 Datasheet

APT15D60BG FRED D 600 V 15 A TO-247 Datasheet

APT15D60BCAG FRED D 600 V 15 A TO-247 Datasheet

FRED-600V Series

600V Ultrafast Soft Recovery Rectifier Diode

Part	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Speed	Package / Case	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)
Microchip Technology APT2X61D60J	130 ns	600 V	Standard	200 mA 500 ns	SOT-227-4 miniBLOC	ISOTOP®	Chassis Mount	1.8 V	250 µA	2 Independent	60 A
Microchip Technology APT2X30D60J	85 ns	600 V	Standard	200 mA 500 ns	SOT-227-4 miniBLOC	ISOTOP®	Chassis Mount	1.8 V	250 µA	2 Independent	30 A
Microchip Technology APT30DQ60BHBG		600 V	Standard	200 mA	TO-247-3	TO-247	Through Hole	2.4 V		1 Pair Series Connection	30 A	Standard Recovery >500ns	175 ░C	-55 C

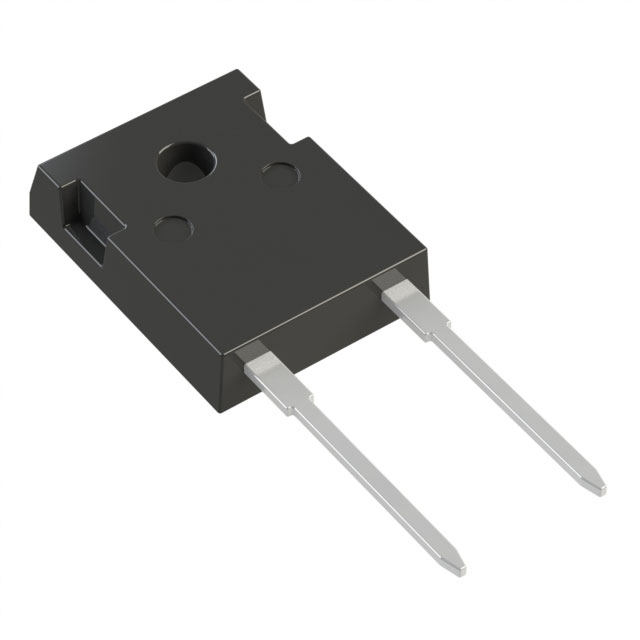

Microchip Technology APT100D60BG		600 V	Standard	200 mA	TO-247-2	TO-247	Through Hole		250 µA			Standard Recovery >500ns	150 °C	-55 °C	2 V	100 A
Microchip Technology APT15DS60BG	14 ns	600 V	Standard	200 mA 500 ns	TO-247-3	TO-247 [B]	Through Hole	4 V	150 µA	1 Pair Series Connection	13 A		150 °C	-55 °C

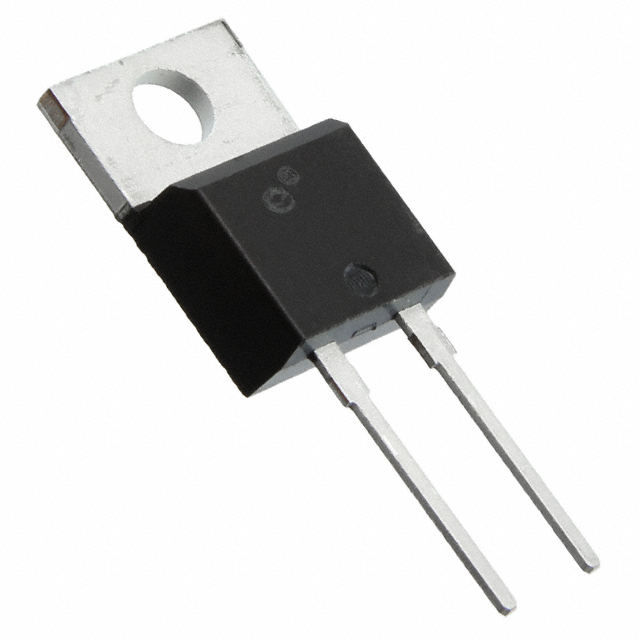

Microchip Technology APT15D60KG	80 ns	600 V	Standard	200 mA 500 ns	TO-220-2	TO-220-2	Through Hole		250 µA				175 ░C	-55 C	1.8 V	15 A
Microchip Technology APT15DQ60KG	19 ns	600 V	Standard	200 mA 500 ns	TO-220-2	TO-220-2	Through Hole	2.4 V	25 µA				175 ░C	-55 C		15 A
Microchip Technology APT15D60BG	80 ns	600 V	Standard	200 mA 500 ns	TO-247-2	TO-247	Through Hole		150 µA				175 ░C	-55 C	1.8 V	15 A
Microchip Technology APT2X101D60J	180 ns	600 V	Standard	200 mA 500 ns	SOT-227-4 miniBLOC	ISOTOP®	Chassis Mount	1.8 V	250 µA	2 Independent	100 A		175 ░C	-55 C
Microchip Technology APT15DQ60BG	19 ns	600 V	Standard	200 mA 500 ns	TO-247-3	TO-247 [B]	Through Hole	2.4 V	25 µA				175 ░C	-55 C		15 A
