DF1EC Series

Catalog

CONN HEADER VERT 13POS 2.5MM

Part	Contact Type	Mated Stacking Heights	Insulation Color	Number of Positions Loaded	Mounting Type	Number of Positions	Shrouding	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Connector Type	Insulation Material	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Style	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. DF1EC-13P-2.5DSA	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	13	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square
Hirose Electric USA, Inc. DF1EC-6P-2.5DSA(73)
Hirose Electric USA, Inc. DF1EC-13P-2.5DSA(36)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	13	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	0.203 Ám	8 Áin	1	0.425 in	10.8 mm	2.5 mm	0.098 in		-35 °C	85 °C	Brass	Board to Cable/Wire	Square	Gold
Hirose Electric USA, Inc. DF1EC-14P-2.5DSA(35)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	14	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square		1 çm	39.4 çin

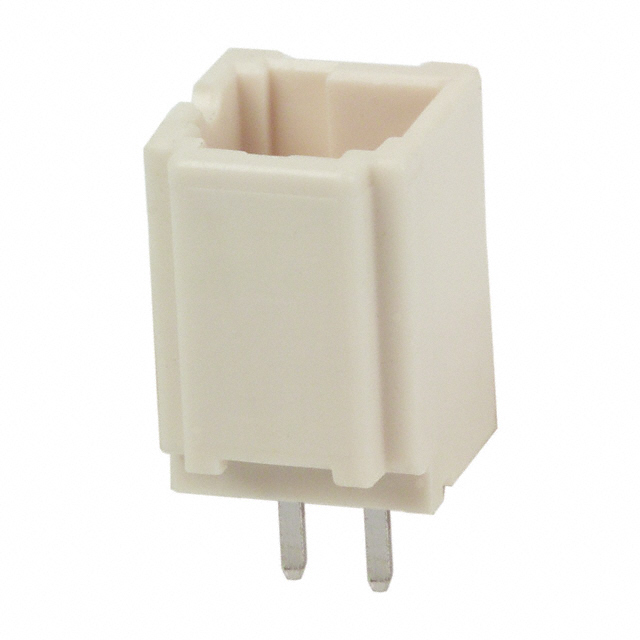

Hirose Electric USA, Inc. DF1EC-2P-2.5DSA(05)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	2	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square

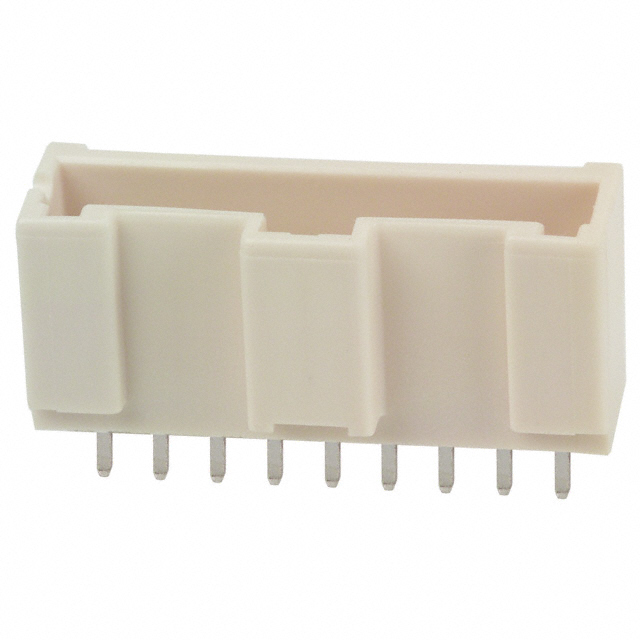

Hirose Electric USA, Inc. DF1EC-9P-2.5DSA(05)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	9	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square

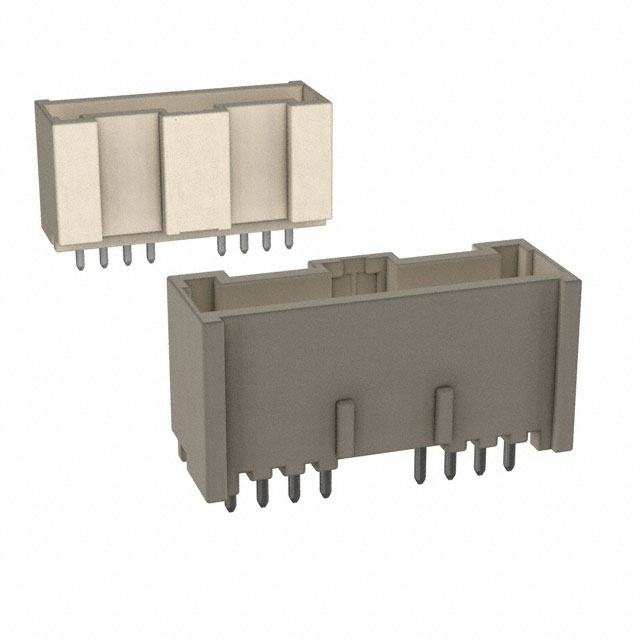

Hirose Electric USA, Inc. DF1EC-8P-2.5DSA(36)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	8	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	0.203 Ám	8 Áin	1	0.425 in	10.8 mm	2.5 mm	0.098 in		-35 °C	85 °C	Brass	Board to Cable/Wire	Square	Gold

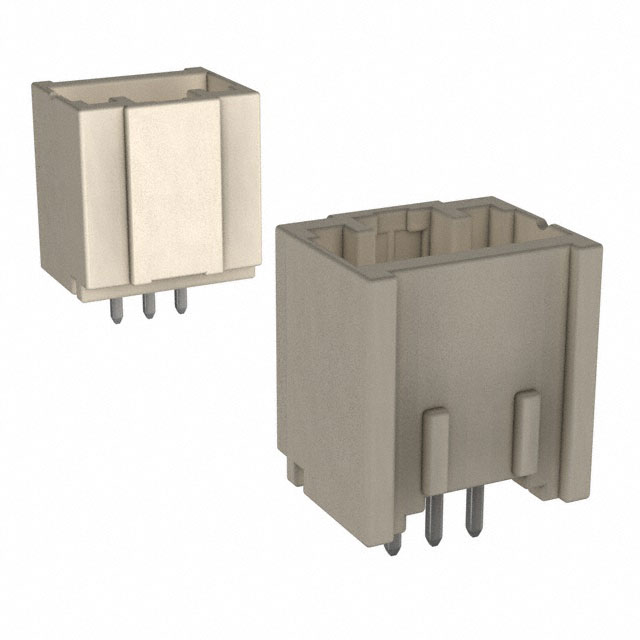

Hirose Electric USA, Inc. DF1EC-3P-2.5DSA(36)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole		Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	0.203 Ám	8 Áin	1	0.425 in	10.8 mm	2.5 mm	0.098 in		-35 °C	85 °C	Brass	Board to Cable/Wire	Square	Gold
Hirose Electric USA, Inc. DF1EC-4P-2.5DSA(35)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	4	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square		1 çm	39.4 çin

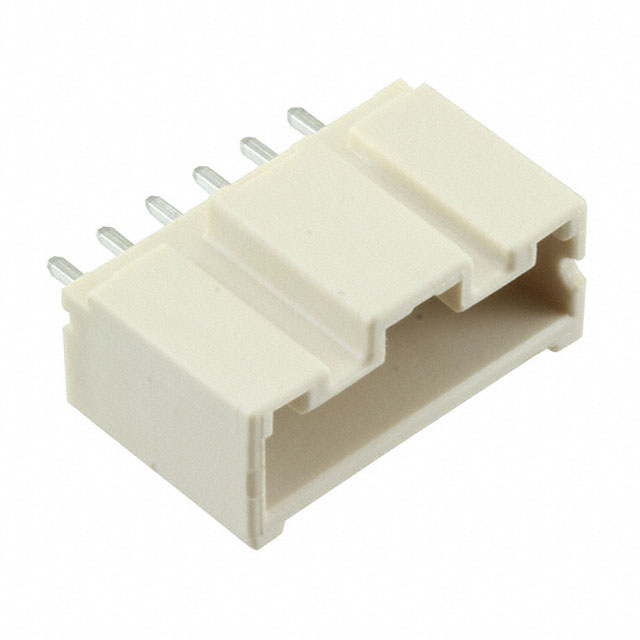

Hirose Electric USA, Inc. DF1EC-6P-2.5DSA(35)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	6	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square		1 çm	39.4 çin
