AD5340 Series

Catalog

IC DAC 12BIT V-OUT 24TSSOP

Part	INL/DNL (LSB)	Supplier Device Package	Architecture	Output Type	Data Interface	Package / Case	Package / Case	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Settling Time	Number of Bits	Reference Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	DAC Type	Number of DAC's	Utilized IC / Part	Contents
Analog Devices AD5340BRUZ-REEL	0.2 LSB 2 LSB	24-TSSOP	String DAC	Voltage - Buffered	Parallel	24-TSSOP	0.173 in 4.4 mm	5.5 V	2.5 V	2.5 V	5.5 V	10 µs	12 bits	External	Surface Mount	-40 °C	105 ░C
Analog Devices AD5340BRUZ	0.2 LSB 2 LSB	24-TSSOP	String DAC	Voltage - Buffered	Parallel	24-TSSOP	0.173 in 4.4 mm	5.5 V	2.5 V	2.5 V	5.5 V	10 µs	12 bits	External	Surface Mount	-40 °C	105 ░C

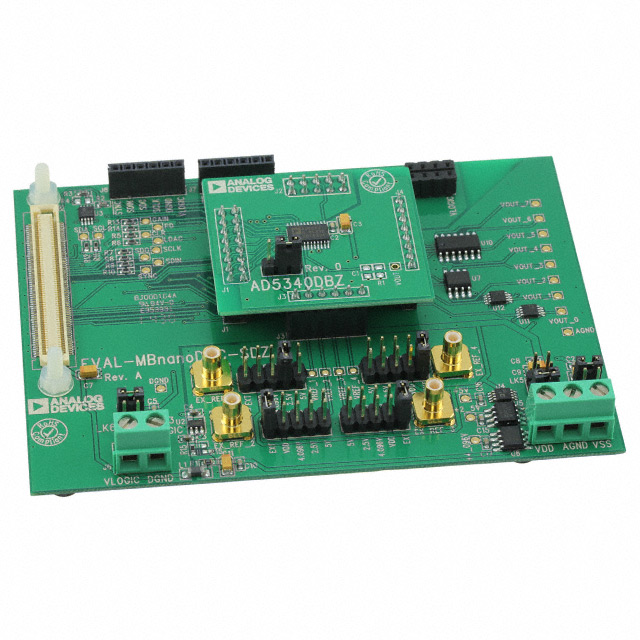

Analog Devices EVAL-AD5340DBZ					Parallel							8 µs	12 bits					Voltage	1	AD5340	Board(s)
Analog Devices AD5340BRUZ-REEL7	0.2 LSB 2 LSB	24-TSSOP	String DAC	Voltage - Buffered	Parallel	24-TSSOP	0.173 in 4.4 mm	5.5 V	2.5 V	2.5 V	5.5 V	10 µs	12 bits	External	Surface Mount	-40 °C	105 ░C
