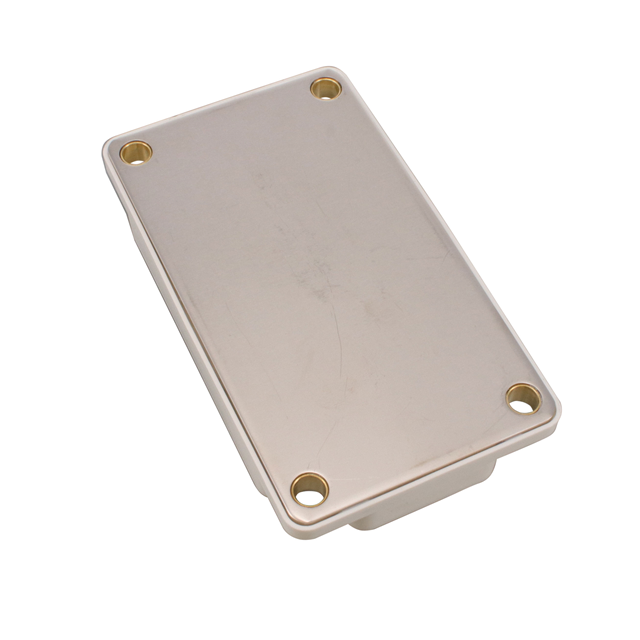

MSCDC600A170AG-Module Series

1700V, 600A, SP6C Phase Leg mSiC™ Diode Module

Catalog

1700V, 600A, SP6C Phase Leg mSiC™ Diode Module

Part	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Reverse Recovery Time (trr)	Speed	Technology	Package / Case	Current - Reverse Leakage @ Vr
Microchip Technology MSCDC600A170AG	600 A	1 Pair Series Connection	-40 °C	175 ░C	1700 V	SP6C	1.8 V	Chassis Mount	0 ns	No Recovery Time	SiC (Silicon Carbide) Schottky	Module

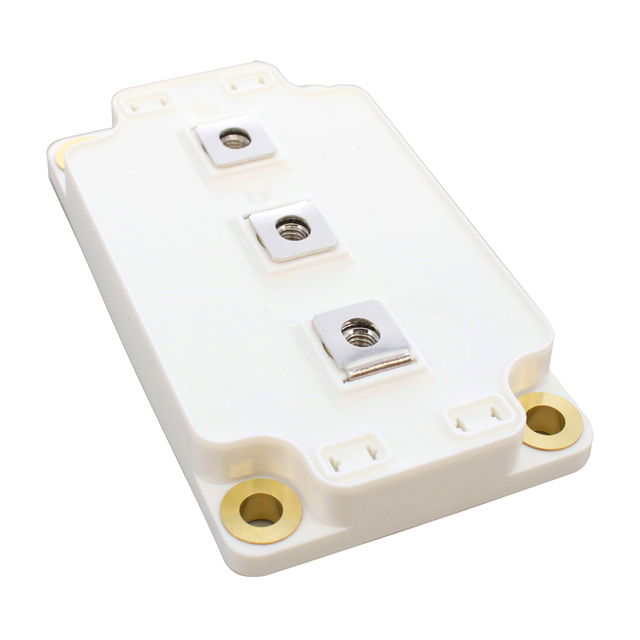

Microchip Technology MSCDC600A120AG	600 A	1 Pair Series Connection	-40 °C	175 ░C	1.2 kV	SP6	1.8 V	Chassis Mount	0 ns	No Recovery Time	SiC (Silicon Carbide) Schottky	Module	2.4 mA

Catalog

1700V, 600A, SP6C Phase Leg mSiC™ Diode Module

Key Features

- Configuration: Phase Leg

- VRRM (V): 1700

- VF (V): 1.5

- Current (A) Tc=80C: 600

- Silicon Type: SiC Diode

- Package: SP6C

Description

* SiC Schottky Diode * Zero reverse recovery * Zero forward recovery * Temperature Independent switching behavior * Positive temperature coefficient on VF * Low stray inductance * High efficiency converter * Outstanding performance at high frequency operation * Stable temperature behavior * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * RoHS Compliant
