RM12BR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT FMALE 4P SOLDER CUP
| Part | Voltage Rating | Contact Finish - Mating | Mounting Feature | Contact Material | Primary Material | Orientation | Fastening Type | Color | Connector Type | Number of Positions | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert [custom] | Shell Material | Mounting Type | Material Flammability Rating | Insert Material | Current Rating (Amps) | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

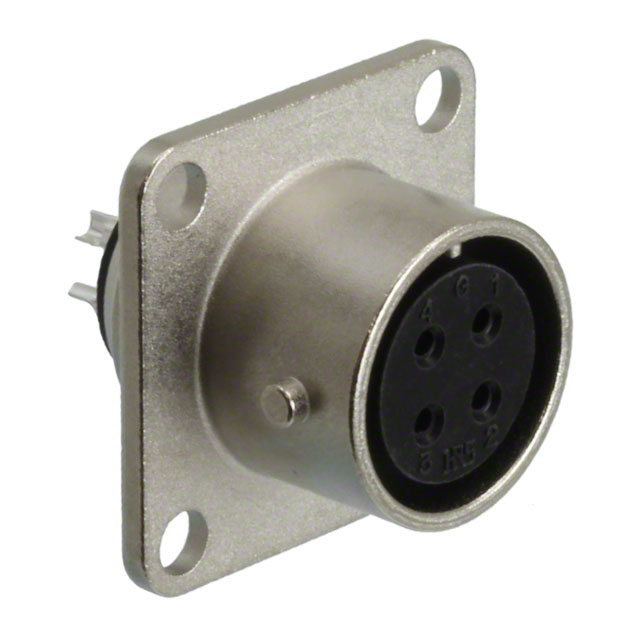

 Hirose Electric Co Ltd | 500 VAC 700 VDC | Silver | Flange | Copper Alloy | Metal | Keyed | Bayonet Lock | Silver | Receptacle Female Sockets | 4 | Nickel | 85 °C | -25 °C | 12 | Zinc Alloy | Panel Mount | UL94 V-0 | Diallyl Phthalate (DAP) | 5 A | |||
Hirose Electric Co Ltd | 500 VAC 700 VDC | Silver | Flange | Copper Alloy | Metal | Keyed | Bayonet Lock | Silver | Receptacle Female Sockets | Nickel | 85 °C | -25 °C | 12 | Zinc Alloy | Panel Mount | UL94 V-0 | Diallyl Phthalate (DAP) | 5 A | Unshielded | |||

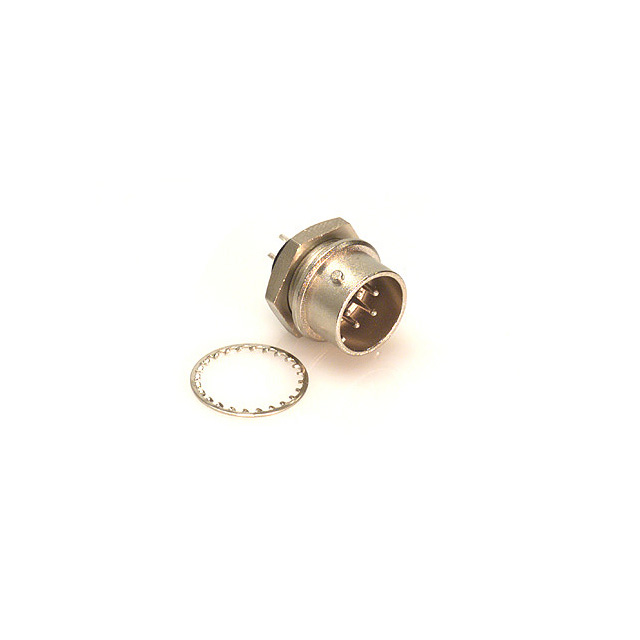

 Hirose Electric Co Ltd | 350 VAC 490 VDC | Silver | Bulkhead - Rear Side Nut | Copper Alloy | Metal | Keyed | Bayonet Lock | Silver | Receptacle Male Pins | 5 | Nickel | 85 °C | -25 °C | 12 | Zinc Alloy | Panel Mount | UL94 V-0 | Diallyl Phthalate (DAP) | 5 A | 78.7 µin | 2 µm | |

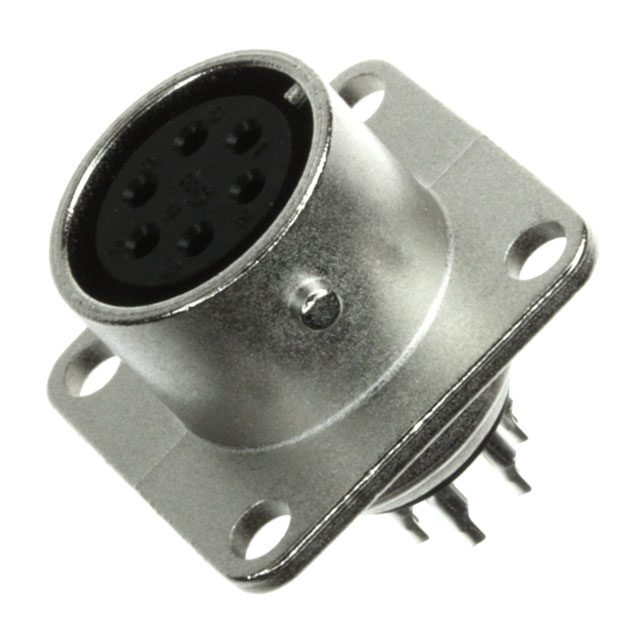

 Hirose Electric Co Ltd | 350 VAC 490 VDC | Silver | Flange | Copper Alloy | Metal | Keyed | Bayonet Lock | Silver | Receptacle Female Sockets | 6 | Nickel | 85 °C | -25 °C | 12 | Zinc Alloy | Panel Mount | UL94 V-0 | Polyphenylene Sulfide (PPS) | 5 A | 196.9 µin | 5 µm | |
 Hirose Electric Co Ltd | 500 VAC 700 VDC | Bulkhead - Rear Side Nut | Keyed | Bayonet Lock | Receptacle Male Pins | 85 °C | -25 °C | 12 | Panel Mount | 5 A | ||||||||||||
Hirose Electric Co Ltd | 350 VAC 490 VDC | Flange | Keyed | Bayonet Lock | Receptacle Female Sockets | 6 | 85 °C | -25 °C | 12 | Panel Mount | 5 A | |||||||||||

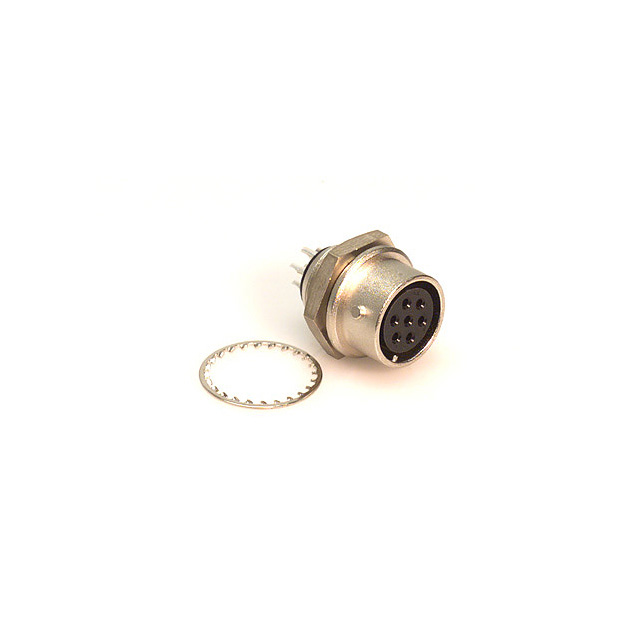

 Hirose Electric Co Ltd | 350 VAC 490 VDC | Bulkhead - Rear Side Nut | Keyed | Bayonet Lock | Receptacle Female Sockets | 7 | 85 °C | -25 °C | 12 | Panel Mount | 5 A | |||||||||||
Hirose Electric Co Ltd | 500 VAC 700 VDC | Silver | Bulkhead - Rear Side Nut | Copper Alloy | Metal | Keyed | Bayonet Lock | Silver | Receptacle Male Pins | Nickel | 85 °C | -25 °C | 12 | Zinc Alloy | Panel Mount | UL94 V-0 | Diallyl Phthalate (DAP) | 5 A | 78.7 µin | 2 µm | ||
 Hirose Electric Co Ltd | 500 VAC 700 VDC | Silver | Bulkhead - Rear Side Nut | Copper Alloy | Metal | Keyed | Bayonet Lock | Silver | Receptacle Female Sockets | Nickel | 85 °C | -25 °C | 12 | Zinc Alloy | Panel Mount | UL94 V-0 | Diallyl Phthalate (DAP) | 5 A | 196.9 µin | 5 µm | ||
Hirose Electric Co Ltd | 600 VAC 840 VDC | Silver | Bulkhead - Rear Side Nut | Copper Alloy | Metal | Keyed | Bayonet Lock | Silver | Receptacle Female Sockets | 2 | Nickel | 85 °C | -25 °C | 12 | Zinc Alloy | Panel Mount | UL94 V-0 | Diallyl Phthalate (DAP) | 5 A | Unshielded |
