20-35W0 Series
Manufacturer: Aries Electronics
Beta
⌘K

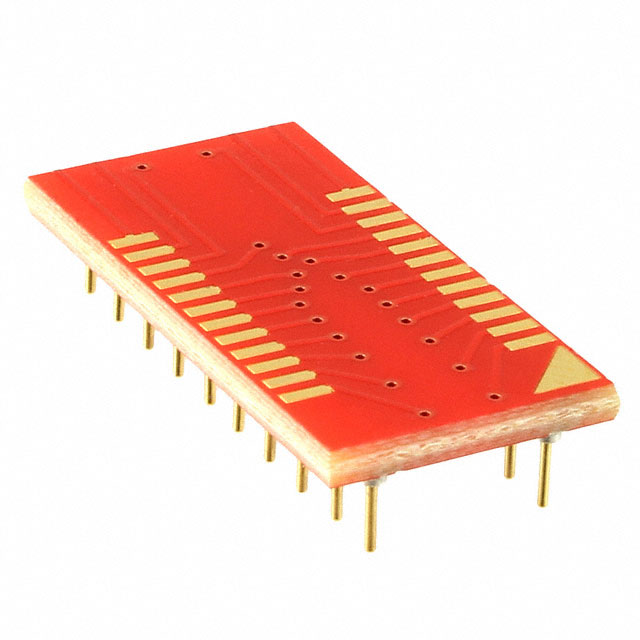

SOCKET ADAPT SOIC-W TO 20DIP 0.3
| Part | Material | Pitch | Pitch | Number of Positions | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package Accepted | Board Thickness | Board Thickness | Board Thickness | Proto Board Type | Contact Material - Post [custom] | Termination Post Length | Termination Post Length | Contact Finish - Post | Termination | Pitch - Post | Pitch - Post | Board Material | Convert From (Adapter End) | Pitch - Mating | Pitch - Mating | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | FR4 Epoxy Glass | 0.05 in | 1.27 mm | 20 | 0.5 " | 12.7 mm | 2 in | 50.8 mm | SOIC | 1.57 mm | 0.062 " | 0.0625 in | SMD to DIP | |||||||||||||||
 Aries Electronics | Brass | 0.125 in | 3.18 mm | Tin-Lead | Solder | 0.1 in | 2.54 mm | FR4 Epoxy Glass | SOIC-W | 1.27 mm | 0.05 in | 7.62 mm | DIP | 0.3 in | Through Hole |
