AD4080 Series
Manufacturer: Analog Devices
Beta
⌘K

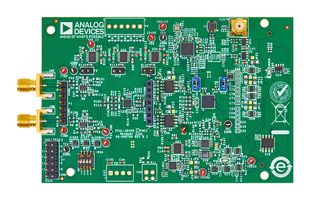

EVALUATION KIT, AD4080, 20BIT, 40 MSPS, ADC
| Part | Power (Typ) @ Conditions | Number of Bits | Utilized IC / Part | Sampling Rate (Per Second) | Input Range | Number of A/D Converters | Data Interface | Supplied Contents | Operating Temperature [Max] | Operating Temperature [Min] | Reference Type | Ratio - S/H:ADC | Architecture | Package / Case | Configuration | Supplier Device Package | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Number of Inputs | Mounting Type | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 79.3 mW | 20 | AD4080 | 40M | ±VREF | 1 | CMOS LVDS Serial SPI | Board(s) | |||||||||||||||
 Analog Devices | 20 | 40M | 1 | LVDS SPI | 85 °C | -40 °C | External | 0:1 | SAR | 49-LFBGA CSPBGA | ADC | 49-CSPBGA | 1.155 V 3.465 V | 1.045 V 3.135 V | 1.045 V 3.135 V | 1.155 V 3.465 V | 1 | Surface Mount | Differential | ||||
Analog Devices | 20 | 40M | 1 | LVDS SPI | 85 °C | -40 °C | External | 0:1 | SAR | 49-LFBGA CSPBGA | ADC | 49-CSPBGA | 1.155 V 3.465 V | 1.045 V 3.135 V | 1.045 V 3.135 V | 1.155 V 3.465 V | 1 | Surface Mount | Differential | ||||
Analog Devices | 20 | 40M | 1 | LVDS SPI | 85 °C | -40 °C | External | 0:1 | SAR | 49-LFBGA CSPBGA | ADC | 49-CSPBGA | 1.155 V 3.465 V | 1.045 V 3.135 V | 1.045 V 3.135 V | 1.155 V 3.465 V | 1 | Surface Mount | Differential |
