G60 Series

Catalog

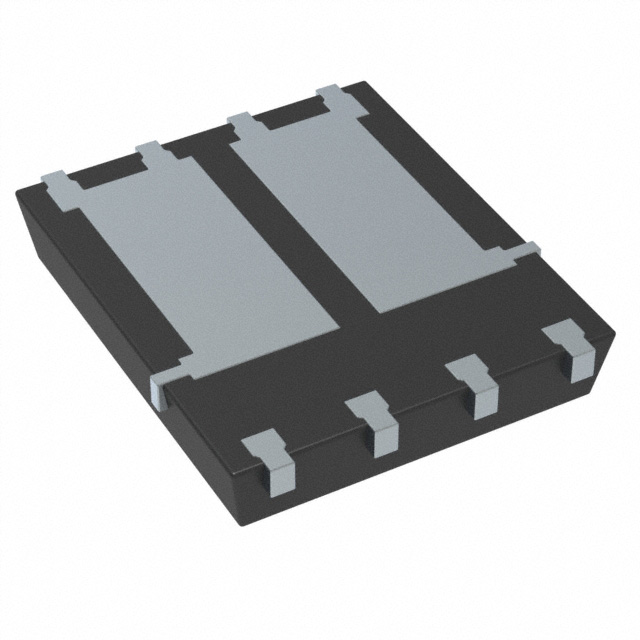

MOSFET 40V 35A 8DFN

Part	Vgs(th) (Max) @ Id	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Technology	Drain to Source Voltage (Vdss)	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package [custom]	Package / Case	Rds On (Max) @ Id, Vgs
Goford Semiconductor G60N04D52	2.5 V	20 W	27 nC	150 °C	-55 °C	1998 pF	Surface Mount	35 A	MOSFET (Metal Oxide)	40 V	4.9	5.75	8-DFN	8-PowerTDFN	9 mOhm
