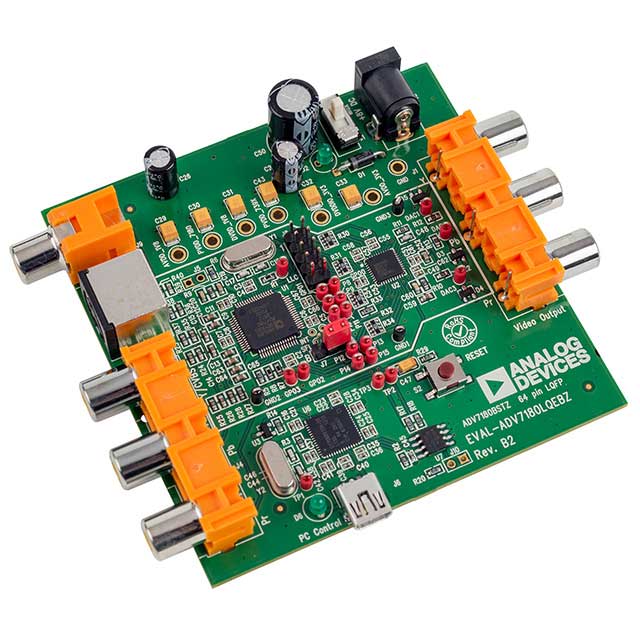

10-Bit, 4× Oversampling SDTV Video Decoder
Key Features
• AEC-Q100 qualified for automotive applications
• Worldwide NTSC/PAL/SECAM color demodulation support
• One 10-bit ADC, 4× oversampling for CVBS, 2× oversampling for
• Y/C mode, and 2× oversampling for YPrPb (per channel)
• 3 video input channels with on-chip antialiasing filter
• CVBS (composite), Y/C (S-Video), and YPrPb (component) video input support
• 5-line adaptive comb filters and CTI/DNR video enhancement
• Mini-TBC functionality provided by adaptive digital line length
• tracking (ADLLT), signal processing, and enhanced FIFO management
• Integrated AGC with adaptive peak white mode
• Macrovision copy protection detection
• NTSC/PAL/SECAM autodetection
• 8-bit ITU-R BT.656 YCrCb 4:2:2 output and HS, VS, and FIELD;
• the 48-Lead LQFP, 40-lead LFCSP, and 32-lead LFCSP use one
• pin to output VS or FIELD.
• 1.0 V analog input signal range
• Full-featured VBI data slicer with teletext support (WST)
• Power-down mode and ultralow sleep mode current
• 2-wire serial MPU interface (I2C compatible)
• Single 1.8 V supply possible
• 1.8 V analog, 1.8 V PLL, 1.8 V digital, 1.8 V to 3.3 V I/O supply
• −10°C to +70°C commercial temperature grade
• −40°C to +85°C industrial/automotive qualified temperature
• grade
• −40°C to +125°C temperature grade for automotive qualified
• 4 package types
• 64-lead, 10 mm × 10 mm, RoHS compliant LQFP
• 48-Lead, 7 mm × 7 mm, RoHS compliant LQFP
• 40-lead, 6 mm × 6 mm, RoHS compliant LFCSP
• 32-lead, 5 mm × 5 mm, RoHS compliant LFCSP
Description
AI
The ADV7180 automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL, and SECAM standards into 4:2:2 component video data compatible with the 8-bit ITU-R BT.656 interface standard.The simple digital output interface connects gluelessly to a wide range of MPEG encoders, codecs, mobile video processors, and Analog Devices, Inc., digital video encoders, such as theADV7391. External HS, VS, and FIELD signals provide timing references for LCD controllers and other video ASICs, if required. Accurate 10-bit analog-to-digital conversion provides professional quality video performance for consumer applications with true 8-bit data resolution. Three analog video input channels accept standard composite, S-video, or component video signals, supporting a wide range of consumer video sources. AGC and clamp-restore circuitry allow an input video signal peak-to-peak range to 1.0 V. Alternatively, these can be bypassed for manual settings.The line-locked clock output allows the output data rate, timing signals, and output clock signals to be synchronous, asynchronous, or line locked even with ±5% line length variation. Output control signals allow glueless interface connections in many applications. The ADV7180 is programmed via a 2-wire, serial bidirectional port (I2C®compatible) and is fabricated in a 1.8 V CMOS process. Its monolithic CMOS construction ensures greater functionality with lower power dissipation. LFCSP package options makes the decoder ideal for space-constrained portable applications. A 64-lead LQFP package is pin compatible with theADV7181C.The 48-Lead LQFP, 40-lead LFCSP, and 32-lead LFCSP use one pin to output VS or FIELD.ApplicationsDigital camcorders and PDAsLow cost SDTV PIP decoder for digital TVsMultichannel DVRs for video securityAV receivers and video transcodingPCI-/USB-based video capture and TV tuner cardsPersonal media players and recordersSmartphone/multimedia handsetsIn-car/automotive infotainment unitsRearview camera/vehicle safety systems
