RS1G Series

Catalog

MOSFET, P-CH, 40V, 78A, HSOP ROHS COMPLIANT: YES

Part	Rds On (Max) @ Id, Vgs	Technology	Drain to Source Voltage (Vdss)	Mounting Type	Package / Case	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Supplier Device Package	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Operating Temperature	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs [Max]

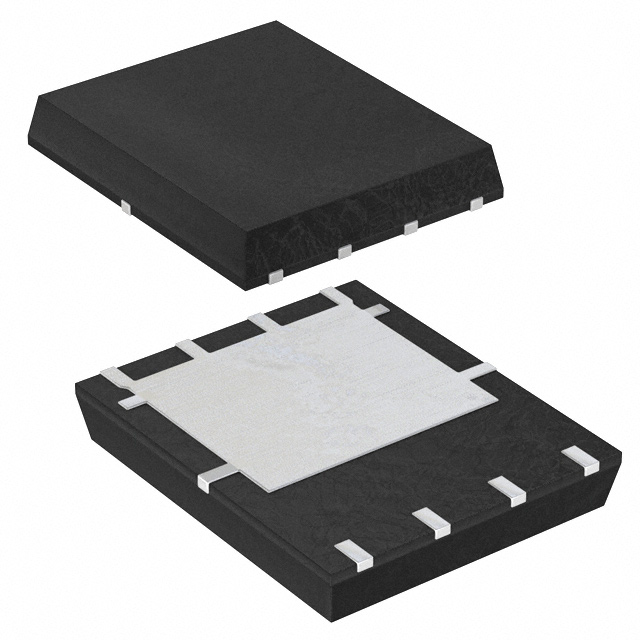

Rohm Semiconductor RS1G201ATTB1	5.2 mOhm	MOSFET (Metal Oxide)	40 V	Surface Mount	8-PowerTDFN	2.5 V	150 °C	-55 °C	6890 pF	130 nC	P-Channel	8-HSOP	20 V	20 A 78 A
Rohm Semiconductor RS1G300GNTB	2.5 mOhm	MOSFET (Metal Oxide)	40 V	Surface Mount	8-PowerTDFN	2.5 V				56.8 nC	N-Channel	8-HSOP	20 V	30 A	150 °C	4.5 V 10 V	4230 pF	3 W 35 W
Rohm Semiconductor RS1G180MNTB		MOSFET (Metal Oxide)	40 V	Surface Mount	8-PowerTDFN	2.5 V			1293 pF	19.5 nC	N-Channel	8-HSOP	20 V	18 A 80 A	150 °C	4.5 V 10 V		3 W 30 W	7 mOhm
