81-02 Series

Catalog

RFI FINGERSTOCK BECU UNPLAT ADH

Part	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Material	Plating	Attachment Method	Width [x]	Width [x]	Type	Height	Height	Height [z]	Height [z]	Width	Width	Length [x]	Length [x]	Width [y]	Width [y]

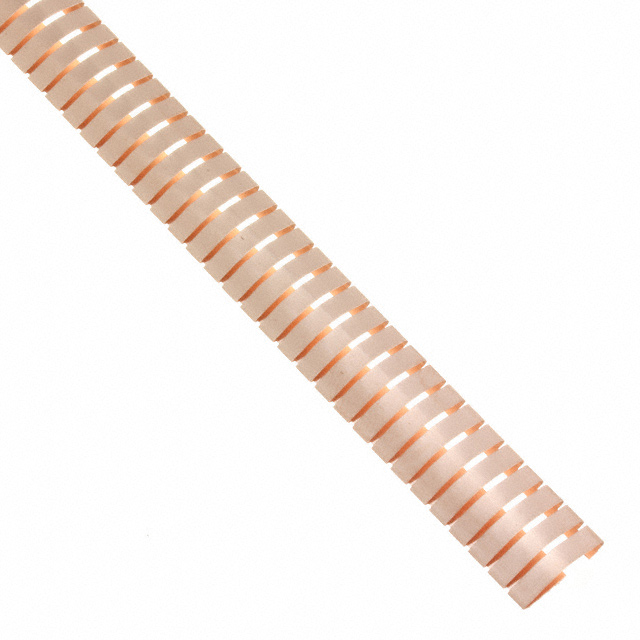

Parker Chomerics 81-02-14274-2000	15.984 in	406 mm	121 C	-40 C	Beryllium Copper	Unplated	Adhesive	0.45 in	11.43 mm	Fingerstock	1.52 mm	0.06 in
Parker Chomerics 81-02-14449-2000	15.984 in	406 mm	121 C	-40 C	Beryllium Copper	Unplated	Adhesive			Fingerstock			3.05 mm	0.12 in	12.7 mm	0.5 in
Parker Chomerics 81-02-14308-2000			121 C	-40 C	Beryllium Copper	Unplated	Adhesive			Fingerstock			5.59 mm	0.22 in			457 mm	17.992 in	0.6 in	15.24 mm
Parker Chomerics 81-02-14306-2000	15.984 in	406 mm	121 C	-40 C	Beryllium Copper	Unplated	Adhesive			Fingerstock	3.33 mm	0.131 "			9.4 mm	0.37 in
Parker Chomerics 81-02-11818-2000	15.984 in	406 mm	121 C	-40 C	Beryllium Copper	Unplated	Adhesive	0.228 in		Fingerstock			0.76 mm	0.03 in	5.8 mm
