PD-1378 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

NEMA 23 SMART STEPPER MOTOR 12 TO 52V, 55NCM, 256 ΜSTEPS, S-SHAPED AND SIXPOINT RAMP CONTROLLER WITH CAN INTERFACE, CLOSED LOOP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Rotor Inertia	Accuracy	Step Angle	Voltage - Rated	Steps per Revolution	Coil Type	NEMA Frame Size	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Features	Coil Resistance	NEMA Frame Size	Usage	For Use With/Related Products	Accessory Type

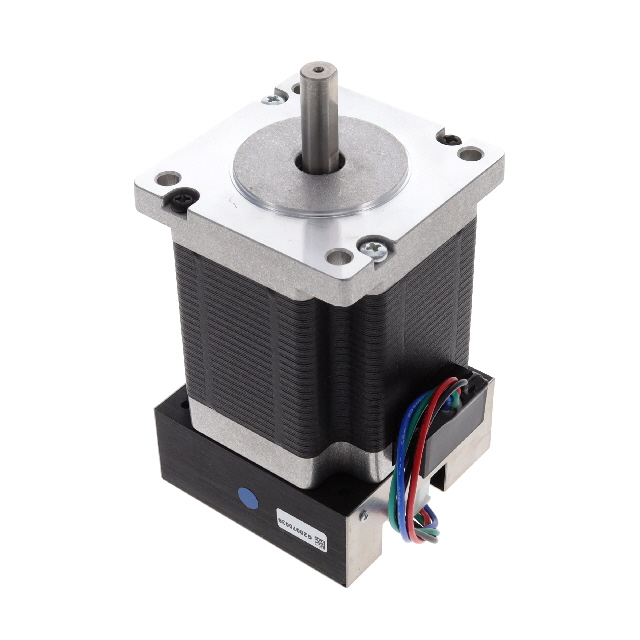

Analog Devices Inc./Maxim Integrated PD60-3-1378-CANOPEN	50 °C	-20 ░C	570 gcm˛	5 % 5 %	1.8 1.8 °	3.36 VDC	200	Bipolar	24	2.8 A	2.362 in	60 mm	60 mm	2.362 in	Hybrid	2100 mNm	297.4 oz-in	Flatted Shaft Integrated Controller	1.2 Ohms
Analog Devices Inc./Maxim Integrated PD86-3-1378-CANOPEN	50 °C	-20 ░C	2700 gcm²	5 %	1.8 °	2.56 VDC	200	Bipolar	24	5.5 Amps	2.362 in	60 mm	60 mm	2.362 in	Hybrid	7000 mNm	991.28 oz-in	Flatted Shaft Integrated Controller	0.45 Ohms

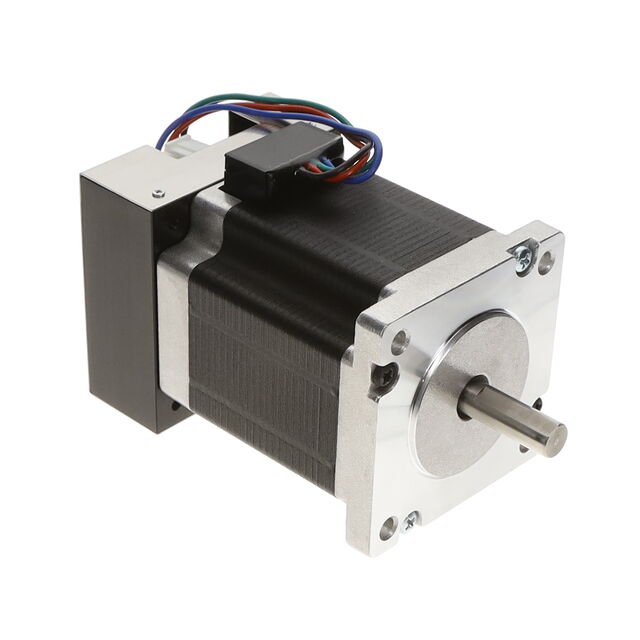

Analog Devices Inc./Maxim Integrated PD60-3-1378-TMCL	50 °C	-20 ░C	570 gcm˛	5 %	1.8 °	3.36 VDC	200	Bipolar	24	2.8 A	2.362 in	60 mm	60 mm	2.362 in	Hybrid	2100 mNm	297.4 oz-in	Flatted Shaft Integrated Controller	1.2 Ohms
Analog Devices Inc./Maxim Integrated PD57-2-1378-CANOPEN	50 °C	-20 ░C	275 gcm˛	5 %	1.8 °	2.3 V	200	Bipolar		2.8 A	2.362 in	60 mm	60 mm	2.362 in	Hybrid	1010 mNm	143.03 oz-in	Flatted Shaft Integrated Controller	0.8 Ohms	23
Analog Devices Inc./Maxim Integrated PD57-1-1378-CANOPEN	50 °C	-20 ░C		5 %	1.8 °	2 VDC	200	Bipolar		2.8 A	2.362 in	60 mm	60 mm	2.362 in	Hybrid	550 mNm	77.89 oz-in	Flatted Shaft Integrated Controller		23
Analog Devices Inc./Maxim Integrated PD60-4H-1378-TMCL	50 °C	-20 ░C	840 gcm²	5 %	1.8 °	2.1 V	200	Bipolar	24	9 A	2.362 in	60 mm	60 mm	2.362 in	Hybrid	3000 mNm	424.93 oz-in	Flatted Shaft Integrated Controller	0.15 Ohms
Analog Devices Inc./Maxim Integrated PD57-2-1378-TMCL	50 °C	-20 ░C		5 %	1.8 °	2.3 V	200	Bipolar		2.8 A	2.362 in	60 mm	60 mm	2.362 in	Hybrid	1010 mNm	143.03 oz-in	Flatted Shaft Integrated Controller	0.8 Ohms	23
Analog Devices Inc./Maxim Integrated PD60-4-1378-TMCL	50 °C	-20 ░C		5 %	1.8 °	4.17 VDC	200	Bipolar	24	2.8 A	2.362 in	60 mm	60 mm	2.362 in	Hybrid	3100 mNm	438.99 oz-in	Flatted Shaft Integrated Controller	1.5 Ohms
Analog Devices Inc./Maxim Integrated PD86-3-1378-TMCL	50 °C	-20 ░C		5 %	1.8 °	2.56 VDC	200	Bipolar	24	5.5 Amps	2.362 in	60 mm	60 mm	2.362 in	Hybrid	7000 mNm	991.28 oz-in	Flatted Shaft Integrated Controller	0.45 Ohms
Analog Devices Inc./Maxim Integrated PD-1378-CABLE																					Motor	PDxx-1378 Series	Cable Assembly
