AD5611 Series
2.7 V to 5.5 V, <100 μA, 10-BitnanoDAC, SPI Interface in LFCSP and SC70
Manufacturer: Analog Devices
Catalog
2.7 V to 5.5 V, <100 μA, 10-BitnanoDAC, SPI Interface in LFCSP and SC70
Key Features

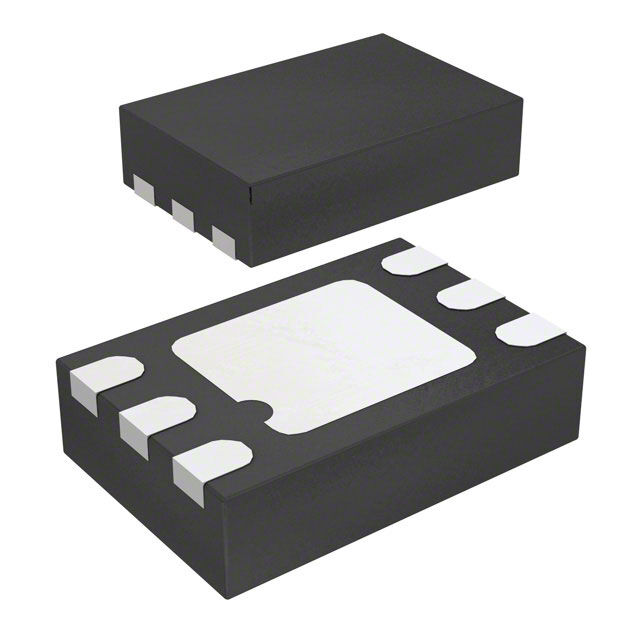

• 6-lead SC70 and LFCSP packages
• Micropower operation: 100 μA maximum at 5 V
• Power-down typically to 0.2 μA at 3 V
• 2.7 V to 5.5 V power supply
• Guaranteed monotonic by design
• Power-on reset to 0 V with brownout detection
• 3 power-down functions
• Low power serial interface with Schmitt-triggered inputs
• On-chip output buffer amplifier, rail-to-rail operation
• SYNCinterrupt facility
• Minimized zero-code error
• AD5601 buffered 8-bit DACB version: ±0.5 LSB INL
• B version: ±0.5 LSB INL
• AD5611 buffered 10-bit DACB version: ±0.5 LSB INLA version: ±4 LSB INL
• B version: ±0.5 LSB INL
• A version: ±4 LSB INL
• AD5621 buffered 12-bit DACB version: ±1 LSB INLA version: ±6 LSB INL
• B version: ±1 LSB INL
• A version: ±6 LSB INL
Description
AI
TheAD5601/AD5611/AD5621, members of thenanoDAC®family, are single, 8-/10-/12-bit, buffered voltage output DACs that operate from a single 2.7 V to 5.5 V supply, consuming typically 75 μA at 5 V. The parts come in tiny LFCSP and SC70 packages. Their on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The AD5601/AD5611/AD5621 utilize a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards.The reference for the AD5601/AD5611/AD5621 is derived from the power supply inputs and, therefore, gives the widest dynamic output range. The parts incorporate a power-on reset circuit, which ensures that the DAC output powers up to 0 V and remains there until a valid write to the device takes place.The AD5601/AD5611/AD5621 contain a power-down feature that reduces current consumption to typically 0.2 μA at 3 V.They also provide software-selectable output loads while in power-down mode. The parts are put into power-down mode over the serial interface.The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equip-ment. The combination of small package and low power makes thesenanoDAC devices ideal for level-setting requirements, such as generating bias or control voltages in space-constrained and power-sensitive applications.Product HighlightsAvailable in 6-lead LFCSP and SC70 packages.Low power, single-supply operation. The AD5601/ AD5611/AD5621 operate from a single 2.7 V to 5.5 V supply with a maximum current consumption of 100 μA, making them ideal for battery-powered applications.The on-chip output buffer amplifier allows the output of the DAC to swing rail-to-rail with a typical slew rate of 0.5 V/μs.Reference is derived from the power supply.High speed serial interface with clock speeds up to 30 MHz. Designed for very low power consumption. The interface powers up only during a write cycle.Power-down capability. When powered down, the DAC typically consumes 0.2 μA at 3 V. Power-on reset with brownout detection.ApplicationsVoltage level settingPortable battery-powered instrumentsDigital gain and offset adjustmentProgrammable voltage and current sourcesProgrammable attenuators
