MCP14A0302 Series

3 A MOSFET Gate Driver with Low Threshold Input and Enable

Catalog

3 A MOSFET Gate Driver with Low Threshold Input and Enable

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [custom]	Package / Case	Channel Type	Gate Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	Logic Voltage - VIL, VIH	Input Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Driven Configuration	Package / Case [y]	Package / Case [x]
Microchip Technology MCP14A0302-E/MS	Surface Mount	18 V	4.5 V	8-MSOP	-40 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Single	IGBT	12 ns	13 ns	1	0.8 V 2 V	Inverting Non-Inverting	3 A	3 A	High-Side Low-Side
Microchip Technology MCP14A0302T-E/SN	Surface Mount	18 V	4.5 V	8-SOIC	-40 °C	125 °C	8-SOIC			Single	IGBT	12 ns	13 ns	1	0.8 V 2 V	Inverting Non-Inverting	3 A	3 A	High-Side Low-Side	3.9 mm	0.154 in
Microchip Technology MCP14A0302T-E/MS	Surface Mount	18 V	4.5 V	8-MSOP	-40 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Single	IGBT	12 ns	13 ns	1	0.8 V 2 V	Inverting Non-Inverting	3 A	3 A	High-Side Low-Side
Microchip Technology MCP14A0302T-E/KBA	Surface Mount Wettable Flank	18 V	4.5 V	8-WDFN (2x2)	-40 °C	125 °C	8-WFDFN Exposed Pad			Single	IGBT	12 ns	13 ns	1	0.8 V 2 V	Inverting Non-Inverting	3 A	3 A	High-Side Low-Side

Catalog

3 A MOSFET Gate Driver with Low Threshold Input and Enable

Key Features

- High Peak Output Current: 3 A (typical)

- Voltage supply range 4.5 V to 18 V

- Low Shot-Through/Cross-Conduction Current in Output Stage

- 1800 pF in 13 ns (typical)

- Short Delay Times: tD1D2

- Low Supply Current: 360 µA (typical)

- Low-Voltage Threshold Input and Enable with Hysteresis

- Latch-Up Protected: Withstands 500 mA Reverse Current

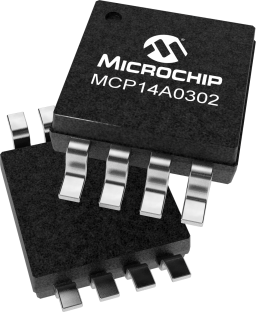

- 8-Lead MSOP

- 8-Lead SOIC

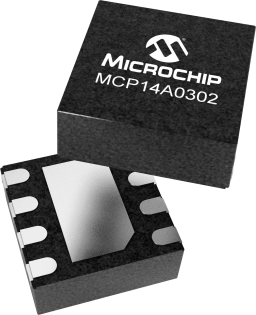

- 8-Lead 2 x 2 WDFN

Description

The MCP14A0301/2 devices are high-speed MOSFET drivers that are capable of providing up to 3 A of peak current while operating from a single 4.5 V to 18 V supply. The inverting (MCP14A0301) or non-inverting (MCP14A0302) single channel output is directly controlled from either TTL or CMOS (2 V to 18 V) logic. These devices also feature low shoot-through current, matched rise and fall times, and short propagation delays which make them ideal for high switching frequency applications. The MCP14A0301/2 family of devices offer enhanced control with Enable functionality. The active-high Enable pin can be driven low to drive the output of the MCP14A0301/2 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pin floating for standard operation. Additionally, the MCP14A0301/2 devices feature separate ground pins (AGND and GND), allowing greater noise isolation between the level-sensitive Input/Enable pins and the fast, high-current transitions of the push-pull output stage. These devices are highly latch-up resistant under any condition within their power and voltage ratings. They can accept up to 500 mA of reverse current being forced back into their outputs without damage or logic upset. All terminals are fully protected against electrostatic discharge (ESD) up to 1.75 kV (HBM) and 200 V (MM).
