APTGT200DA60T3AG-Module Series

600V/Three level inverter/IGBT modules

Catalog

600V/Three level inverter/IGBT modules

Part	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Input	IGBT Type	Package / Case	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	Current - Collector (Ic) (Max)	Voltage - Collector Emitter Breakdown (Max)
Microchip Technology APTGT200H120G	150 °C	-40 °C	14 nF	280 A	Standard	Trench Field Stop	SP6	890 W	350 µA	SP6	2.1 V	Chassis Mount	1200 V	Full Bridge Inverter

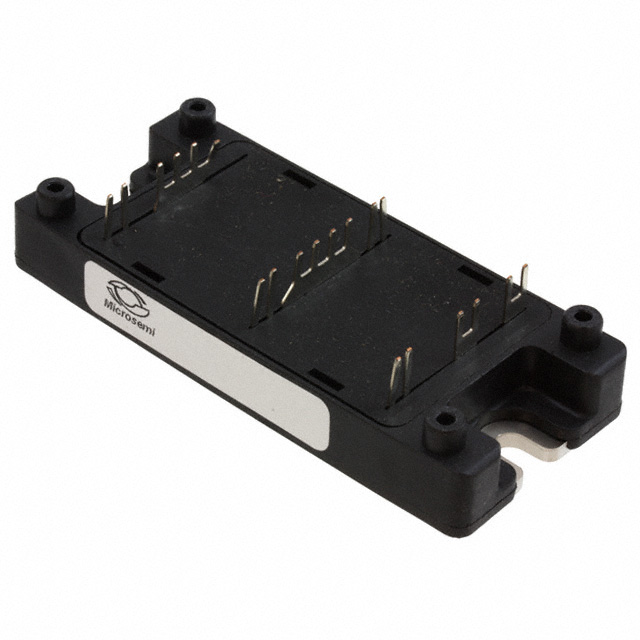

Microchip Technology APTGT200DU60TG	175 °C	-40 C	12.3 nF		Standard	Trench Field Stop	SP4	625 W	250 µA	SP4	1.9 V	Chassis Mount	600 V	Common Source Dual	290 A
Microchip Technology APTGT200H60G	175 °C	-40 C	12.3 nF		Standard	Trench Field Stop	SP6	625 W	250 µA	SP6	1.9 V	Chassis Mount	600 V	Full Bridge Inverter	290 A
Microchip Technology APTGT200DA120D3G	150 °C	-40 °C	14 nF		Standard	Trench Field Stop	D-3 Module	1050 W	6 mA	D3	2.1 V	Chassis Mount	1200 V	Single
Microchip Technology APTGT200SK60T3AG	175 °C	-40 C	12.3 nF		Standard	Trench Field Stop	SP3	750 W	250 µA	SP3	1.9 V	Chassis Mount	600 V	Single	290 A
Microchip Technology APTGT200DA120G	150 °C	-40 °C	14 nF	280 A	Standard	Trench Field Stop	SP6	890 W	350 µA	SP6	2.1 V	Chassis Mount	1200 V	Single
Microchip Technology APTGT200DH120G	150 °C	-40 °C	14 nF	280 A	Standard	Trench Field Stop	SP6	890 W	350 µA	SP6	2.1 V	Chassis Mount	1200 V	Asymmetrical Bridge

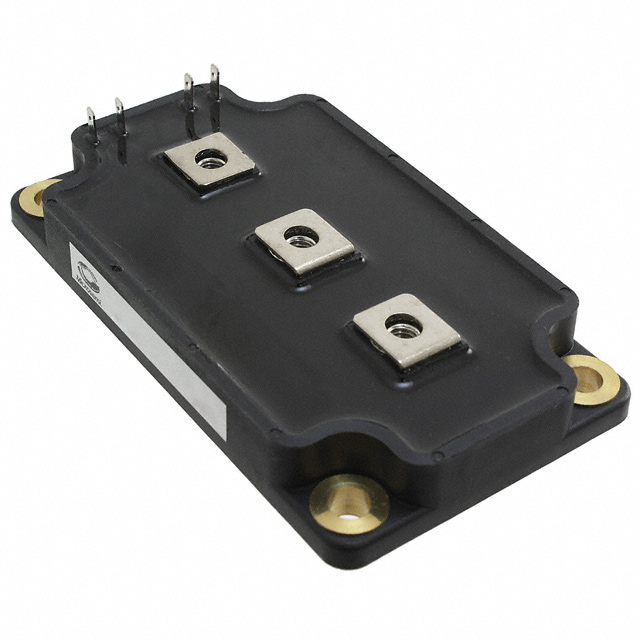

Microchip Technology APTGT200DU120G	150 °C	-40 °C	14 nF	280 A	Standard	Trench Field Stop	SP6	890 W	350 µA	SP6	2.1 V	Chassis Mount	1200 V	Common Source Dual
Microchip Technology APTGT200A170D3G	150 °C	-40 °C	17000 pF	400 A	Standard	Trench Field Stop	D-3 Module	1250 W	5 mA	D3	2.4 V	Chassis Mount		Half Bridge		1700 V

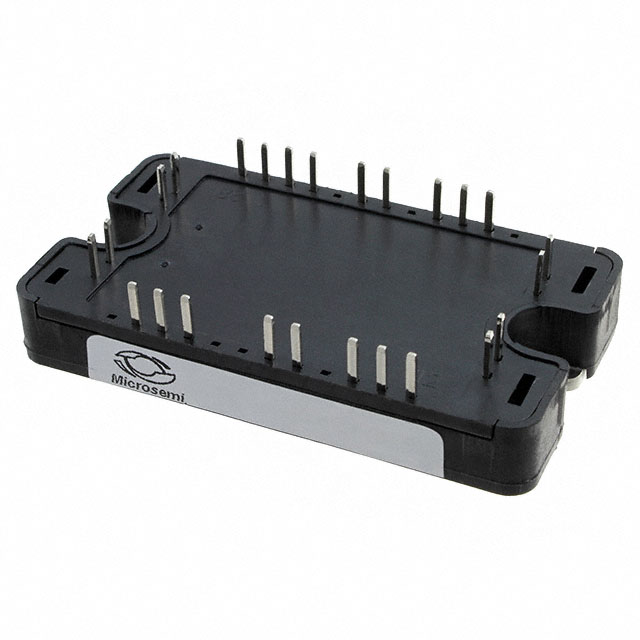

Microchip Technology APTGT200DA60T3AG	175 °C	-40 C	12.3 nF		Standard	Trench Field Stop	SP3	750 W	250 µA	SP3	1.9 V	Chassis Mount	600 V	Single	290 A

Catalog

600V/Three level inverter/IGBT modules

Key Features

• + Configuration: Three level inverter

• + VCES (V): 600

• + VCESat (V): 1.5

• + Current (A) Tc=80C: 200

• + Silicon type: TRENCH 3 IGBT

• + Package: SP6C

Description
