AD9650 Series

16-Bit, 25 MSPS/65 MSPS/80 MSPS/105 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC)

Catalog

16-Bit, 25 MSPS/65 MSPS/80 MSPS/105 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC)

Part	Sampling Rate (Per Second)	Power (Typ) @ Conditions	Number of Bits	Input Range	Number of A/D Converters	Utilized IC / Part	Data Interface	Supplied Contents	Mounting Type	Configuration	Reference Type	Input Type	Number of Inputs	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Supplier Device Package	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Architecture	Ratio - S/H:ADC	Package / Case	Contents
Analog Devices AD9650-80EBZ	80 M	522 mW	16	2.7 Vpp	2	AD9650-80	SPI	Board(s)
Analog Devices AD9650BCPZ-65	65 M		16		2		LVDS - Parallel Parallel		Surface Mount	S/H-ADC	External Internal	Differential	2	85 °C	-40 °C	Simultaneous Sampling	1.9 V	1.7 V	64-LFCSP-VQ (9x9)	1.7 V	1.9 V	Pipelined	1:1	64-VFQFN Exposed Pad CSP
Analog Devices AD9650BCPZRL7-80	80 M		16		2		LVDS - Parallel Parallel		Surface Mount	S/H-ADC	External Internal	Differential	2	85 °C	-40 °C	Simultaneous Sampling	1.9 V	1.7 V	64-LFCSP-VQ (9x9)	1.7 V	1.9 V	Pipelined	1:1	64-VFQFN Exposed Pad CSP
Analog Devices AD9650BCPZ-25	25 M		16		2		LVDS - Parallel Parallel		Surface Mount	S/H-ADC	External Internal	Differential	2	85 °C	-40 °C	Simultaneous Sampling	1.9 V	1.7 V	64-LFCSP-VQ (9x9)	1.7 V	1.9 V	Pipelined	1:1	64-VFQFN Exposed Pad CSP
Analog Devices AD9650USVZ-105EP	105 M		16		2		LVDS - Parallel Parallel		Surface Mount	S/H-ADC	Internal	Differential	2	85 °C	-55 °C	Simultaneous Sampling	1.9 V	1.7 V	80-TQFP-EP (12x12)	1.7 V	1.9 V	Pipelined	1:1	80-TQFP Exposed Pad
Analog Devices AD9650BCPZRL7-25	25 M		16		2		LVDS - Parallel Parallel		Surface Mount	S/H-ADC	External Internal	Differential	2	85 °C	-40 °C	Simultaneous Sampling	1.9 V	1.7 V	64-LFCSP-VQ (9x9)	1.7 V	1.9 V	Pipelined	1:1	64-VFQFN Exposed Pad CSP

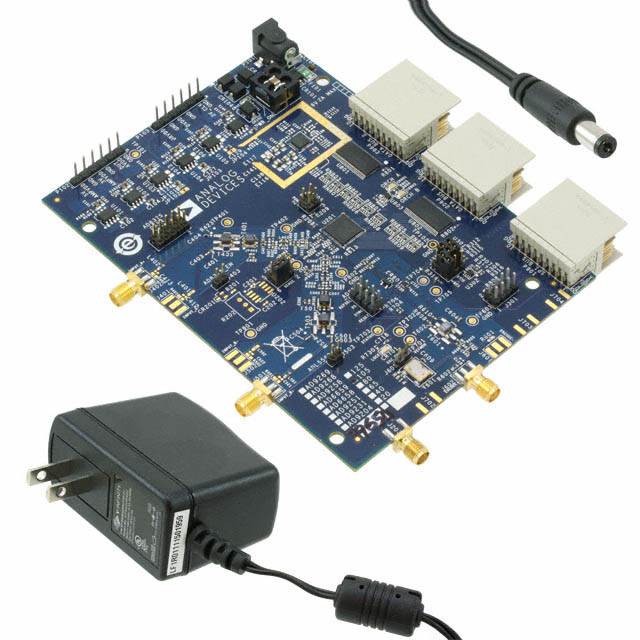

Analog Devices AD9650-105EBZ	105 M	656 mW	16	2.7 Vpp	2	AD9650-105	SPI	Board(s)																	Board(s)

Catalog

16-Bit, 25 MSPS/65 MSPS/80 MSPS/105 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC)

Key Features

• 1.8 V analog supply operation

• 1.8 V CMOS or LVDS output supply

• SNR

• 82 dBFS at 30 MHz input and 105 MSPS data rate

• 83 dBFS at 9.7 MHz input and 25 MSPS data rate

• SFDR

• 90 dBc at 30 MHz input and 105 MSPS data rate

• 95 dBc at 9.7 MHz input and 25 MSPS data rate

• Low power

• 328 mW per channel at 105 MSPS

• 119 mW per channel at 25 MSPS

• Integer 1-to-8 input clock divider

• See data sheet for additional features

• DownloadAD9650-EP data sheet(pdf)

Description

The AD9650 is a dual, 16-bit, 25 MSPS/65 MSPS/80 MSPS/ 105 MSPS analog-to-digital converter (ADC) designed for digitizing high frequency, wide dynamic range signals with input frequencies of up to 300 MHz.The dual ADC core features a multistage, differential pipelined architecture with integrated output error correction logic. Each ADC features wide bandwidth, differential sample-and-hold analog input amplifiers, and shared integrated voltage reference, which eases design considerations. A duty cycle stabilizer is provided to compensate for variations in the ADC clock duty cycle, allowing the converters to maintain excellent performance.The ADC output data can be routed directly to the two external 16-bit output ports or multiplexed on a single 16-bit bus. These outputs can be set to either 1.8 V CMOS or LVDS.Flexible power-down options allow significant power savings, when desired.Programming for setup and control is accomplished using a 3-wire SPI-compatible serial interface.The AD9650 is available in a 64-lead LFCSP and is specified over the industrial temperature range of −40°C to +85°C.PRODUCT HIGHLIGHTSOn-chip dither option for improved SFDR performance with low power analog input.Proprietary differential input that maintains excellent SNR performance for input frequencies up to 300 MHz.Operation from a single 1.8 V supply and a separate digital output driver supply accommodating 1.8 V CMOS or LVDS outputs.Standard serial port interface (SPI) that supports various product features and functions, such as data formatting (offset binary, twos complement, or gray coding), enabling the clock DCS, power-down, and test modes.Pin compatible with the AD9268 and other dual families, AD9269, AD9251, AD9231, and AD9204. This allows a simple migration across resolutions and bandwidth.APPLICATIONSIndustrial instrumentationX-Ray, MRI, and ultrasound equipmentHigh speed pulse acquisitionChemical and spectrum analysisDirect conversion receiversMultimode digital receiversSmart antenna systemsGeneral-purpose software radios
